5–21

Configuring PanelView Terminals

Publication 2711E-6.17 – November 1998

You can view the rack assignments and block transfer file definitions
of the current Remote I/O application file in the Terminal
Configuration screen.

Important:

For information to be displayed on the screen, an
application must be made current (selected).

To display Rack assignments for Remote I/O:

In the Terminal Configuration screen, choose the Terminal
Network Setup button.

The PLC (Device) Type and baud rate at which you are
communicating are displayed at the top of the screen. To change the
baud rate, use the Baud Rate button.

Important:

When you switch the terminal back to Run mode, the
setting you specify here overrides the application file
setting. The baud rate on this screen must match the
network’s speed or the PanelView terminal will not be
able to communicate with the network.

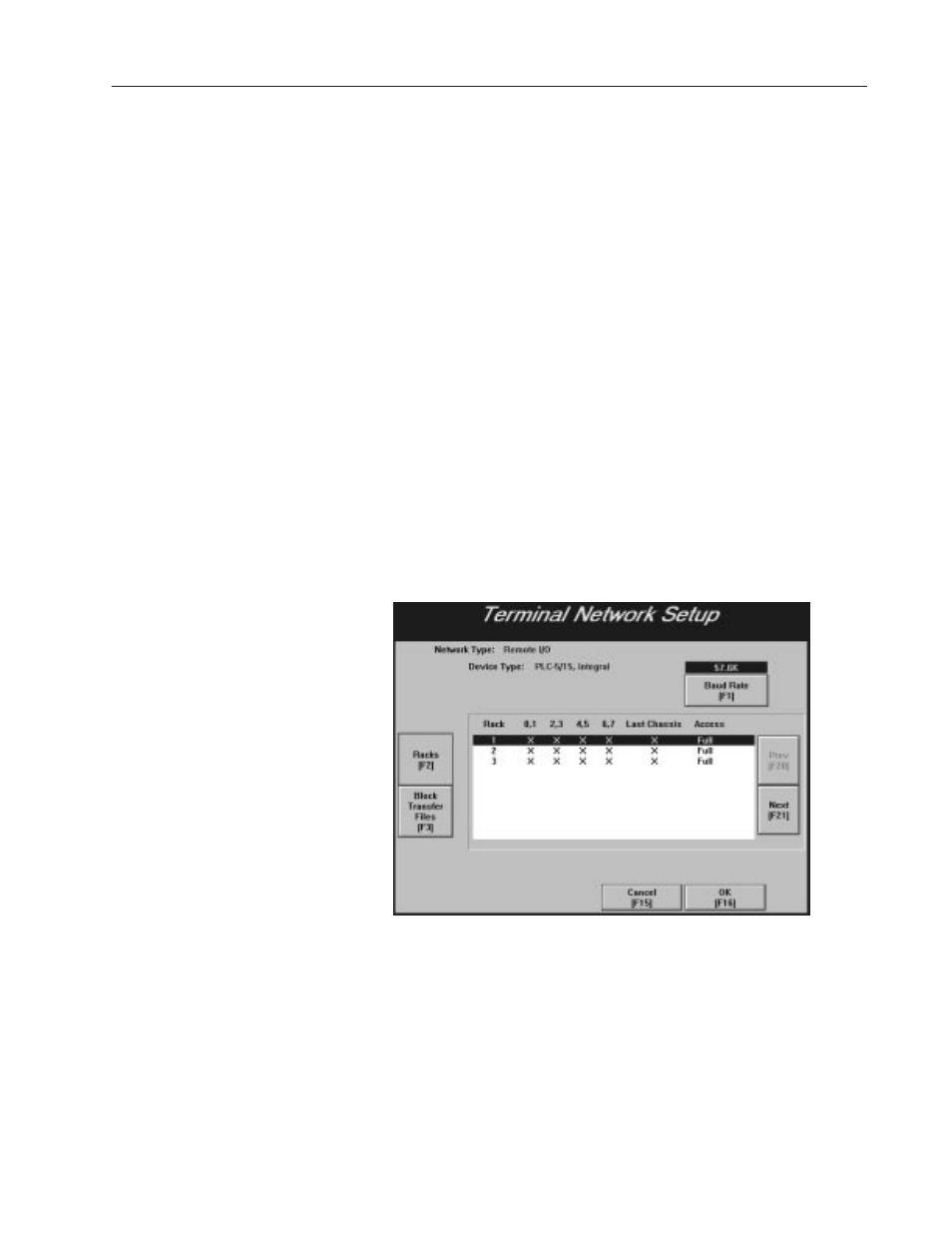

For PanelView keypad terminals, the following Terminal Network
Setup screen appears.

Terminal Network Setup
for Remote I/O
Applications
