5–42 Configuring PanelView Terminals
Publication 2711E-6.17 – November 1998
Note: Choosing the Center Screen button on either the keypad or
touch screen terminal sets the screen alignment to its default center
position.
Aligning o n a Keypad Terminal
To set the screen alignment on a keypad terminal:
1. Use the four arrow keys to center your screen. There are nine
vertical steps (including the home location) and five horizontal.
When you’ve moved as far as you can go, the key turns gray
(disabled).
2. Choose OK to save your adjustments.

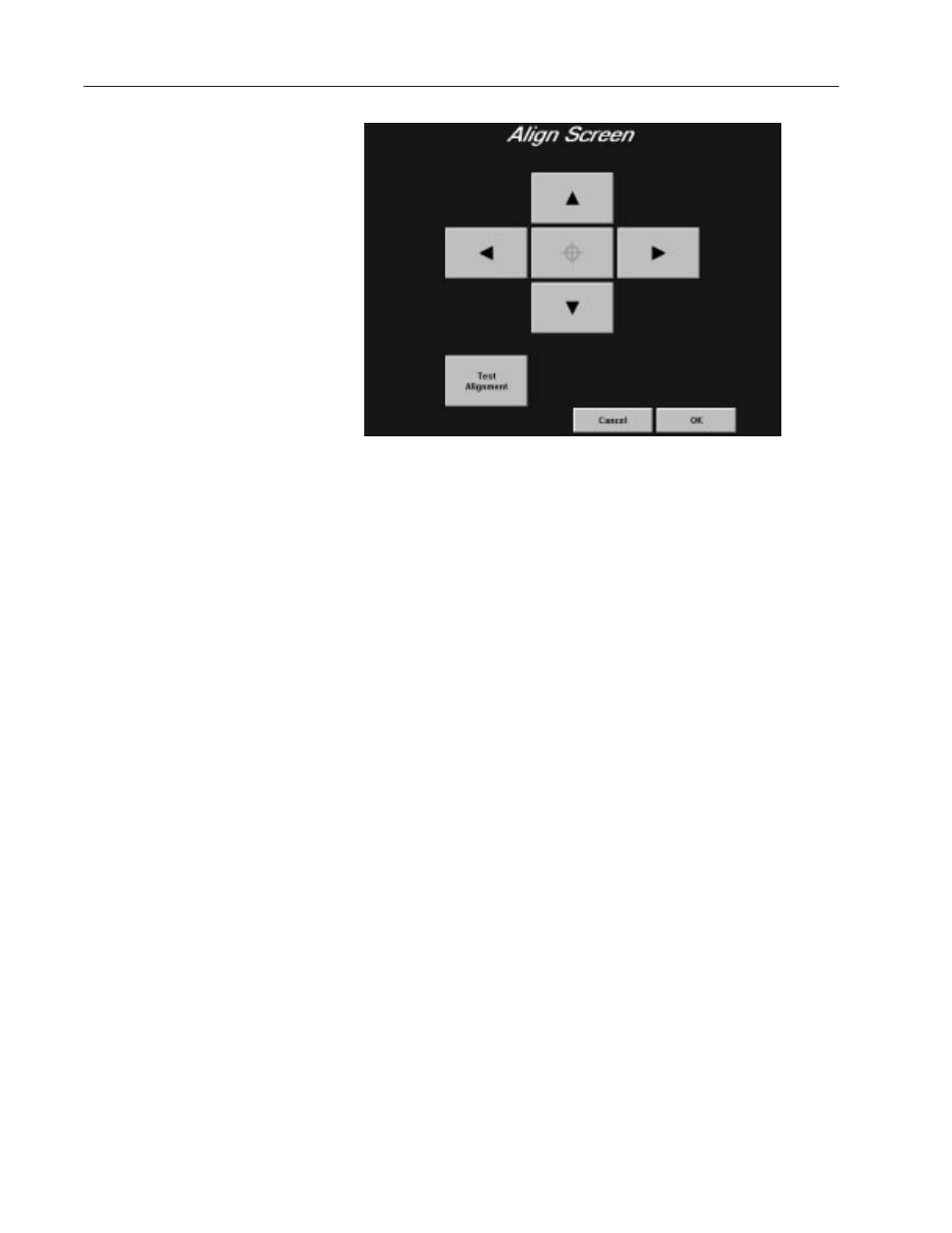

Aligning on a Touch Screen Terminal
Alignment is particularly important with touch screen displays,
especially if the display will be viewed at an angle.
To align the screen on a touch screen terminal:
1. Use the Test Alignment button to line up the on-screen buttons
with the touch cell borders.
2. Use the four corners of the Test Alignment button to see if it is
correctly aligned.
3. Use the arrow keys to center or align the screen.
"
