Rockwell Automation 2711E-xxxx User Manual PanelView 1000e, 1200e 1400e User Manual
Page 132
5–48
Configuring PanelView Terminals
Publication 2711E-6.17 – November 1998

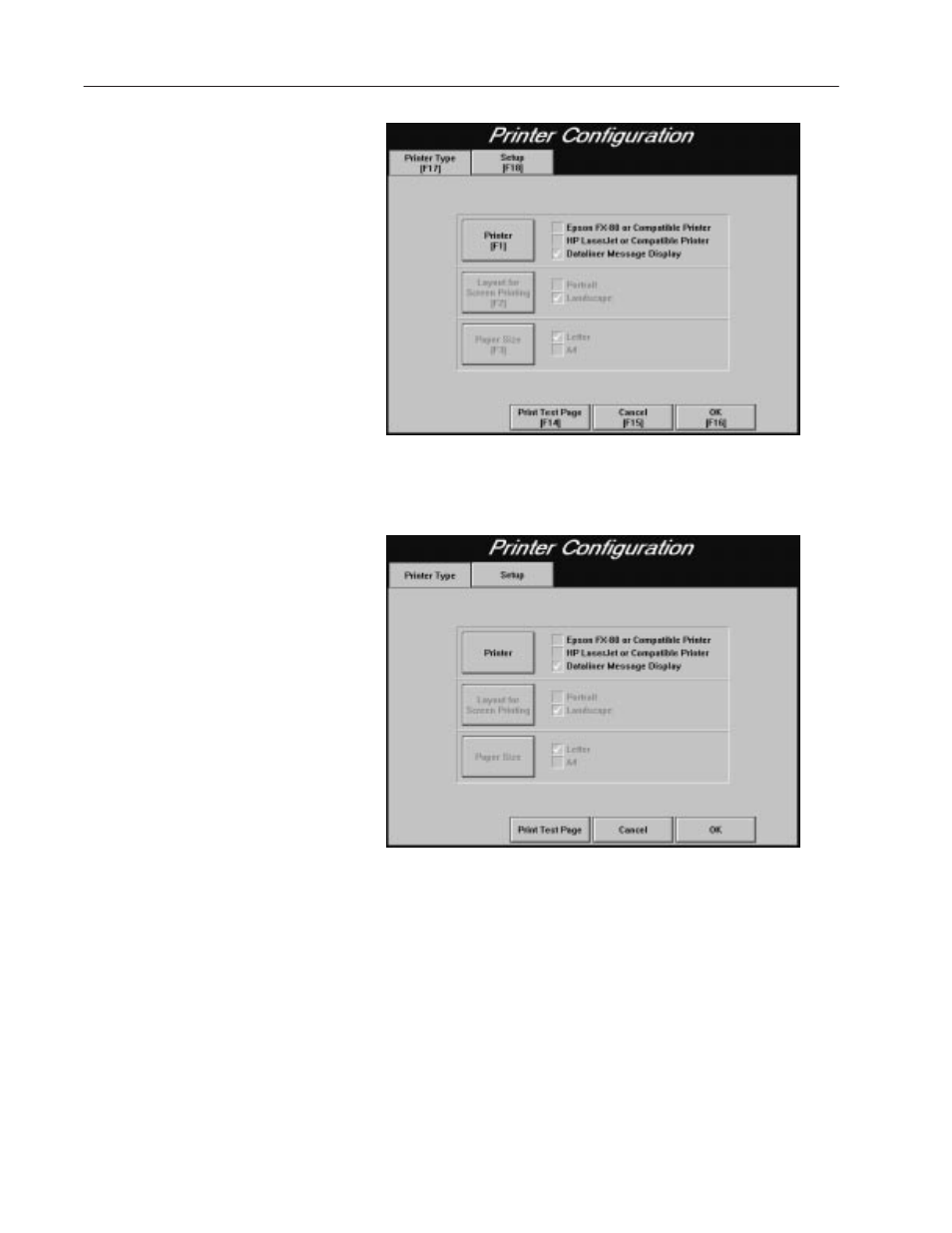

For PanelView touch screen terminals, the following Printer Type
screen appears.
To set up Dataliner communications:
1. In the Printer Configuration screen, select the Setup tab.
For PanelView keypad terminals, the following Setup screen
appears.
