1–6 Introducing the PanelView Terminals
Publication 2711E-6.17 – November 1998
Keypad Terminals
The keypad terminal has:
•
21 user-definable function keys
•
a keypad for entering numeric values
•
up, down, left, and right arrow keys
•
Home, Enter, Select, Cancel, Raise, Lower, and Backspace keys
The user-definable function keys on keypad terminals are labeled at
the factory, but you can create key labels (legends) to suit your
application. The replacement key legends slide in from the rear of
the faceplate. The Legend Kit, included with your shipment,
provides blank card material that accepts most types of markers or
paste-on labels.

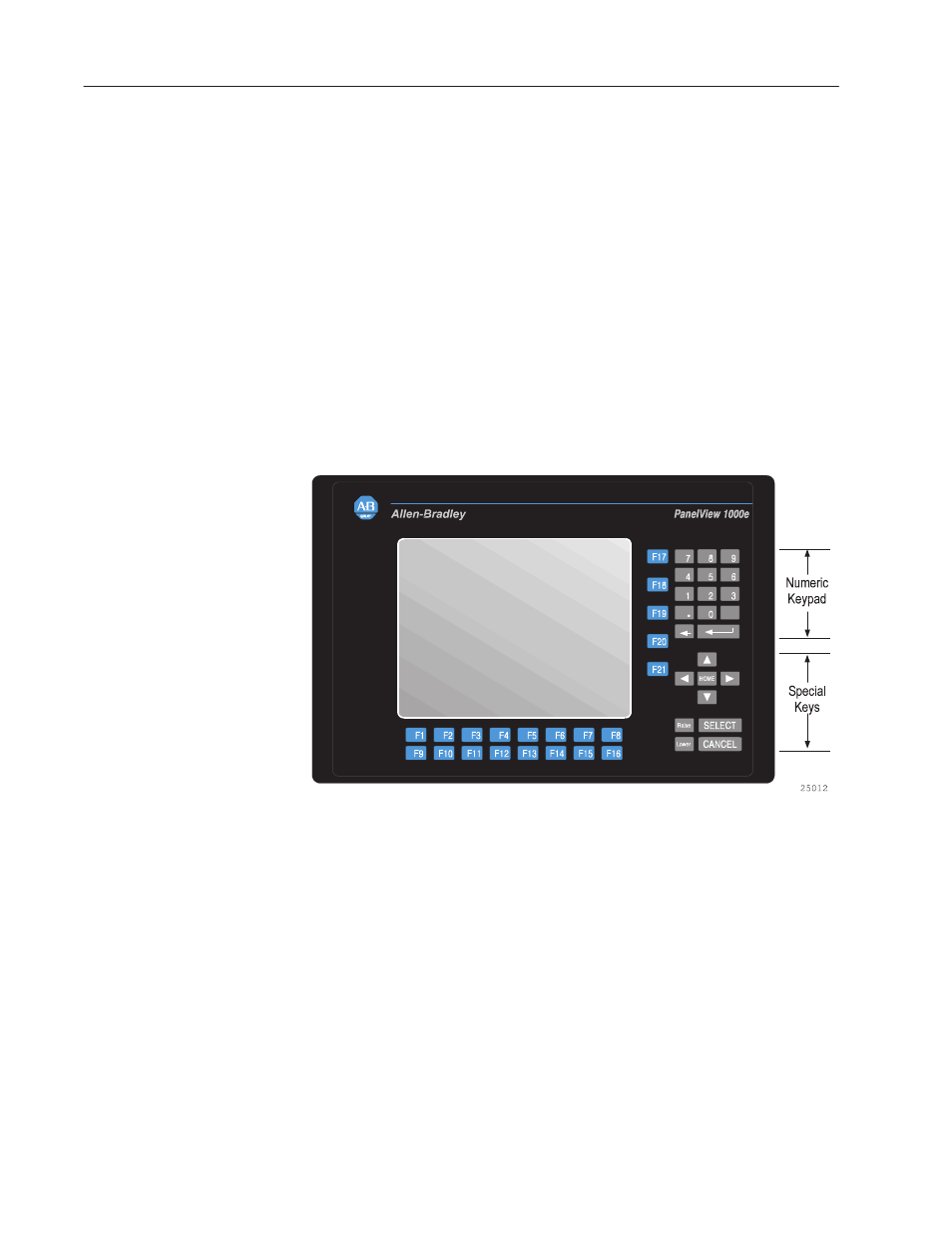

Figure 1.1 1000e, 1200e, and 1400e Keypad Terminals (Front
View)
