Terminal network setup for controlnet applications – Rockwell Automation 2711E-xxxx User Manual PanelView 1000e, 1200e 1400e User Manual
Page 108
5–24
Configuring PanelView Terminals
Publication 2711E-6.17 – November 1998
You can view the terminal settings and PLC information of the
current ControlNet application file.
To view the terminal network settings:
1. In the Terminal Configuration screen, choose the Terminal
Network Setup button.
Important:
For information to be displayed on the screen,
an application must be made current (selected).

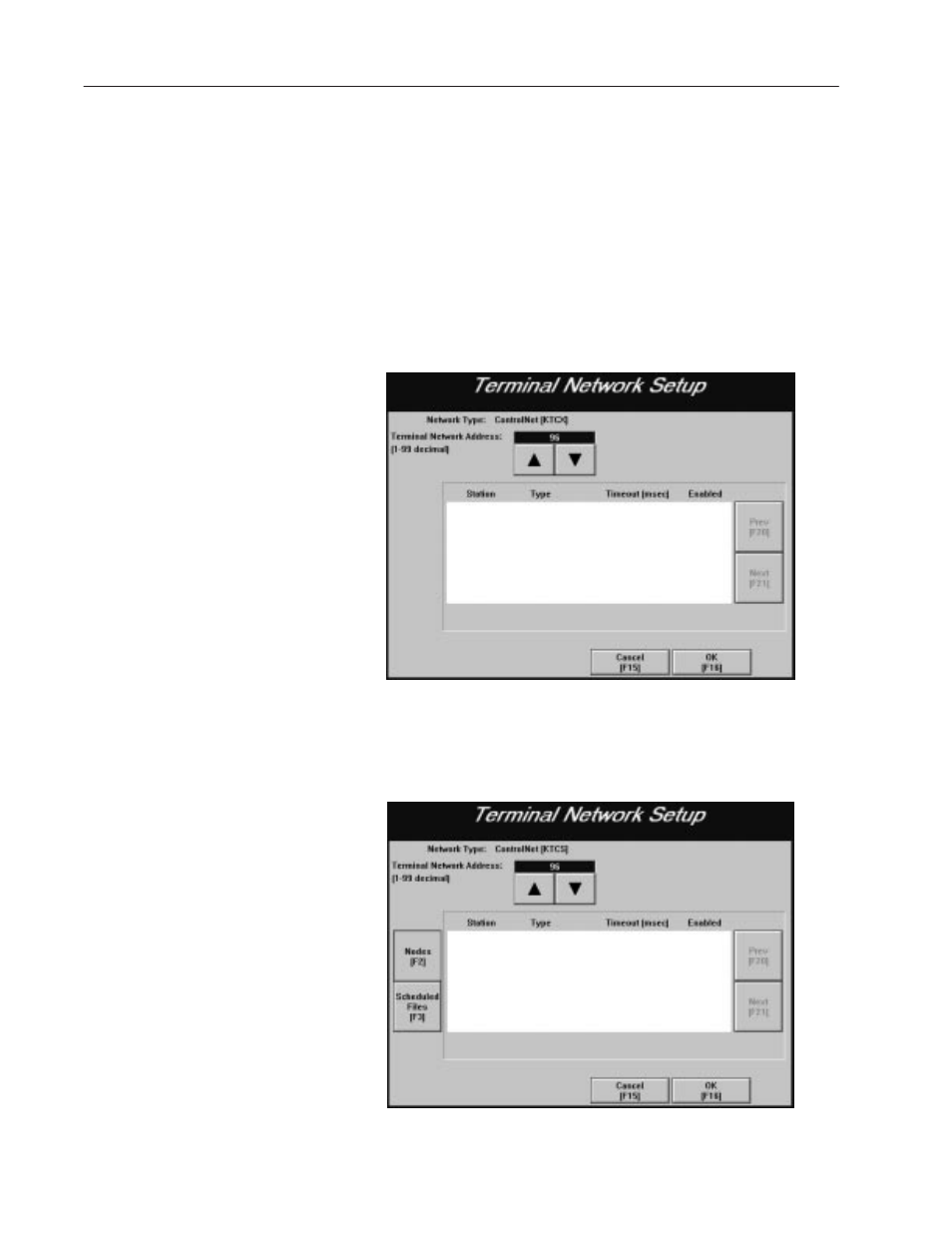

If you have a a ControlNet application with no scheduled tags
assigned, the following screen appears.
If you have a ControlNet application with scheduled tags
assigned, the following screen appears listing the nodes your
application communicates with.
Terminal Network Setup
for ControlNet
Applications
