2–14 Installing PanelView 1000e Terminals
Publication 2711E-6.17 – November 1998
Connecting an External Alarm Relay
The terminal can be used to trigger a remote alarm or warning light
under specific conditions. See Appendix A, Specifications, in this
manual for the voltage range of the alarm relay.
!
ATTENTION: Do not use this relay for control
functions of any kind.
!
ATTENTION: The 1000e external alarm relay is rated
for 24 V ac or dc, and 1.0 ampere. Do not exceed the rated
values. The external alarm relay is different for the 1200e
and 1400e terminals.
To attach a remote alarm or light to the alarm relay connector:
1. Prepare the wires by stripping them of their insulation to a length
of
½ to ¾ of an inch (1 to 2 cm).
2. Turn the screw on the alarm relay plug counter-clockwise to open
the wire slot.
3. Insert the wire fully into its appropriate slot. Figure 2.14 shows
the slots.
4. Turn the screw clockwise until the wire is held firmly in place.
5. Repeat the procedure until all three wires are connected.

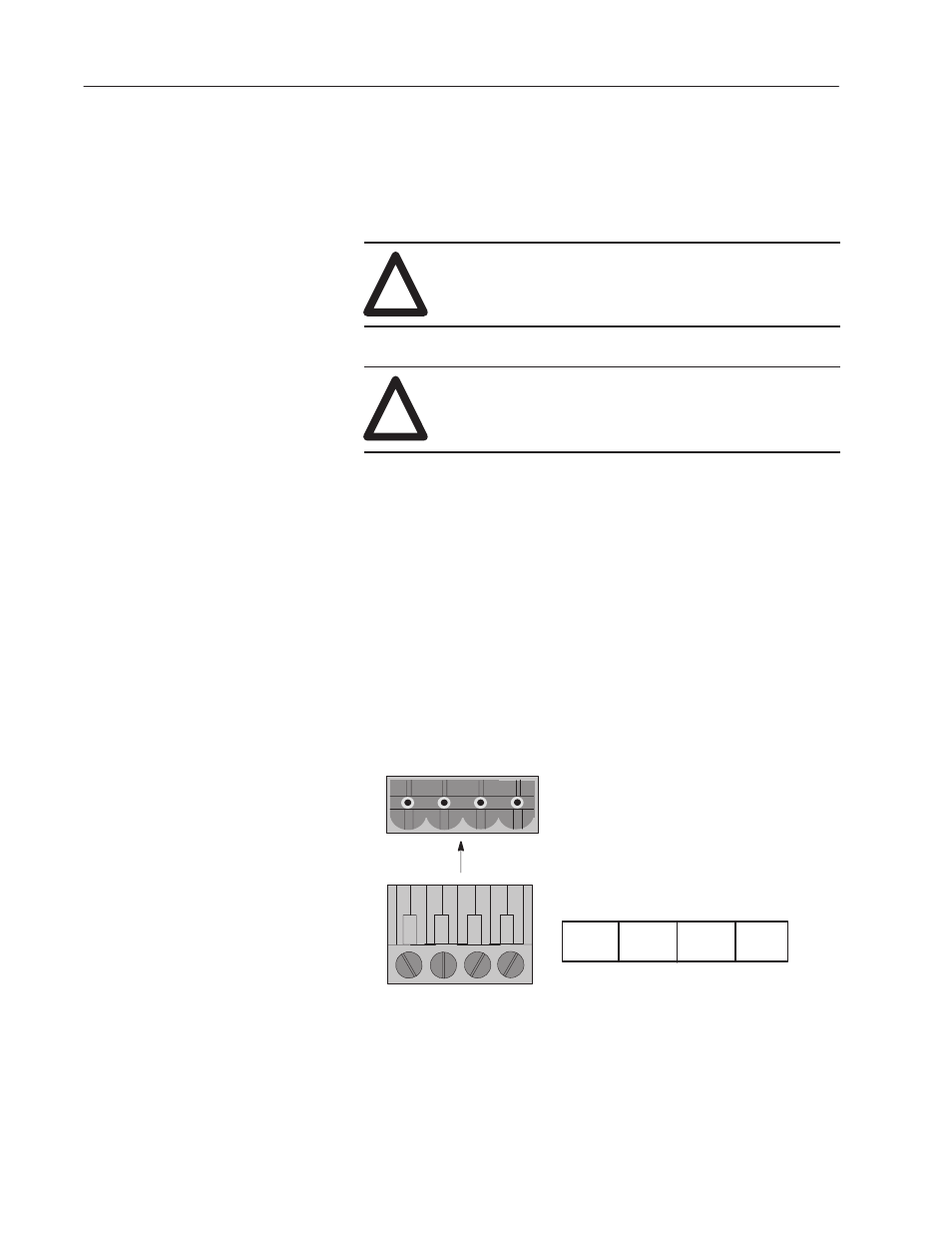

Figure 2.14 The Remote Alarm Relay Connector
20388
On bottom of PanelView 1000e
Terminal
(Refer to Figure 2.1)
Alarm Relay Connector
Normally
Closed
Common
Normally
Open No
Connect
