Printing and displaying alarm messages – Rockwell Automation 2711E-xxxx User Manual PanelView 1000e, 1200e 1400e User Manual
Page 127
5–43
Configuring PanelView Terminals
Publication 2711E-6.17 – November 1998
Printing
The firmware supports printing to an Epson-FX80 or compatible
printer, or an HP LaserJet or compatible printer. The firmware also
determines the best fit for your printout to a page. You can print:
•
application screens
•
alarms displayed in both the Alarm Status and History screens
•
a log of alarm messages
When printing current alarm messages on an HP LaserJet or
compatible printer, the alarm messages are stored in the HP LaserJet
or compatible printer and print only when the buffer is full. If the
power source goes down or if the printer is reset, all stored alarm
messages are lost.
To select printer type and options:
1. In Terminal Configuration, choose the Printer Configuration
button to display the Printer Type screen.

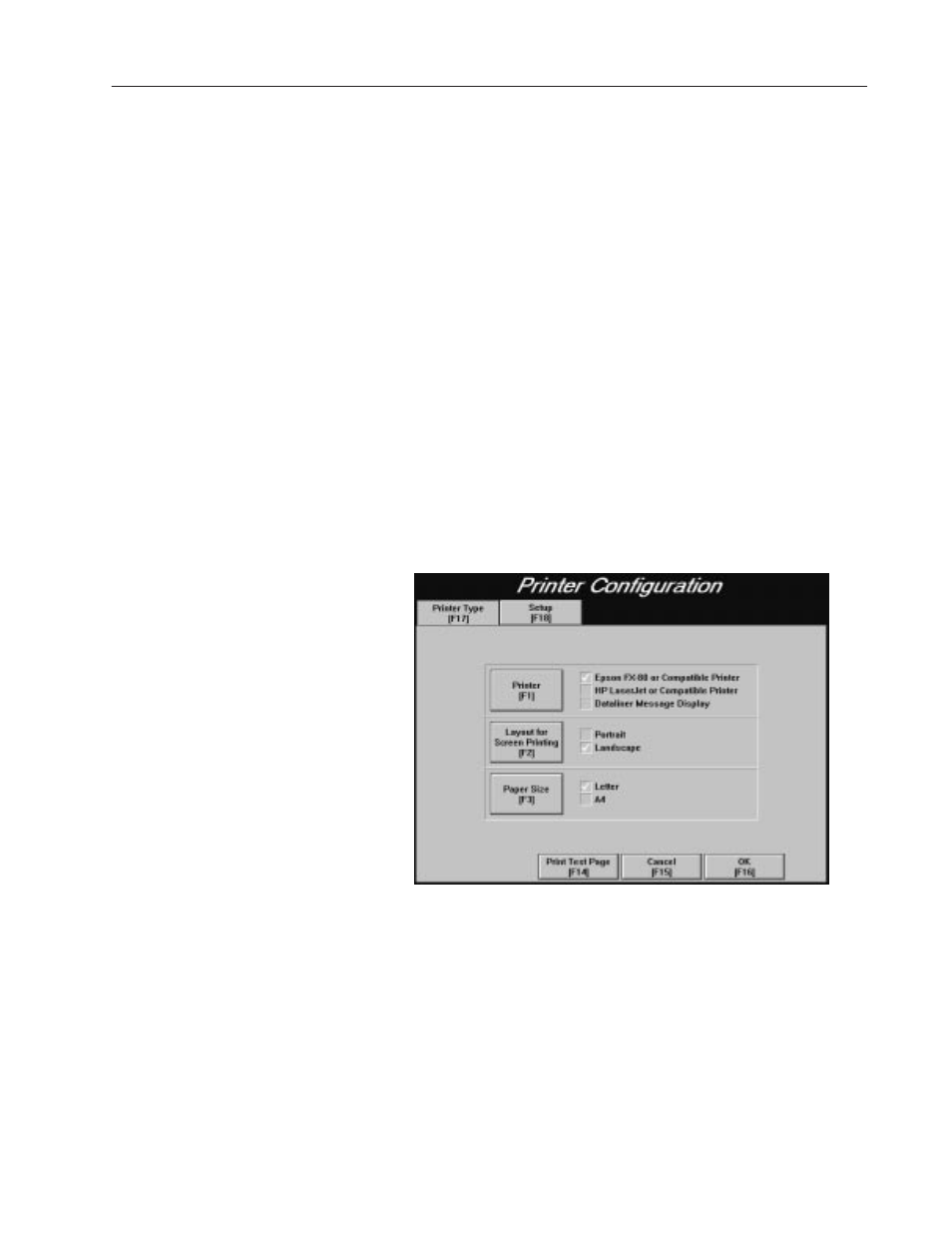

For PanelView keypad terminals, the following Printer Type
screen appears.
Printing and Displaying
Alarm Messages
