Page 44
2–13
Installing PanelView 1000e Terminals
Publication 2711E-6.17 – November 1998

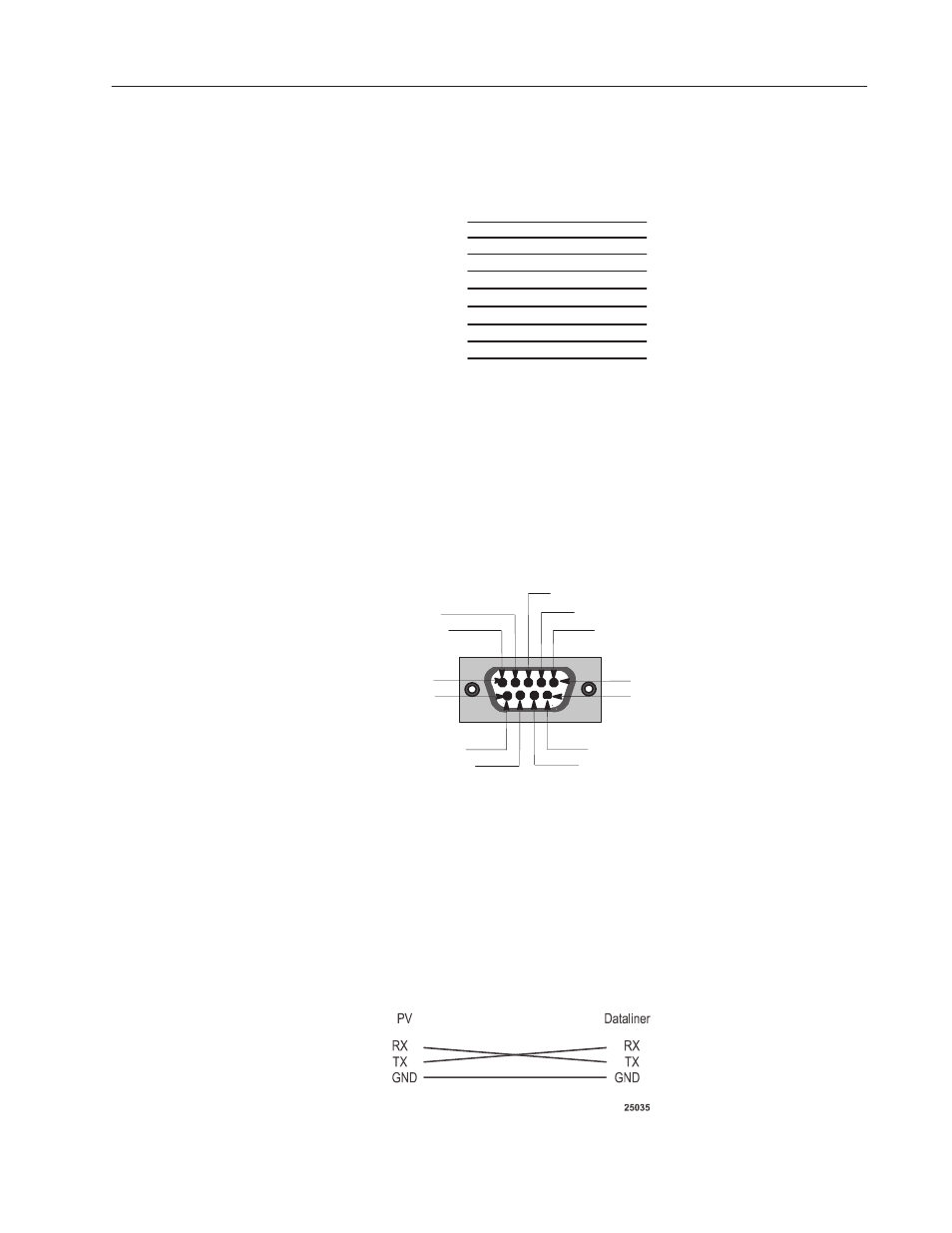

Figure 2.11 RS-232 Port Pinout for Upload/Download Cable
Connection
DCD (1)
TXD (2)
RXD (3)
DSR (4)
Common (5)
DTR (6)
CTS (7)
RTS (8)
N/C (9)
DCD (1)
RXD (2)
TXD (3)
DTR (4)
Common (5)
DSR (6)
RTS (7)
CTS (8)
N/C (9)
PanelView Terminal Cable End
RS-232 Port Pinout
Female, 9-pin
Host Computer Cable End
RS-232 Port Pinout
Female, 9-pin
Connecting the Serial Printer
You will need to construct your own cable to connect a serial printer
to the terminal. Use the pinout shown in Figure 2.12 to construct the
PanelView terminal end of this cable. To construct the printer end of
the cable, consult the user manual for your printer.
Figure 2.12 RS-232 Port Pinout for Serial Printer Cable
Construction
20387
DCD
Common
(ground)
TXD
RXD
RTS
Pin 1
Pin 6
DSR
DTR
CTS
N/C
Pin 5
Pin 9
RS-232 Serial Interface
Female, D-sub, 9-pin connector
Connecting the Dataliner
Figure 2.13 shows the connection between a PanelView RS-232 port
and a Dataliner display device. See the Dataliner manual for more
information.
Figure 2.13 PanelView RS-232 Port and Dataliner
Connection
