4–10 Installing PanelView 1400e Terminals
Publication 2711E-6.17 – November 1998
!
ATTENTION: Be sure to connect the wire to Ground
(GND) on the power connector. Failure to do so could
result in electrical hazard to the operator and damage to
the equipment.
!
ATTENTION: Both the ac supply and the relay output
connectors look the same, so be careful to wire them
correctly. Incorrect power wire connection can damage
the PanelView 1400e terminal.
To connect power to the terminal:
1. Prepare the power wires by stripping the wire of its insulation to a
length of
½ to ¾ of an inch (1 to 2 cm).
2. Turn the screw on the power connector counterclockwise to open
the wire slot.
3. Insert the wire fully into its appropriate slot.
4. Turn the screw clockwise until the wire is held firmly in place.
5. Repeat the procedure until all three power wires are connected.

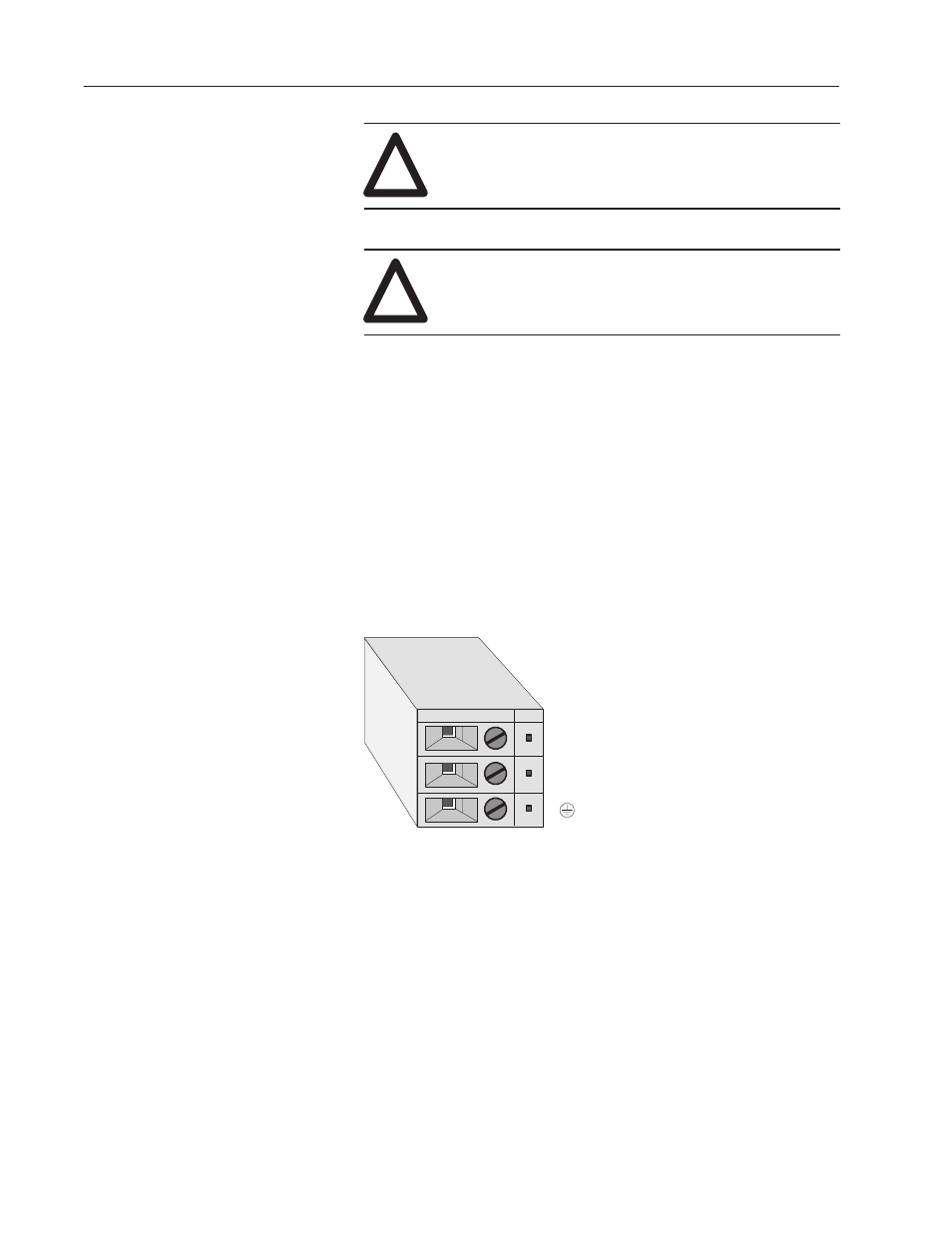

Figure 4.7 The Power Connector
20164
L1 ~ (Vac)
L2N ~ (Vac)
L1
L2
GND
(Protective Earth)
See Figure 4.1 for the location of the power connector on the back of
the terminal.
