5–50 Configuring PanelView Terminals
Publication 2711E-6.17 – November 1998
Use the Terminal Diagnostics screen to perform terminal diagnostics
or to display the number of hours you have been logged on.
To display the Terminal Diagnostics screen:
" Choose the Terminal Diagnostics button or the corresponding
function key.
Performing Terminal Diagnostics

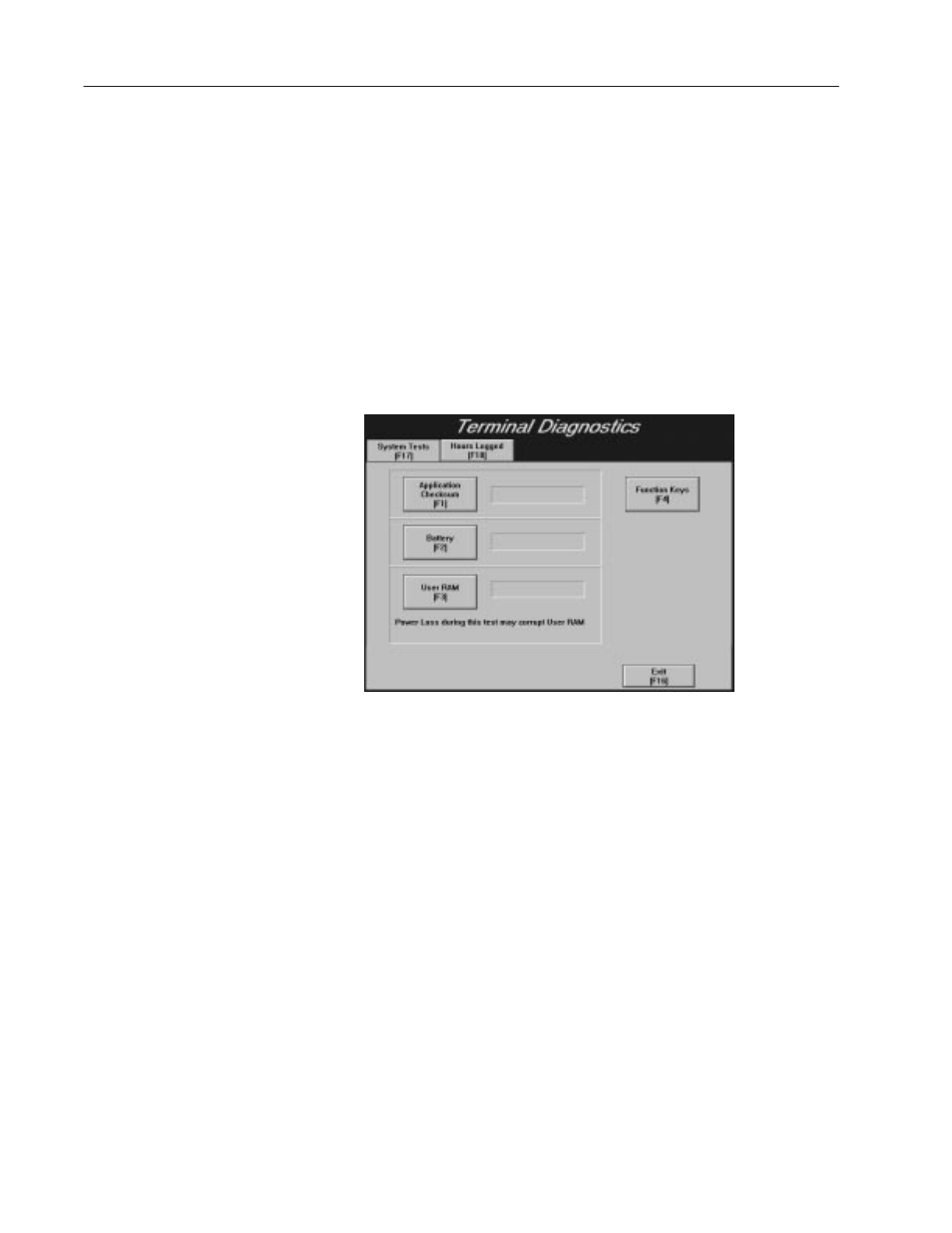

Select the System Tests tab to display the screen below. The screen
shown is for the 1000e and 1400e terminals, which do not have the
Degauss option. Only the 1200e terminal has the Degauss option.
•
Application Checksum
ĊTests the terminal’s current application
file only. A meter displays the results of the checksum test as it
progresses. It reports Pass if no checksum error is detected in the
terminal’s current application file, and Fail if a checksum error
occurs. The checksum test is disabled if there is no current
application.
•
Degauss
ĊDemagnetizes the terminal screen and is specific to
1200e terminals. Your terminal degausses automatically on every
powerup and at midnight.
Terminal Diagnostics
