2–15 Installing PanelView 1000e Terminals
Publication 2711E-6.17 – November 1998
Connecting a Terminal to Your PLC System
Figure 2.15 shows the Remote I/O and DH+ connector on the bottom
of the terminal. This connects the terminal to the host PLC over
Remote I/O or DH+.

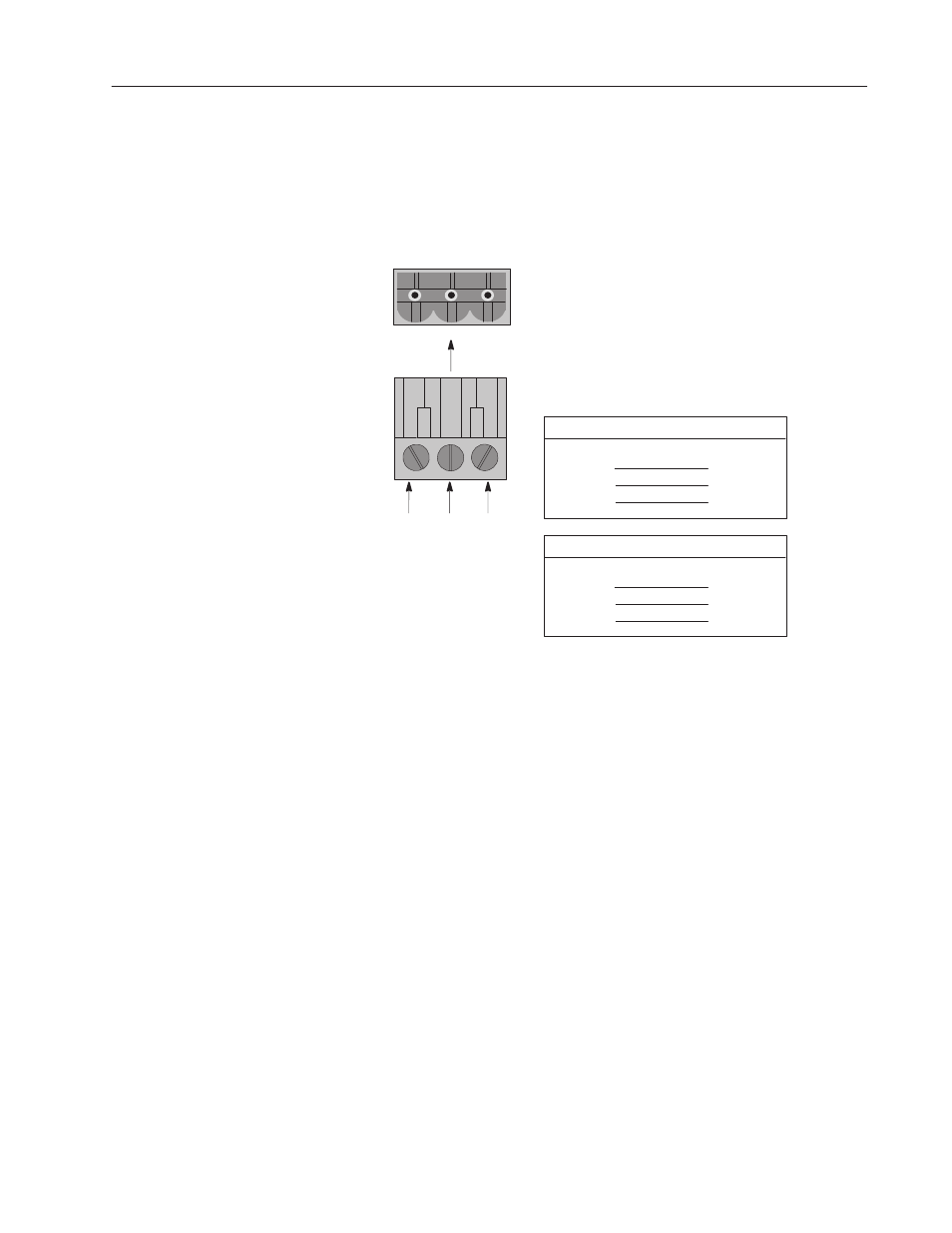

Figure 2.15 Remote I/O and DH+ Connector
20163
1
On bottom of PanelView 1000e Terminal
(Refer to Figure 2.1)
Remote I/O and DH+ Connector
provided with installation kit
2 SHIELD
Remote I/O
PanelView Terminal PLC
Shield Shield
Pin1 Blue Pin 1 Blue
Pin 2 Clear Pin 2 Clear
DH+
PanelView Terminal PLC
Shield Shield
Pin1 Clear Pin 1 Clear
Pin 2 Blue Pin 2 Blue
To connect the PanelView 1000e terminal over Remote I/O:
1. Remove the Remote I/O and DH+ connector plug from the
bottom of the terminal. Figure 2.1 shows its location.
2. Turn terminal screws 2 and 1 on the connector counter-clockwise.
See Figure 2.15 for plug connection locations.
3. Connect the clear wire to plug terminal 2 and the blue wire to
plug terminal 1. Connect shield and shield drain wire to middle
plug terminal. Tighten the screws to secure the wires.
4. Re-insert the plug into the terminal connector.
Note: If the terminal is the last device on the link, connect a
½ watt
terminating resistor across terminals 1 and 2. The value of the
resistor depends on the Remote I/O baud rate:
•
for 57.6 kilobaud and 115.2 kilobaud, use a 150-ohm resistor
(A-B Part Number 740018-29)
•
for 230.4 kilobaud, use an 82-ohm resistor (A-B Part Number
740018-23)
"
