4–6

Installing PanelView 1400e Terminals

Publication 2711E-6.17 – November 1998

Mounting a Stud-Mount Keypad or Touch Screen Terminal in a
Panel or Wall Cutout

Note: Stud-mounted terminals have a NEMA 4X rating.

1. Make the appropriate cutout in the wall or panel, following the

instructions on the template provided with the terminal. Figures
4.4 and 4.5 show the cutout dimensions for the touch screen and
keypad terminals.

2. Place the terminal in the cutout, aligning the studs with the holes

in the rack. Insert the terminal until the gasket material makes full
contact with the wall or panel.

3. Nuts are provided with the terminals. Tighten the nuts to

compress the gasket on the terminal. Built-in spacers prevent the
gasket from being over-compressed. The tightening torque
increases significantly when you reach the correct compression.
At this point, the tightening torque should not exceed
10 inch-pounds.

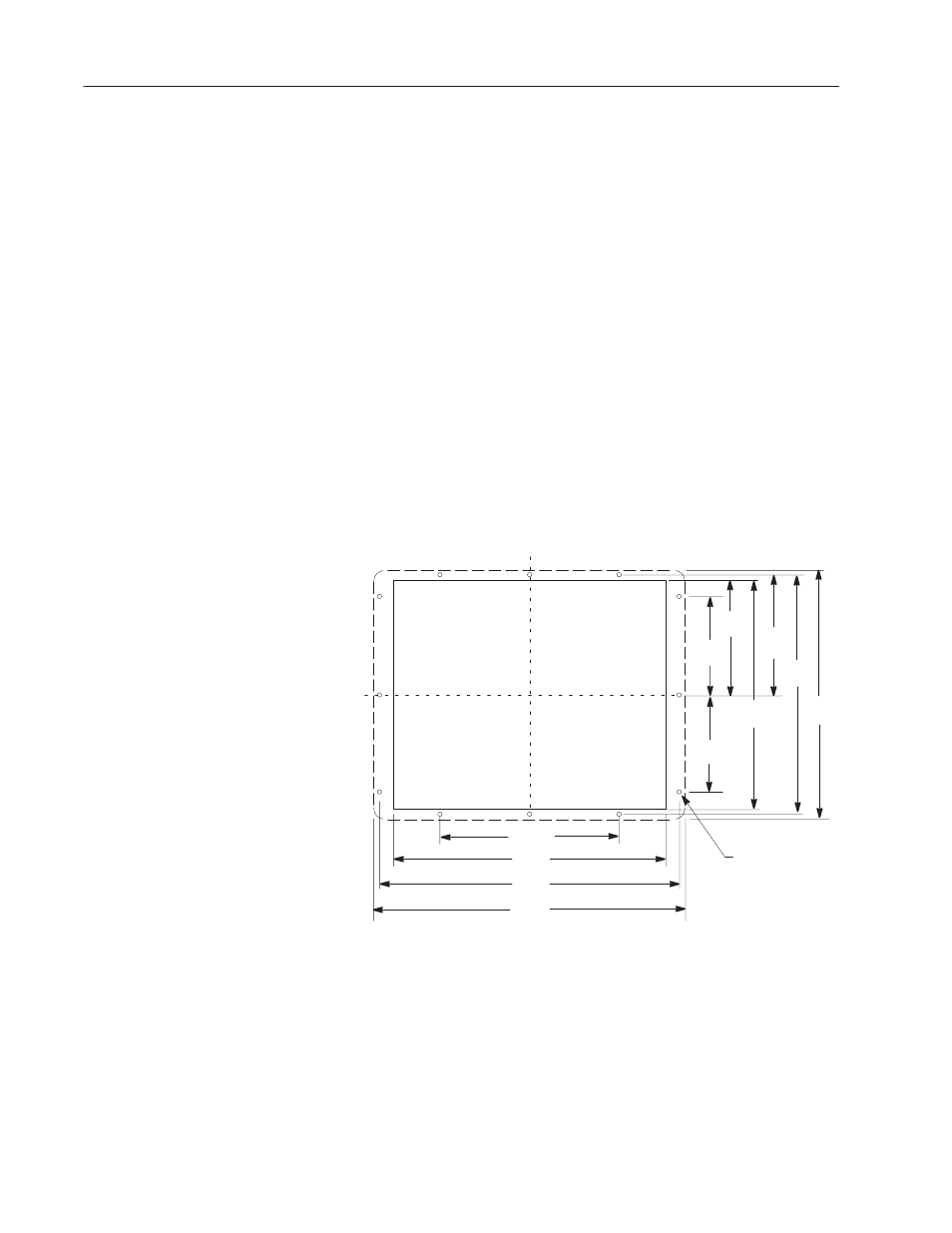

Figure 4.4 Stud-Mount Touch Screen Terminal Panel Cutout

ЙЙЙЙЙЙЙЙЙЙЙЙ

12.850”

(326.4 mm)

PANEL CUT–OUT LAYOUT

5.500”

(139.7 mm)

13.290”

(337.6 mm)

13.970”

(354.8 mm)

∅

7/32” 12 Holes Typ.

Bezel Border Line

6.425”

(163.2 mm)

17.38”

(441.5 mm)

5.500”

(139.7 mm)

16.700”

(424.2 mm)

15.375”

(390.5 mm)

10.000”

(254.0 mm)

6.645”

(168.8 mm)

24720b
