5–49 Configuring PanelView Terminals
Publication 2711E-6.17 – November 1998

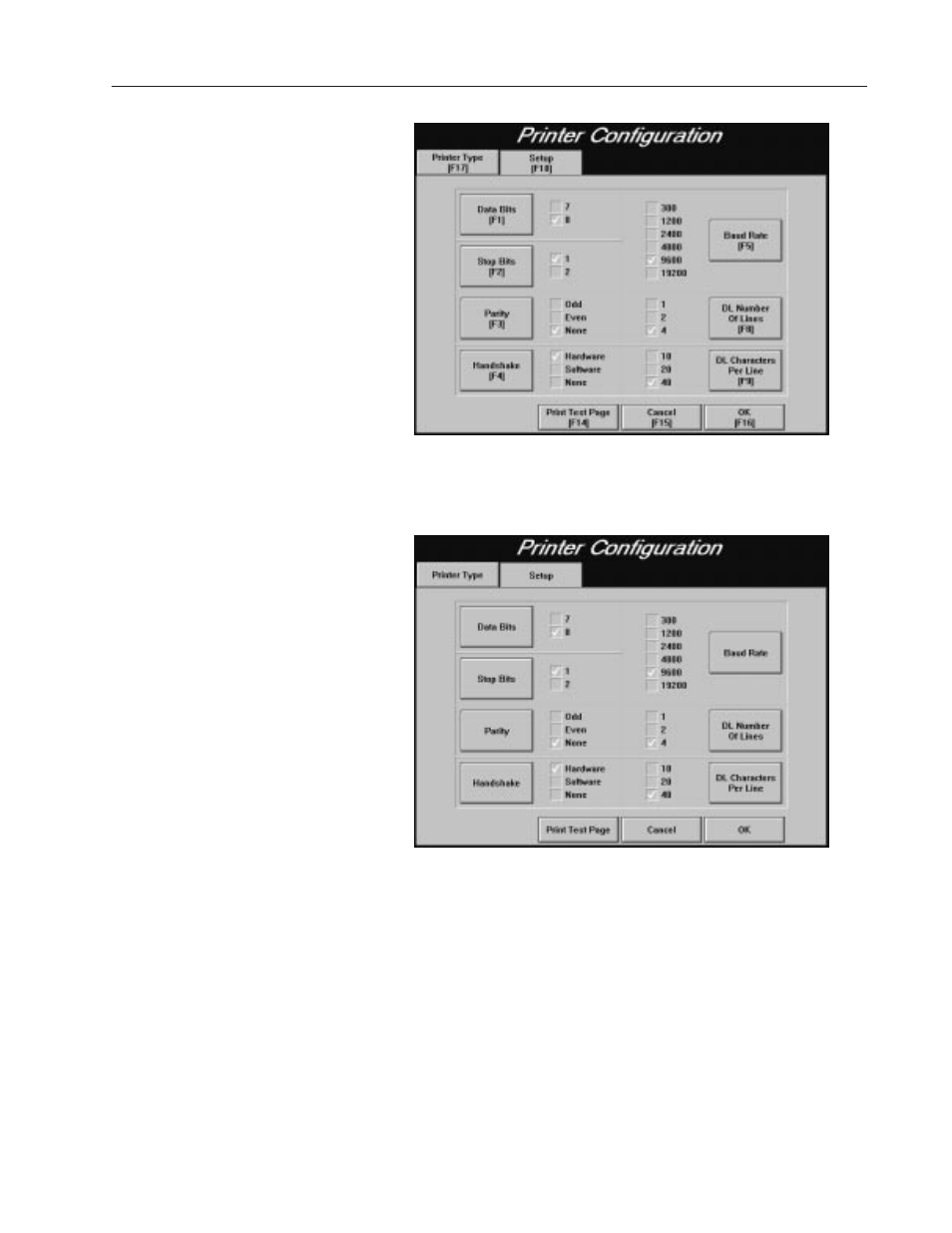

For PanelView touch screen terminals, the following Setup screen
appears.
The recommended settings for the firmware’s Setup screen are:
8 for Data Bits, 1 for Stop Bits, and None for Handshake. For
Parity, Baud Rate, DL Number of Lines, and DL Characters Per
Line, configure the settings in the Setup screen to match the
settings defined for the Dataliner you are using.
2. To change the settings for Data Bits, Stop Bits, Parity, Handshake,
Baud Rate, DL Number of Lines, and DL Characters Per Line,
choose the appropriate button or corresponding function key.
3. When the desired values have been configured, choose OK.
Refer to your Dataliner manual for more information.
