Rockwell Automation 2711E-xxxx User Manual PanelView 1000e, 1200e 1400e User Manual
Page 109

5–25
Configuring PanelView Terminals
Publication 2711E-6.17 – November 1998

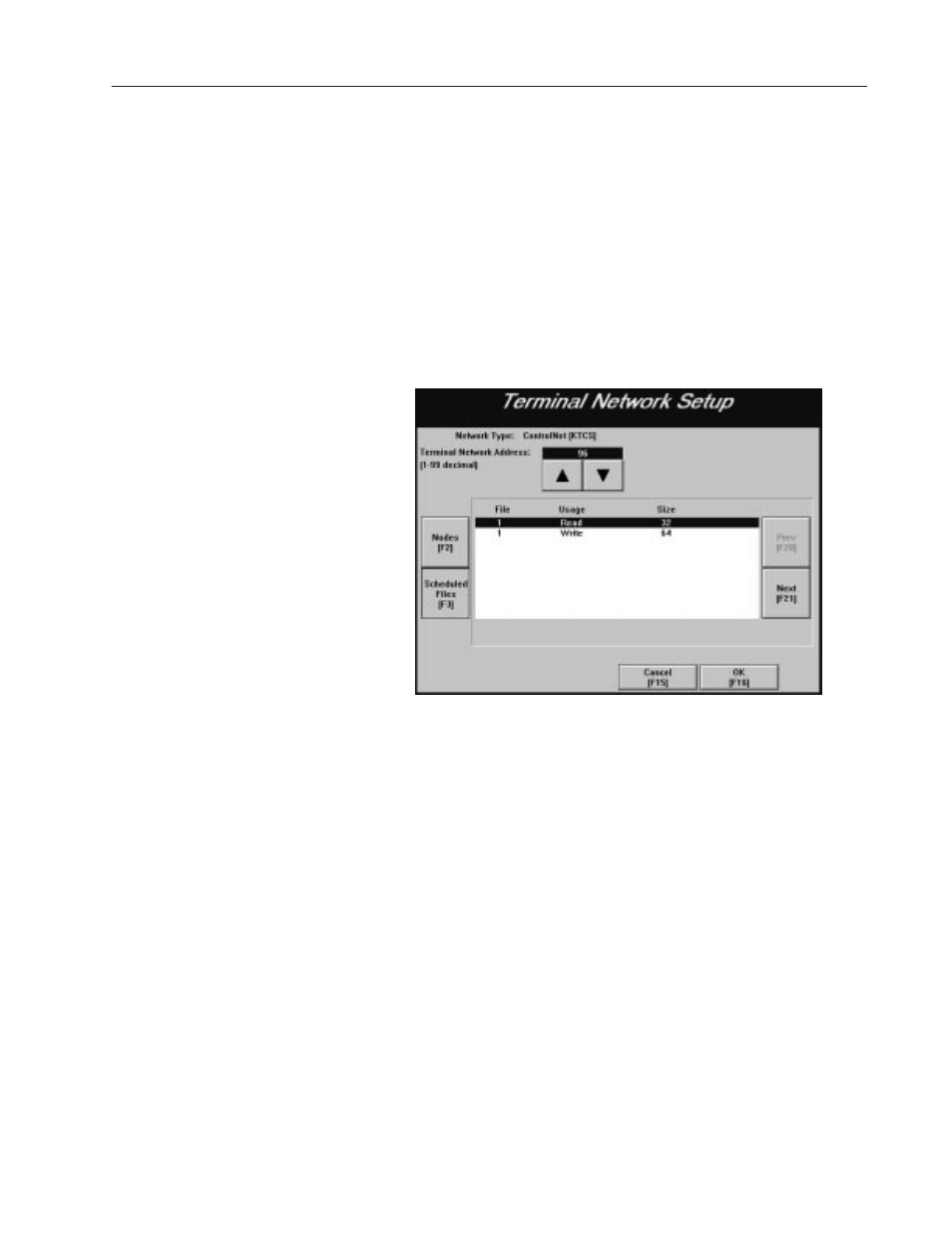

The terminal network address is displayed at the top of the
screen. To change the terminal network address, use the Up and
Down arrows. The baud rate cannot be changed for a ControlNet
network.
All nodes (devices) that your application will communicate with
are listed. The terminal network station address, Device Type, and
Timeout are displayed in the window. Use the Prev and Next
buttons to scroll through the entries in this window.
2. If you have a ControlNet application selected with scheduled tags
assigned, choose the Scheduled Files button to display the
configured scheduled files used by the application.
3. If you have a ControlNet application with scheduled tags
assigned, choose the Nodes button to return to the Terminal
Network Setup screen displaying the ControlNet node
information.
