Adding OAM Loopbacks
1
In the
OAM Loopback Table
window, click
.
The

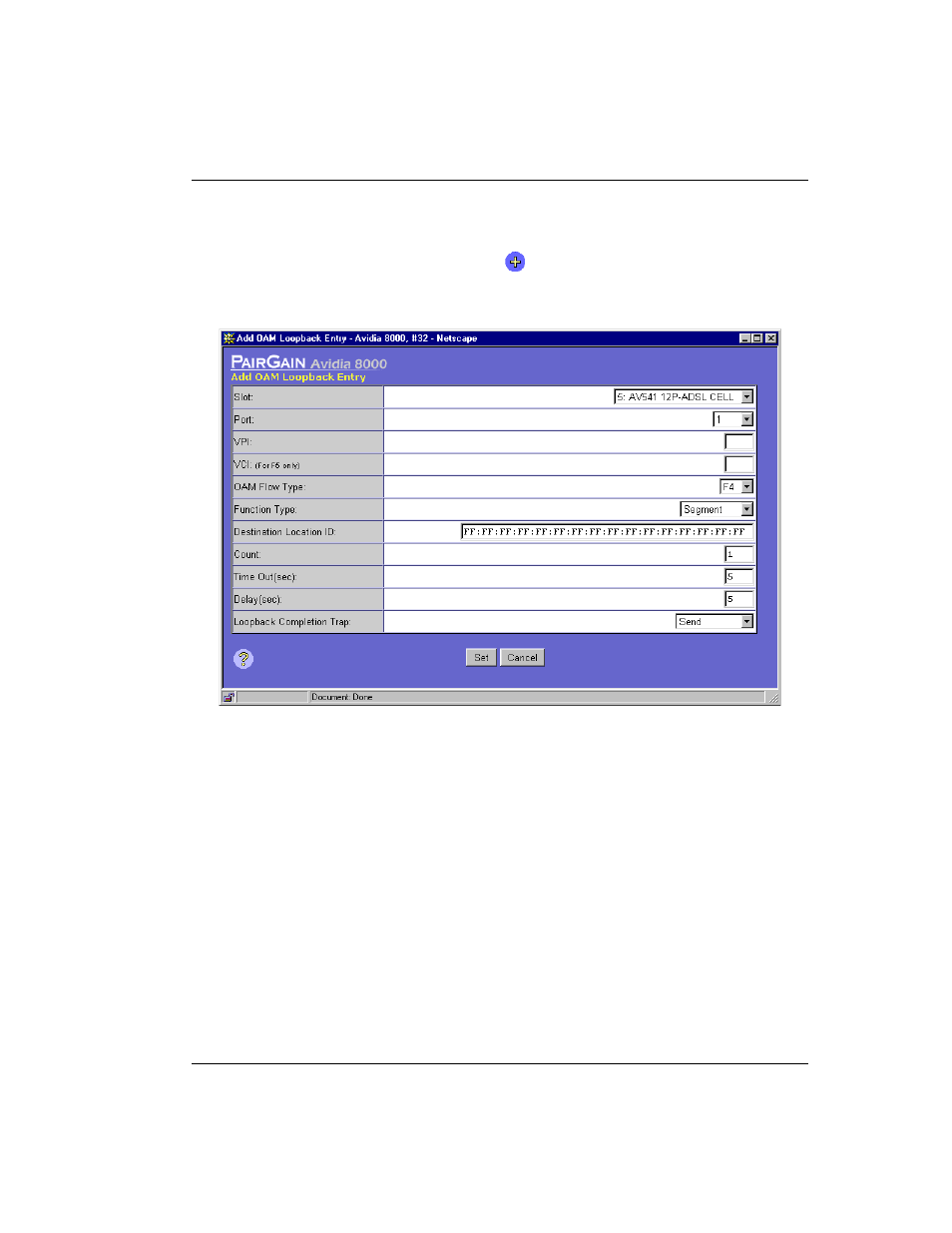

Add OAM Loopback Entry
window displays.
2
In the
Slot
and
Port
boxes, select the slot and port where the loopback will be initiated.
3
In the
OAM Flow Type
box, select either
F4
or
F5
.
OAM F4 flow loopbacks test circuits at a VPC level (requires a VPI only), where OAM F5
flow loopbacks test circuits at a VCC level (requires a VPI and a VCI).
4
In the
VPI
and
VCI
boxes, do one of the following:
•
For an OAM Flow Type F4 loopback, type the VPI for the VPC.
•
For an OAM Flow Type F5 loopback, type the VPI and VCI for the VCC.
