Adding a Frame Relay Configuration
470
Avidia System Configuration and Management User Manual
A
DDING
A
F
RAME
R
ELAY
C
ONFIGURATION
You add a frame relay configuration from the
Frame Relay Interworking Configuration Table
window.
1
In the
Frame Relay Interworking Configuration Table
window, click
. The

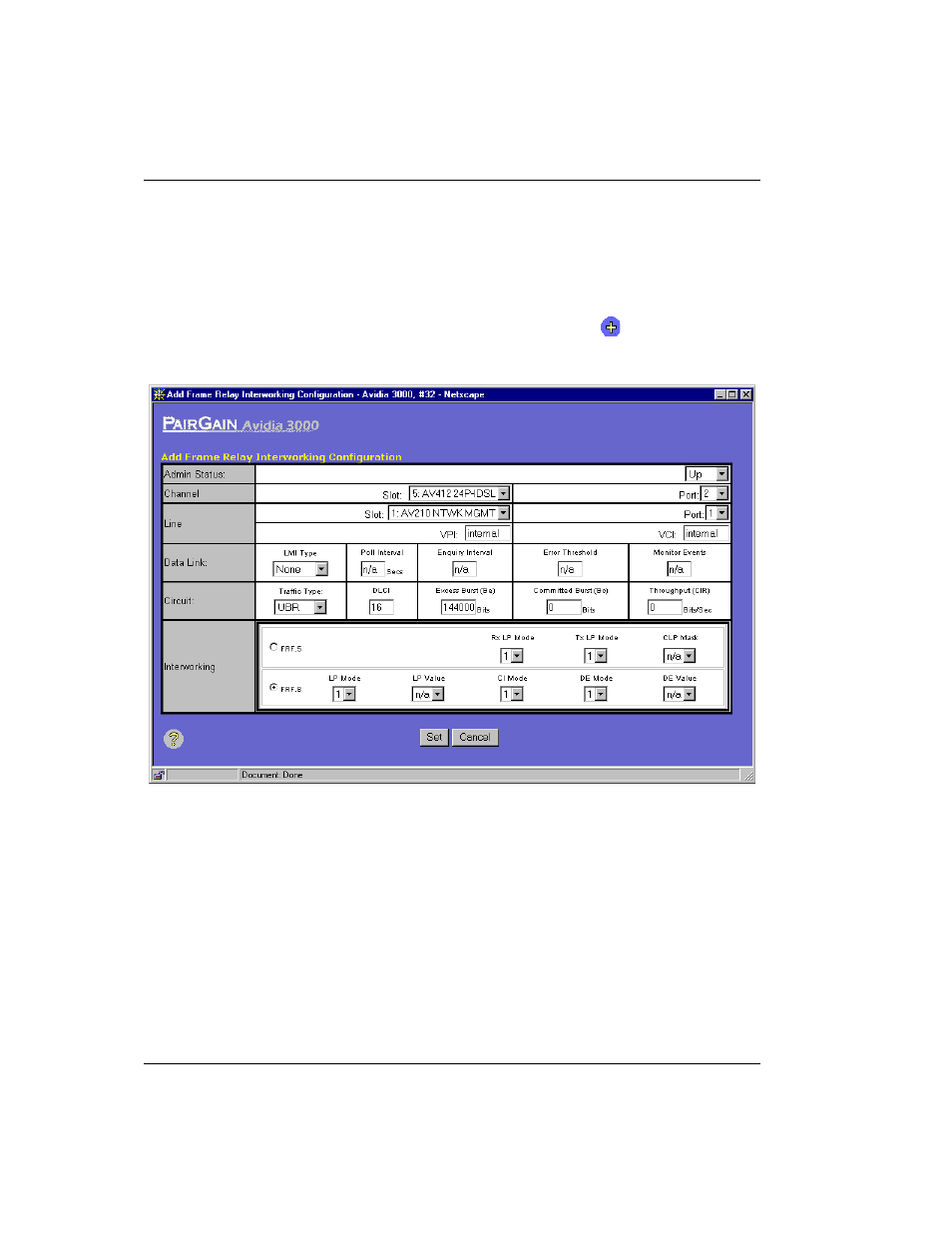

Add Frame Relay
Interworking Configuration
window displays.
2
In the
Admin Status
box, select
Up
to activate the frame channel card and line card
connection or
Down
to deactivate it.
3
In the
Channel
row, do the following:
a
In the
Slot
box, select the slot of the frame card.
b
In the
Port
box, select the port of the frame card.
