Configuring Bridging and Routing Sessions
486 Avidia System Configuration and Management User Manual
C
ONFIGURING
B
RIDGING AND
R
OUTING
S
ESSIONS
You can configure bridging and routing sessions using PVCs that terminate on the management
card (for example, PVCs between ADSL cards and the management card or PVCs between OC3
line cards and the management card). You can configure 96 bridging and routing sessions.
To configure a bridging or routing session, you configure a PVC between a line or channel card
and the management card, then set up the desired service for the session (bridging, routing or
both). The system automatically assigns the management card VPI and VCI for each session. If
you are configuring a session using an SDSL frame card, the system automatically assigns the
SDSL VPI and VCI and configures the session to use VC-MUX_Bridged encapsulation mode.

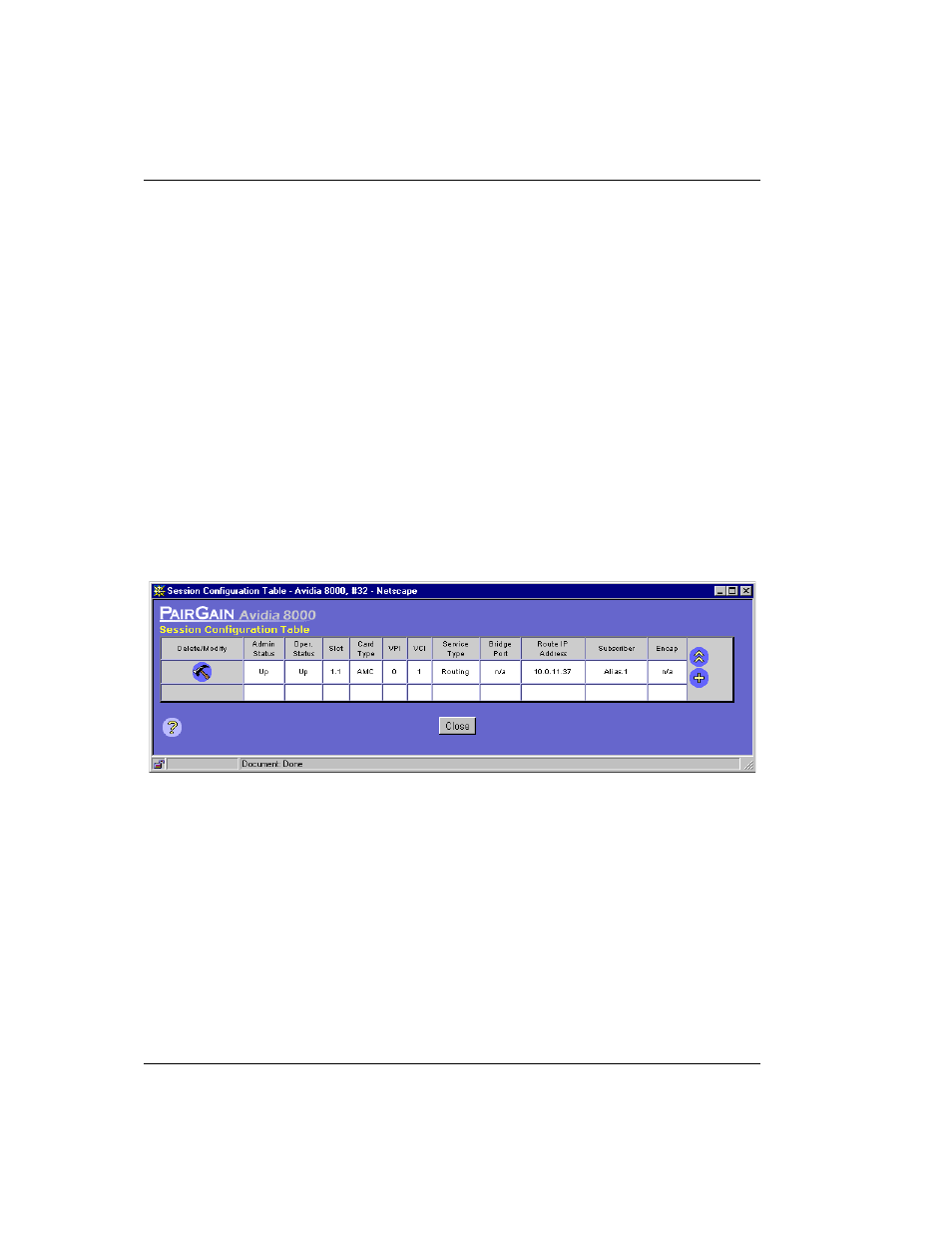

You add, modify and delete sessions from the Session Configuration Table window. Do one of the
following to open the Session Configuration Table window:
• In the Site Map Navigation window, click Session Configuration .
• In the Tree Navigation window, click Configuration Management , Service Provisioning , Session
Configuration Table .
