Chapter 24: Configuring Bridging and Routing
Avidia System Configuration and Management User Manual
501
Modifying System Bridging Parameters

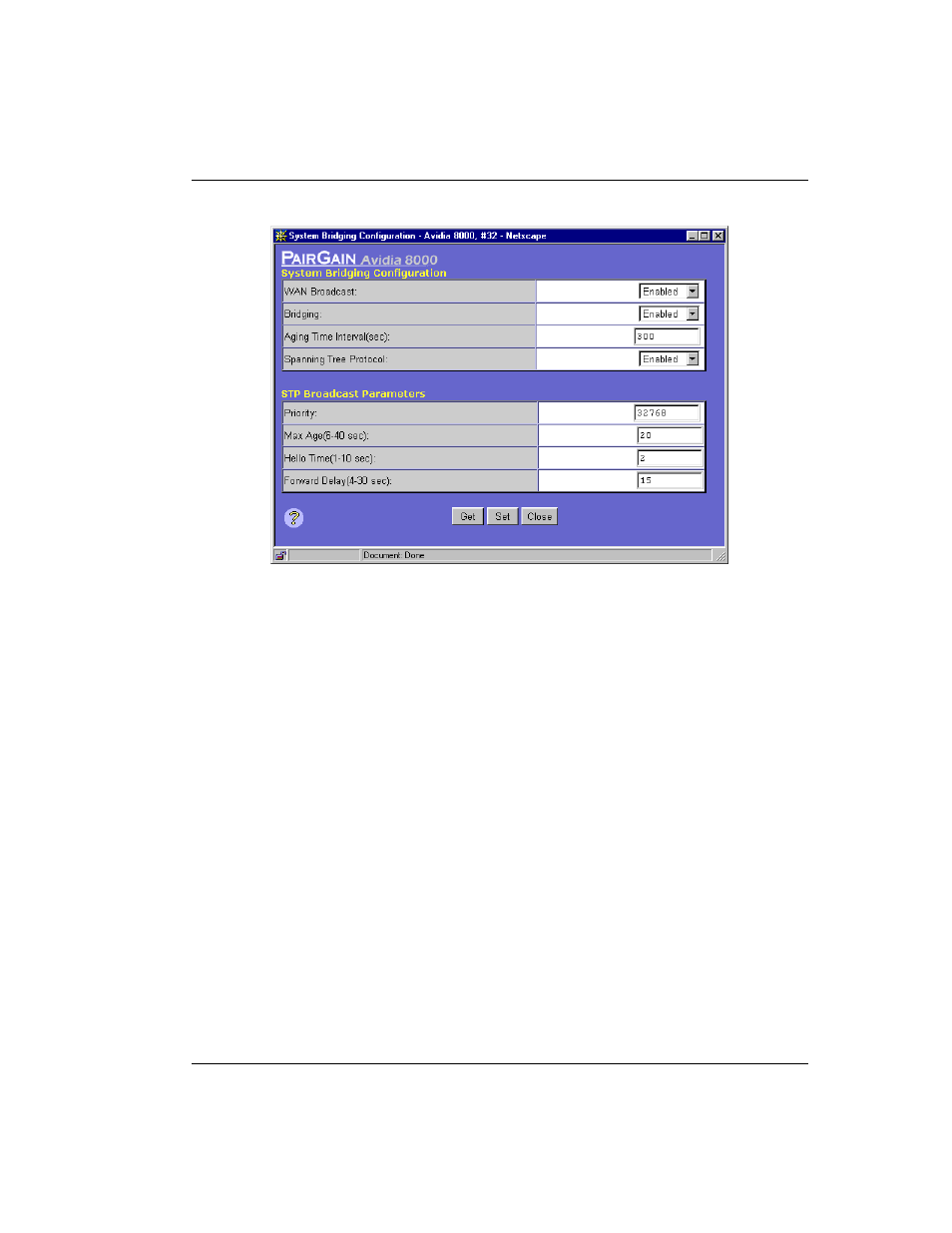

In the
System Bridging Configuration
window:
1
Use the
WAN Broadcast
box to
Enable
or
Disable
the broadcasting of unknown WAN frames
to all WAN logical interfaces.
2
Use the
Bridging
box to
Enable
or
Disable
bridging for the system.
3
In the
Aging Time Interval
box, type the interval, in seconds, after which Bridging Table
entries are deleted if they are not relearned. The valid rate is 10 - 1000000. The default is
300 seconds.
4
Use the
Spanning Tree Protocol
box to
Enable
or
Disable
STP for the system.
5
Do one of the following:
•
To activate the settings and close the
System Bridging Configuration
window, click
Set
.
•
To cancel the settings and close the
System Bridging Configuration
window, click
Close
.
