Chapter 22: Configuring ATM Virtual Circuits
Avidia System Configuration and Management User Manual
447
15
Identify the two index numbers for the profiles you want to apply to the downstream and
upstream traffic directions for this PVCC, then
Close
the

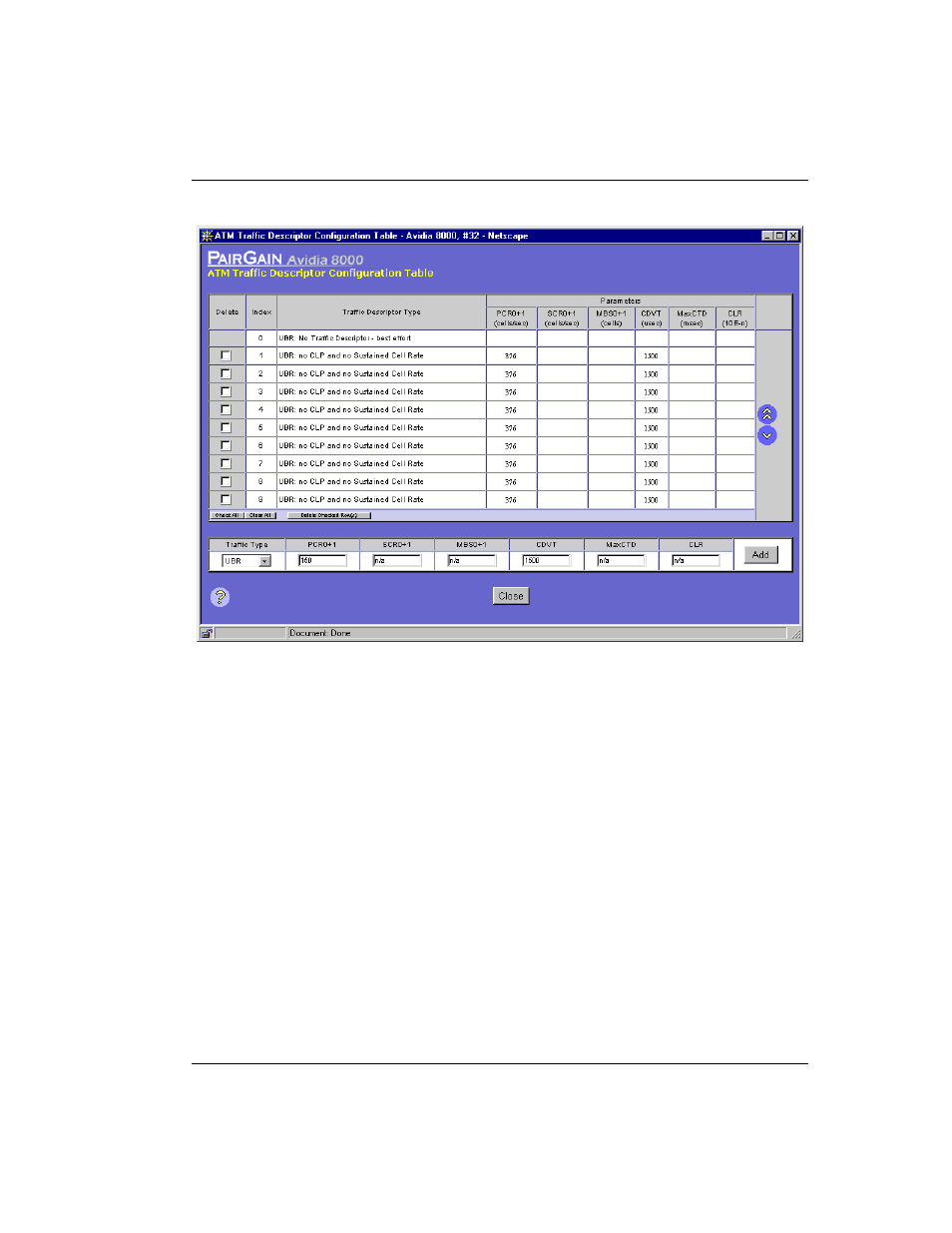

ATM Traffic Descriptor Configuration
Table
window.
16
In the
Traffic Profile Tx Idx
box (
), enter the index number for the downstream traffic
direction.
17
In the
Traffic Profile Rx Idx
box (
), enter the index number for the upstream traffic
direction.
18
Do one of the following in the
Add PVCC Configuration
window (
•
To activate the settings and close the
Add PVCC Configuration
window, click
Set
, then in
the confirmation dialog click
Back
.
•
To cancel the settings and close the
Add PVCC Configuration
window, click
Cancel
.
