LogicPro User’s Guide Chapter 15: Downloading & Monitoring
Doc.# 28002-00 Rev 3.00 Watlow Anafaze 237
5. You can start and stop the runtime executable by clicking
the
[Start Executable] tool
– or –
[Terminate] tool.
6. The Preparing for downloading box will open dur-
ing the preparation period of the download. Next, the
Downloading box will display. See Figure 15.1.

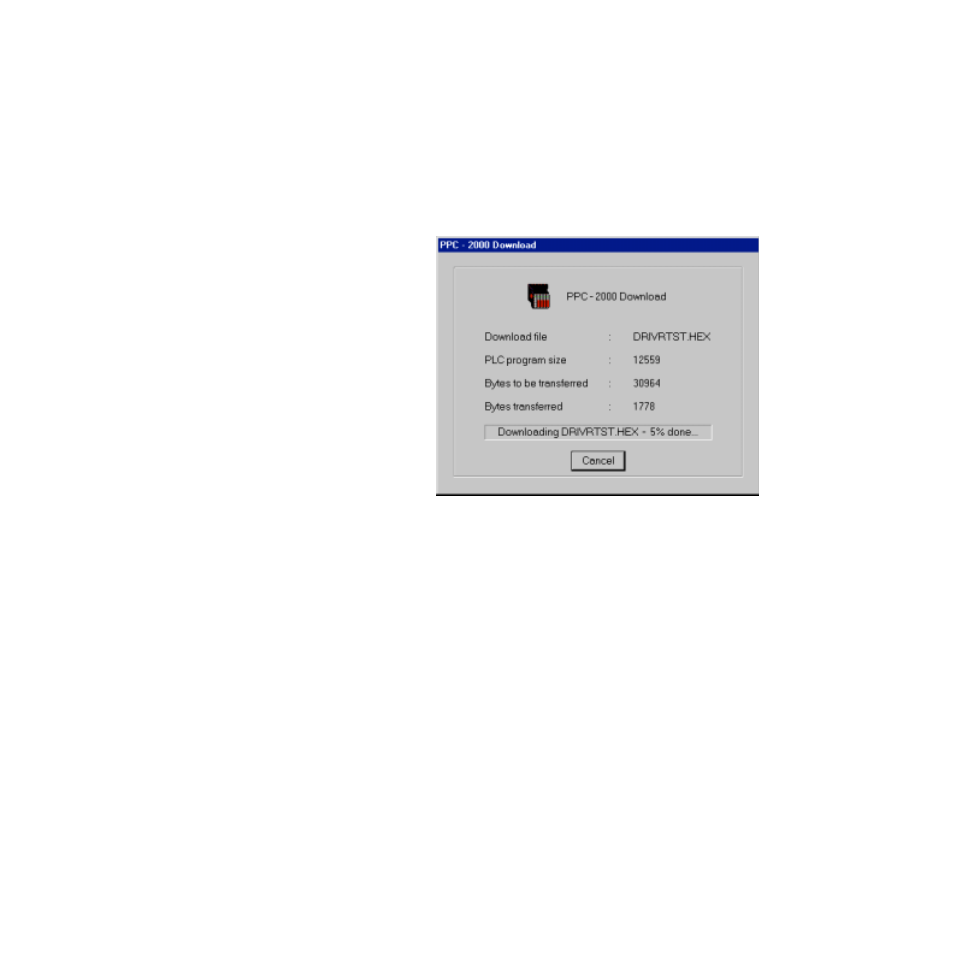

Figure 15.1 Downloading
Monitoring a Program
To monitor a Program:
You can verify that the control logic is working properly by
inspecting that status of different logic elements in a
monitoring window. Program monitoring exchanges
messages between LogicPro and the target resource. Note
also that the status of the logic elements displayed on a
monitoring window is NOT real-time.
1. Select the View menu.
2. Select Monitor On/Off
– or –
Click on the
[Monitor On/Off] tool.
