Chapter 9: Function Block Diagrams LogicPro User’s Guide
108 Watlow Anafaze Doc.# 28002-00 Rev 3.00
NOTE! Variable Elements must be connected before val-
ues can be assigned to them.
Each of these steps are discussed in more detail in the
following sections.
Inserting Function Blocks
To add a function block:
1. Select the [Function Block] tool. The Function
Block dialog box appears, as shown in Figure 9.1.
2. Select the check box next to the type of function block
you want:
• Standard
• Vendor Provided
• User Defined
3. Select the name of the function block you want from the
list.
4. Click [OK] .
5. Click the location on the screen where you want to insert
the function block. The function block appears in that
location.

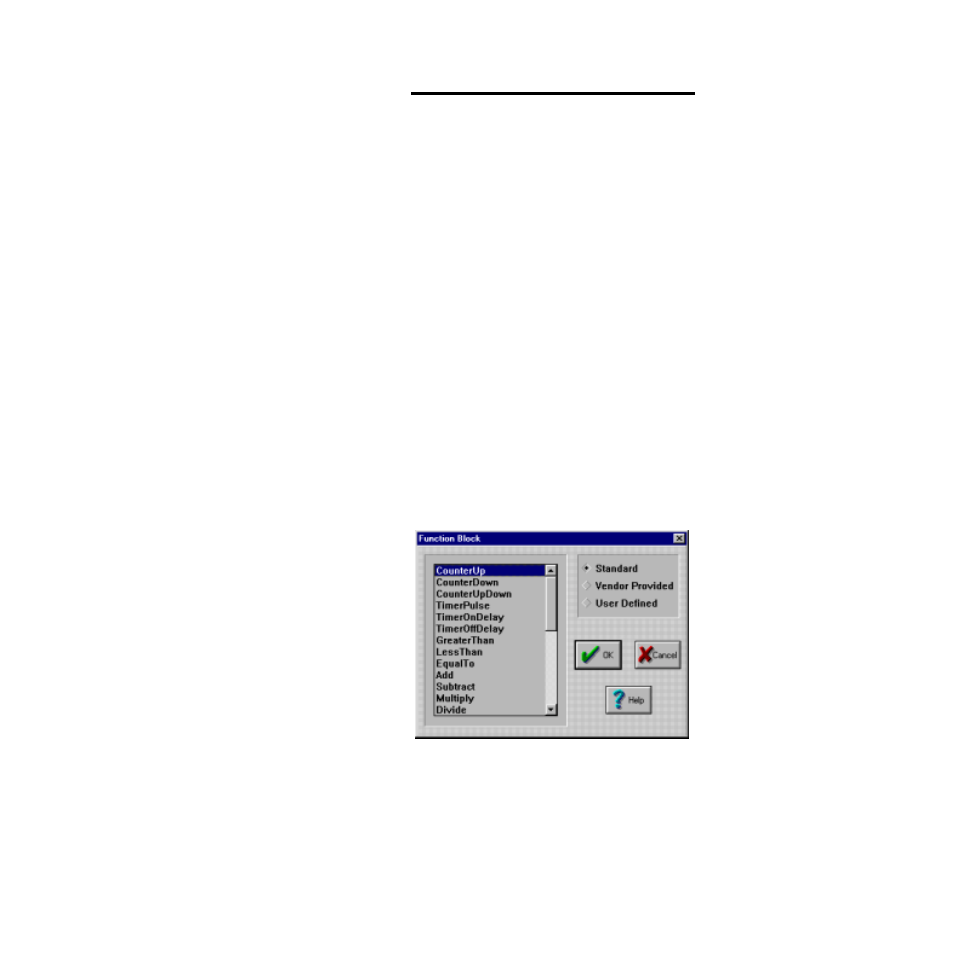

Figure 9.1 Function Block Dialog Box
