LogicPro User’s Guide Chapter 14: Simulation
Doc.# 28002-00 Rev 3.00 Watlow Anafaze 229

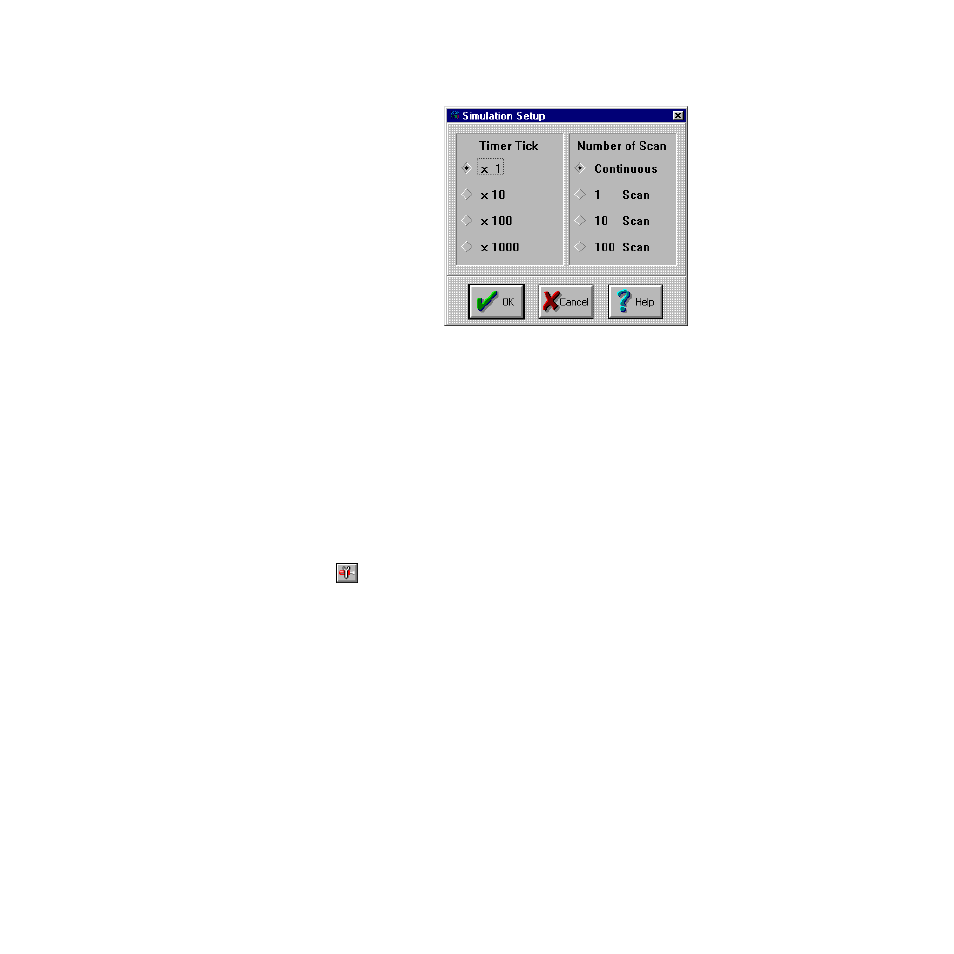

Figure 14.3 Simulation Setup Dialog Box
In the continuous scan mode, your program is free running but
not in real time. The Timer Tick increases by the value you
choose in the simulation setup. This allows you to multiply
how much your program increments in time for each scan.
The
Timer Tick setting has the same effect on your
simulation, regardless of the scan mode selected.
Timer Ticks
Timer Ticks set the amount by which timers are incremented
on each scan of the logic.
To modify the Timer Ticks:
1. Select the Simulation menu.
2. Select Simulation Setup...
– or –
Click the
[Simulation Setup] tool. This will cause the
Simulation Setup dialog box to open, as shown in
Figure 14.4 on page 231.
3. Click on the desired Timer Tick setting, the default
setting is 1.
4. Click [OK] .
