Resetting the Simulation
During simulation, you may wish to test several scenarios.
LogicPro lets you reset the simulation and start over.
Recompiling the simulation code is unnecessary.
By resetting the simulation all variables and constants will
return to their original values. However, the simulation will
retain all of the set up characteristics you have already created.
To reset the simulation:
1.
Select the
Simulation
menu.
2.
Select
Simulation Reset
– or –
Click the
[Simulation Reset]
tool. This will cause the
Simulation Setup
dialog box to open, as shown in.
Change Simulation Variables
You can assign specific values to Variables to test the
program under a variety of conditions. Select
Change
Simulation Variable
from the
Simulation
menu. The
Change Variables
dialog box appears. Alternatively, you
can push the
[Change Simulation Variables]
button from
the Standard toolbar.
Once in the dialog box, you can assign or modify Variable
values as often as you like. You can minimize or move this
dialog box so as not to clutter your work place. This dialog
box will automatically close when you close all of the
simulation windows for the program or click
[OK]
.

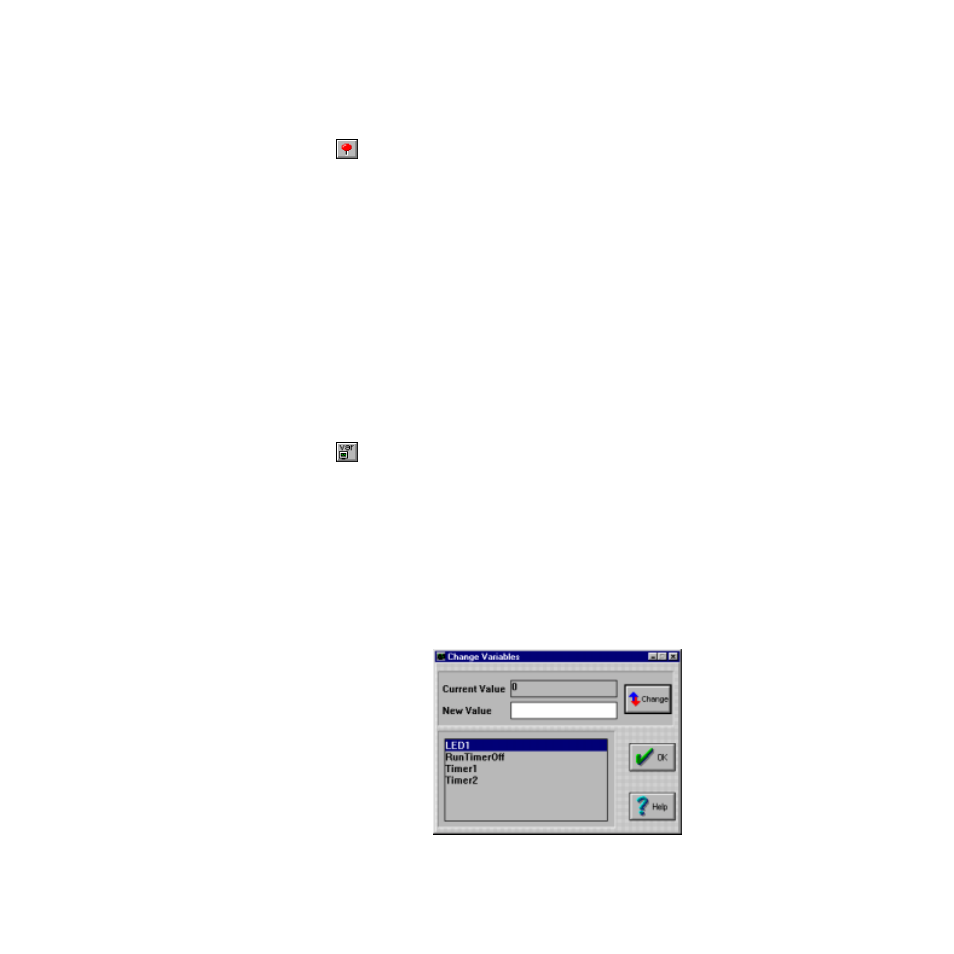

Figure 14.4 Change Variables Dialog Box
