LogicPro User’s Guide

Chapter 11: User Defined Function Blocks

Doc.# 28002-00 Rev 3.00

Watlow Anafaze

171

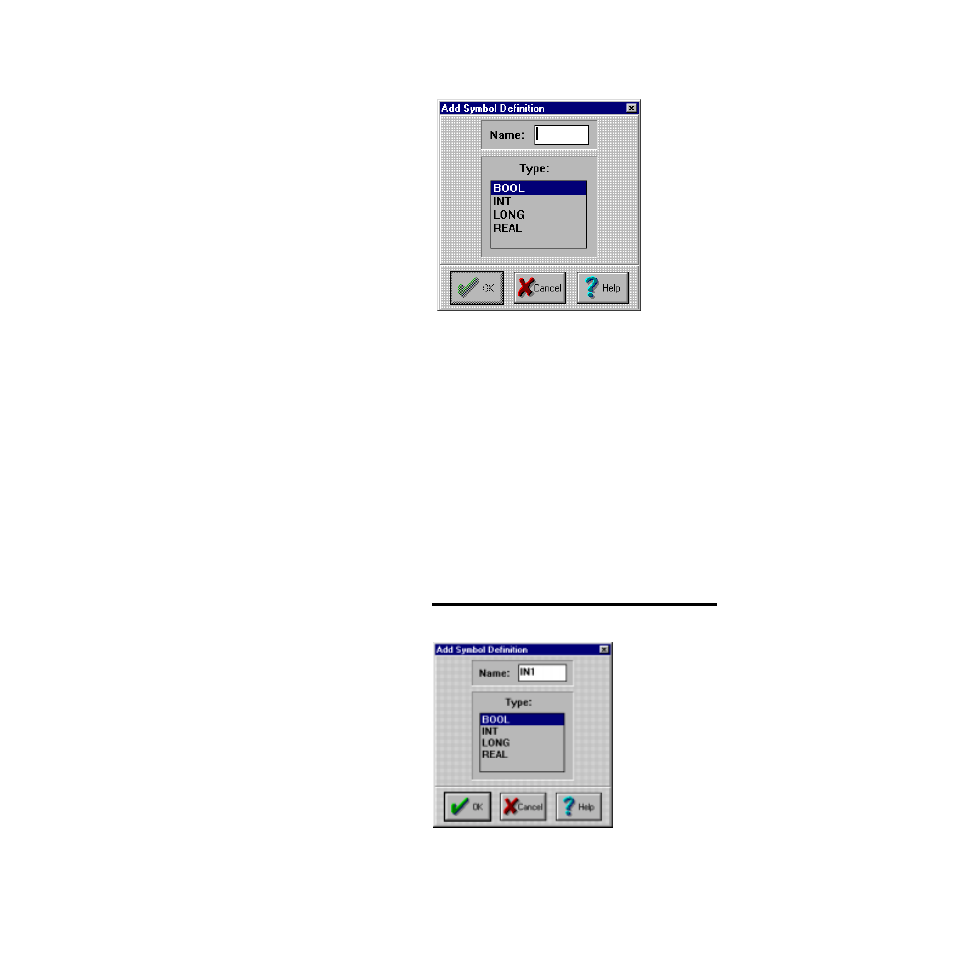

Figure 11.2 Add Symbol Definition Dialog Box

To edit an Input, Output, or Internal:

1.

Select a symbol by clicking on it.

2.

Click

[Edit]

. The

Edit Symbol Definition

dialog box,

shown in Figure 11.3, appears.

3.

Edit the name of the symbol in the

Name

field, if

necessary.

4.

Edit the type of symbol from the

Type

field, if

necessary.

5.

Click

[OK]

to replace the old symbol with the new

symbol in the group.

NOTE!

When type is “Real” the name MUST start with the
letter ‘R.’

Figure 11.3 Edit Symbol Definition Dialog Box
