Chapter 8: Ladder Diagrams LogicPro User’s Guide
92 Watlow Anafaze Doc.# 28002-00 Rev 3.00

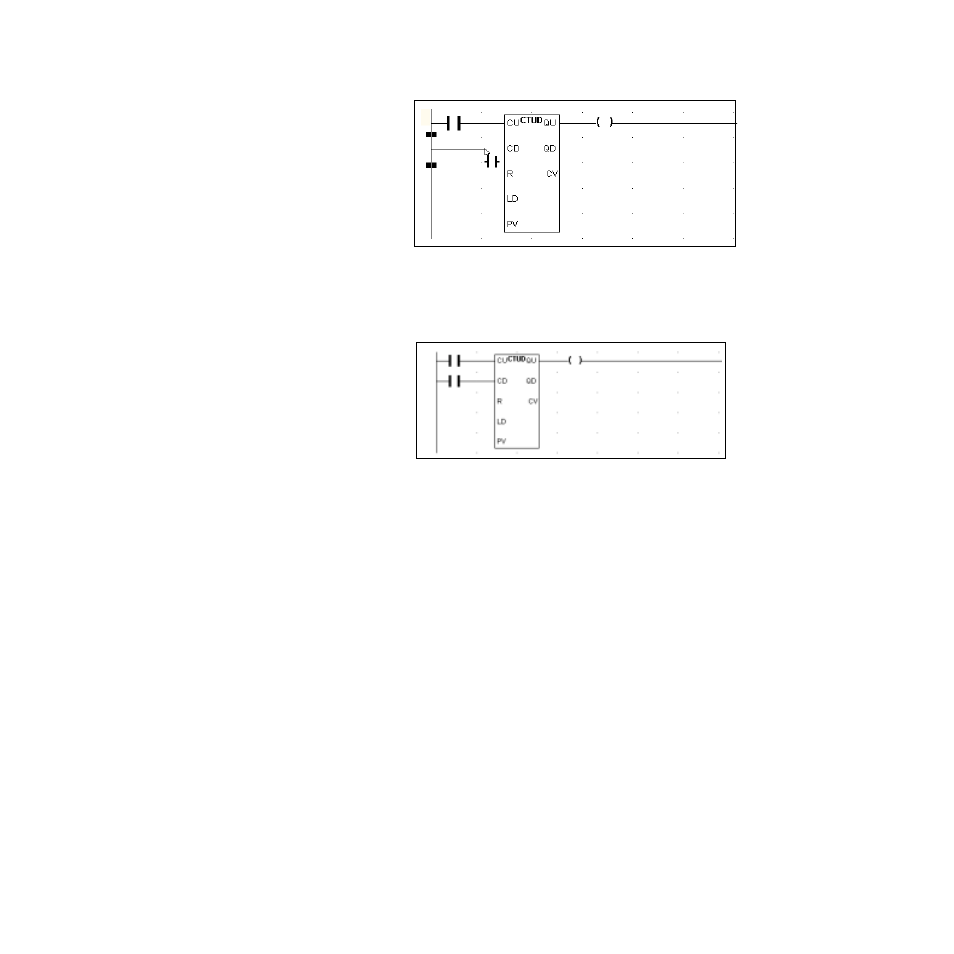

Figure 8.9 Inserting an Input Element on a
Function Block
Figure 8.10 Element Inserted Between Left
Power Rail and Second Input Bit
Connecting New Elements
To connect a new element, such as a coil, from the second or
lower logical output bit to the right power rail:
1. Select a coil element type from the toolbar.
2. Click and hold on the Logical Output Bit in the Function
Block.
3. Drag the line at least past the grid that contains the right
side of the Function Block. See Figure 8.11 on page 93.
4. Release the mouse button. A rung appears with the new
element on it. See Figure 8.12 on page 93.
