ty FS (option)
Overview of permitted feed rates and speeds
The TNC provides an overview of the permitted speeds and feed rates
for all axes depending on the active mode of operation.
 Select the Manual Operation mode
 Scroll to the last soft-key row

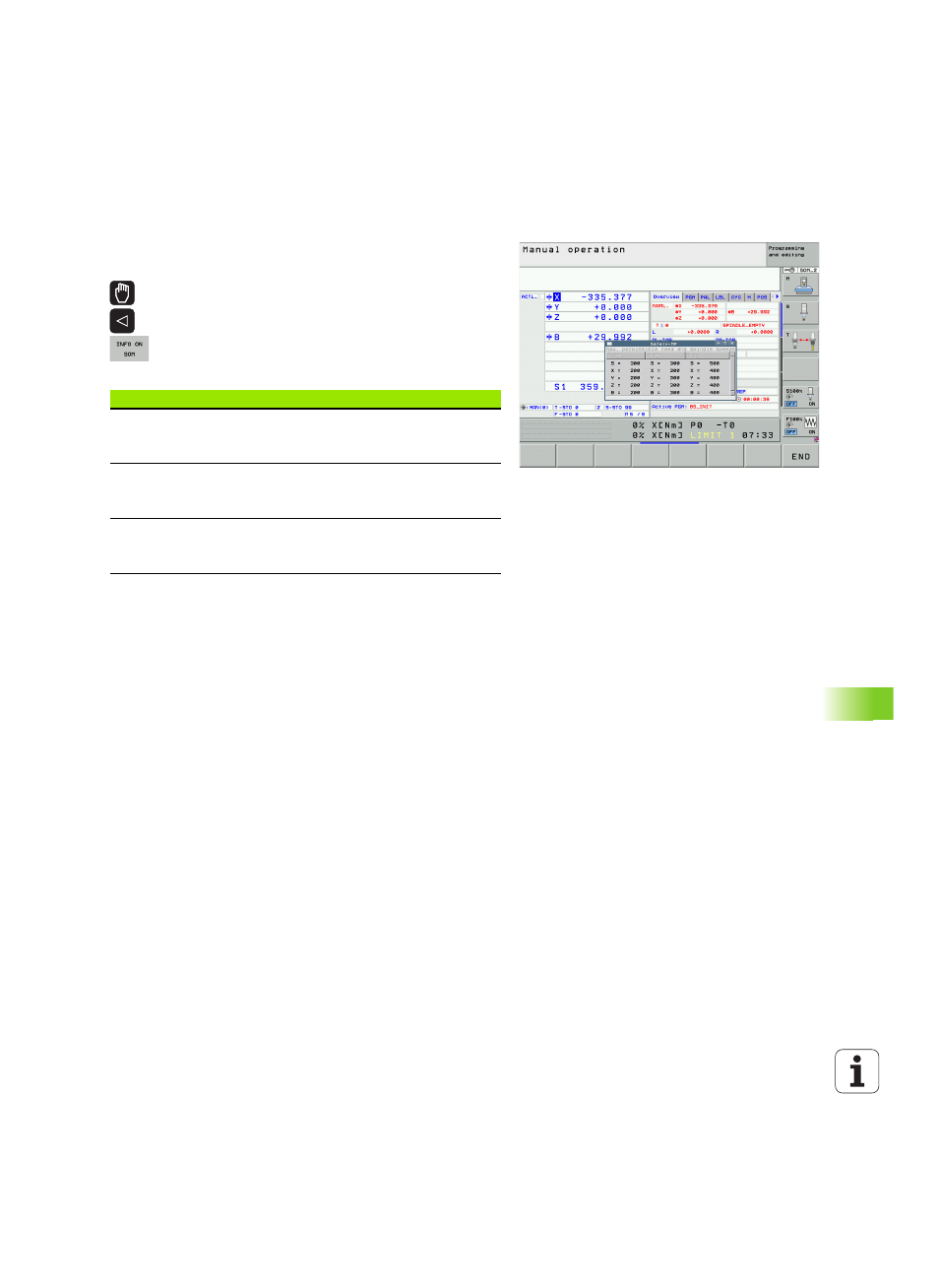

 Press the INFO SOM soft key: The TNC opens the
window containing the overview of permitted speeds
and feed rates
Column Meaning
SLS2 Safely limited speeds in the safety-related
operating mode 2 (SOM_2) for the respective
axes
SLS3 Safely limited speeds in the safety-related
operating mode 3 (SOM_3) for the respective
axes
SLS4 Safely limited speeds in the safety-related
operating mode 4 (SOM_4) for the respective
axes
