13.2 P

allet oper

ation with

t

o

ol-or

ient

e

d mac

h

ining

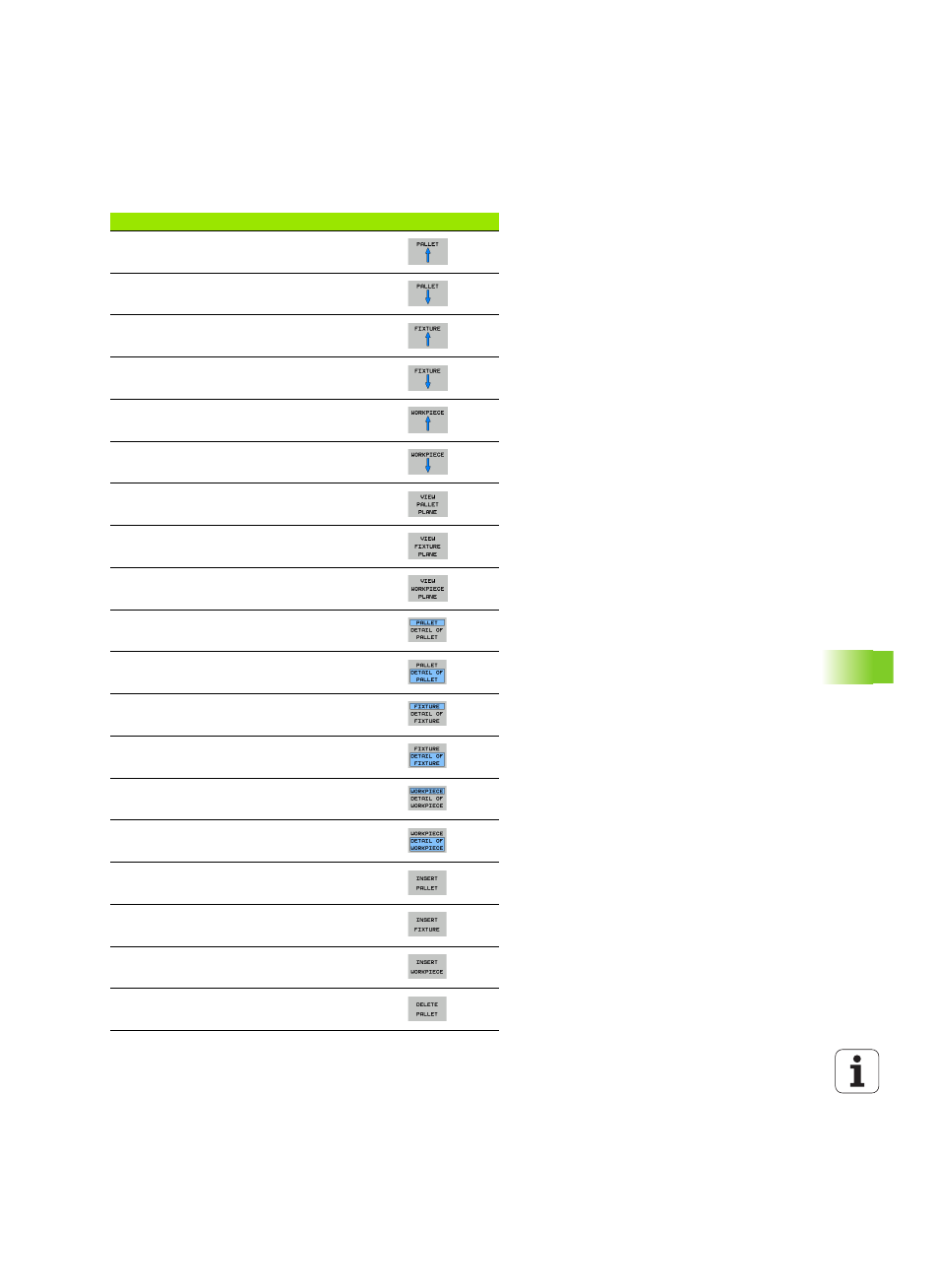

Editing function in entry-form mode

Soft key

Select previous pallet

Select next pallet

Select previous fixture

Select next fixture

Select previous workpiece

Select next workpiece

Switch to pallet level

Switch to fixture level

Switch to workpiece level

Select standard pallet view

Select detailed pallet view

Select standard fixture view

Select detailed fixture view

Select standard workpiece view

Select detailed workpiece view

Insert pallet

Insert fixture

Insert workpiece

Delete pallet
