9.2 Part families—Q parameters in

place of numerical values

Application

The Q parameter function FN 0: ASSIGN assigns numerical values to

Q parameters. This enables you to use variables in the program

instead of fixed numerical values.

Example NC blocks

You need write only one program for a whole family of parts, entering

the characteristic dimensions as Q parameters.
To program a particular part, you then assign the appropriate values to

the individual Q parameters.

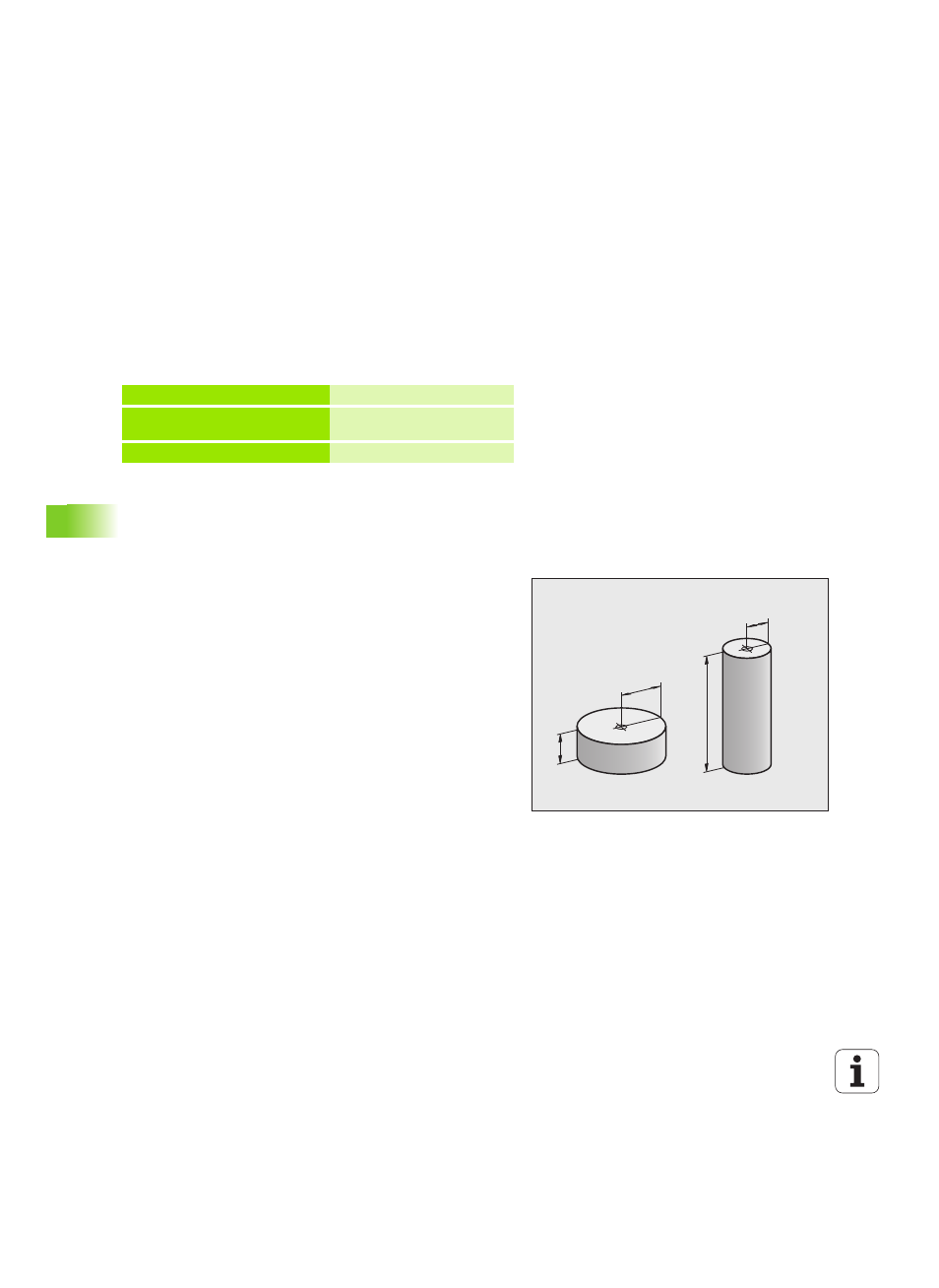

Example
Cylinder with Q parameters

15 FN O: Q10=25

Assign

...

Q10 is assigned the value

25

25 L X +Q10

Means L X +25

Z1

Q1

Q2

Z2

Q1

Q2

Cylinder radius

R = Q1

Cylinder height

H = Q2

Cylinder Z1

Q1 = +30

Q2 = +10

Cylinder Z2

Q1 = +10

Q2 = +50
