3.4 W
o
rk
ing with the file manag
e
r
Calling the file manager

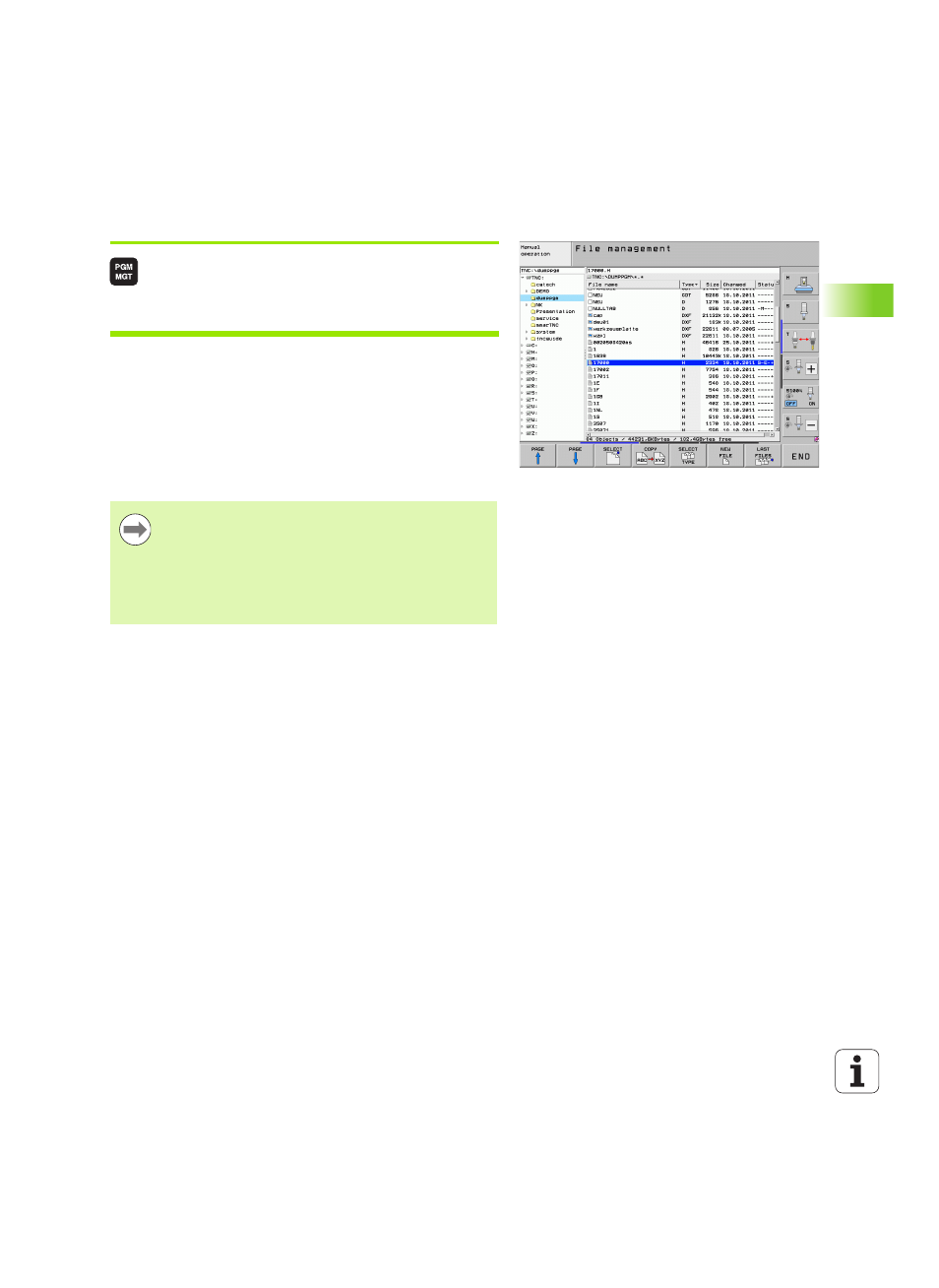

Press the PGM MGT key: The TNC displays the file
management window (see figure for default setting.
If the TNC displays a different screen layout, press
the WINDOW soft key.)
The narrow window on the left shows the available drives and
directories. Drives designate devices with which data are stored or
transferred. One drive is the hard disk of the TNC. Other drives are the
interfaces (RS232, RS422, Ethernet), which can be used, for example,
to connect a personal computer. A directory is always identified by a
folder symbol to the left and the directory name to the right.
Subdirectories are shown to the right of and below their parent
directories. A triangle in front of the folder symbol indicates that there
are further subdirectories, which can be shown with the –/+ or ENT
keys.
The TNC always shows drives in the following sequence:
 First serial interfaces (RS232 and RS422)
 Then the TNC drive
 Then all other drives
Within the three groups the TNC shows the drives in
alphabetically ascending order.
