414 Programming: Special Functions
1
1
.2 Dynamic Collision Monit
o
ri
ng (sof
tw
ar
e option)

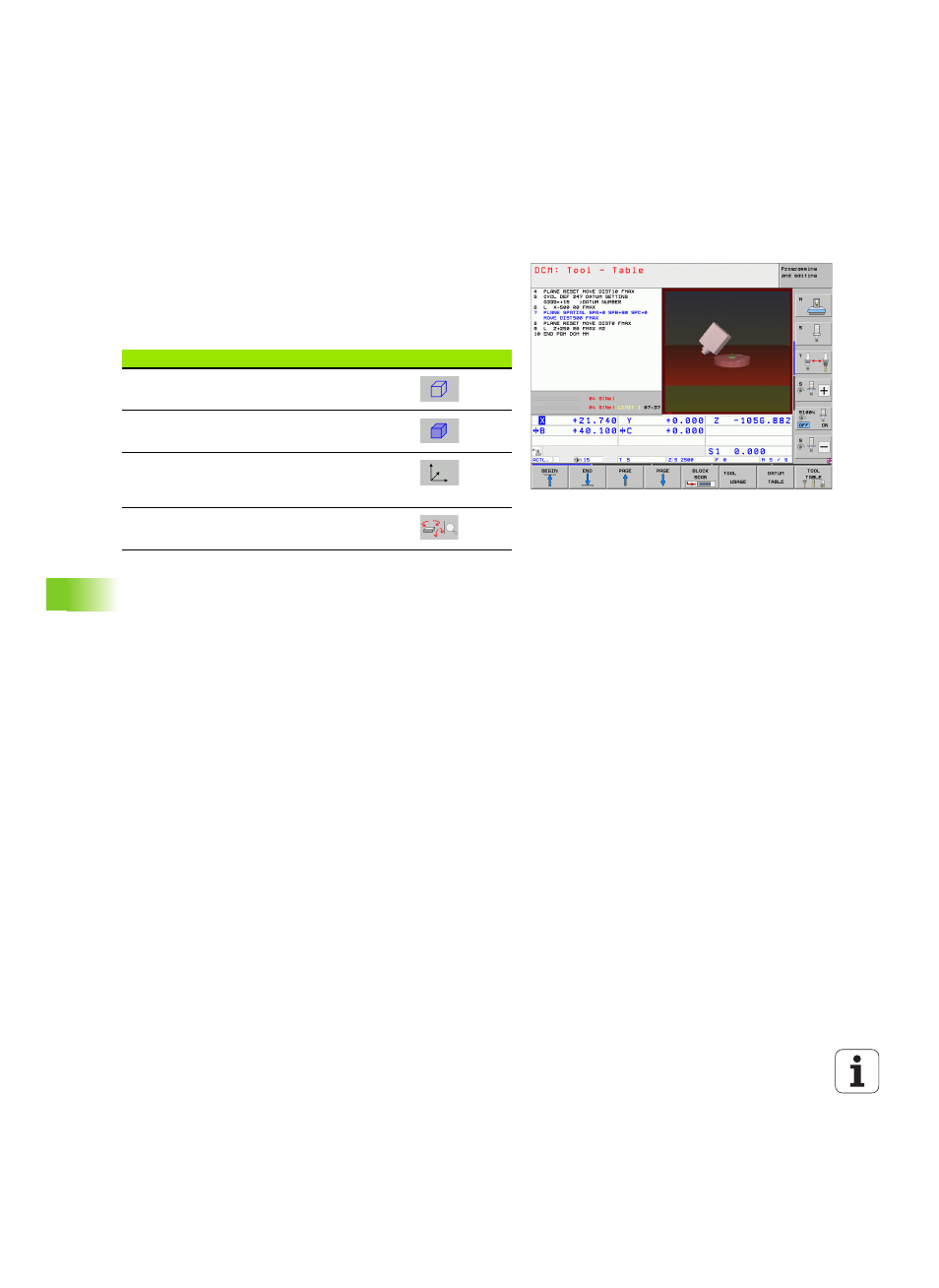

Graphic depiction of the protected space (FCL4
function)
You can use the split-screen layout key to have the machine-based
collision objects defined on your machine and measured fixtures be
shown in three dimensions (see "Program Run, Full Sequence and
Program Run, Single Block" on page 84).
You can switch between the various views via soft key:
You can also use the mouse for the graphics. The following functions
are available:
 In order to rotate the wire model shown in three dimensions you
hold the right mouse button down and move the mouse. After you
release the right mouse button, the TNC orients the workpiece to
the defined orientation
 In order to shift the model shown: Hold the center mouse button or
the wheel button down and move the mouse. The TNC shifts the
model in the corresponding direction. After you release the center
mouse button, the TNC shifts the model to the defined position
 In order to zoom in on a certain area with the mouse: Draw a
rectangular zoom area while holding the left mouse button down.
You can shift the zoom area by moving the mouse horizontally and
vertically as required. After you release the left mouse button, the
TNC zooms in on the defined area of the workpiece
 In order to quickly zoom in and out with the mouse: Rotate the
wheel button forward or backward
 Double-click with the right mouse button: Select standard view
Function Soft key
Switch between wire-frame and solid-object
view
Switch between solid and transparent view
Display/hide the coordinate systems that result
from transformations in the kinematics
description
Functions for rotating in the X and Z axes, and
magnifying/reducing
