HEIDENHAIN iTNC 530 267
6.6 P
a
th cont
ours—FK fr
ee cont
our pr
ogr
a
mming
Relative data
Data whose values are based on another contour element are called
relative data. The soft keys and program words for entries begin with

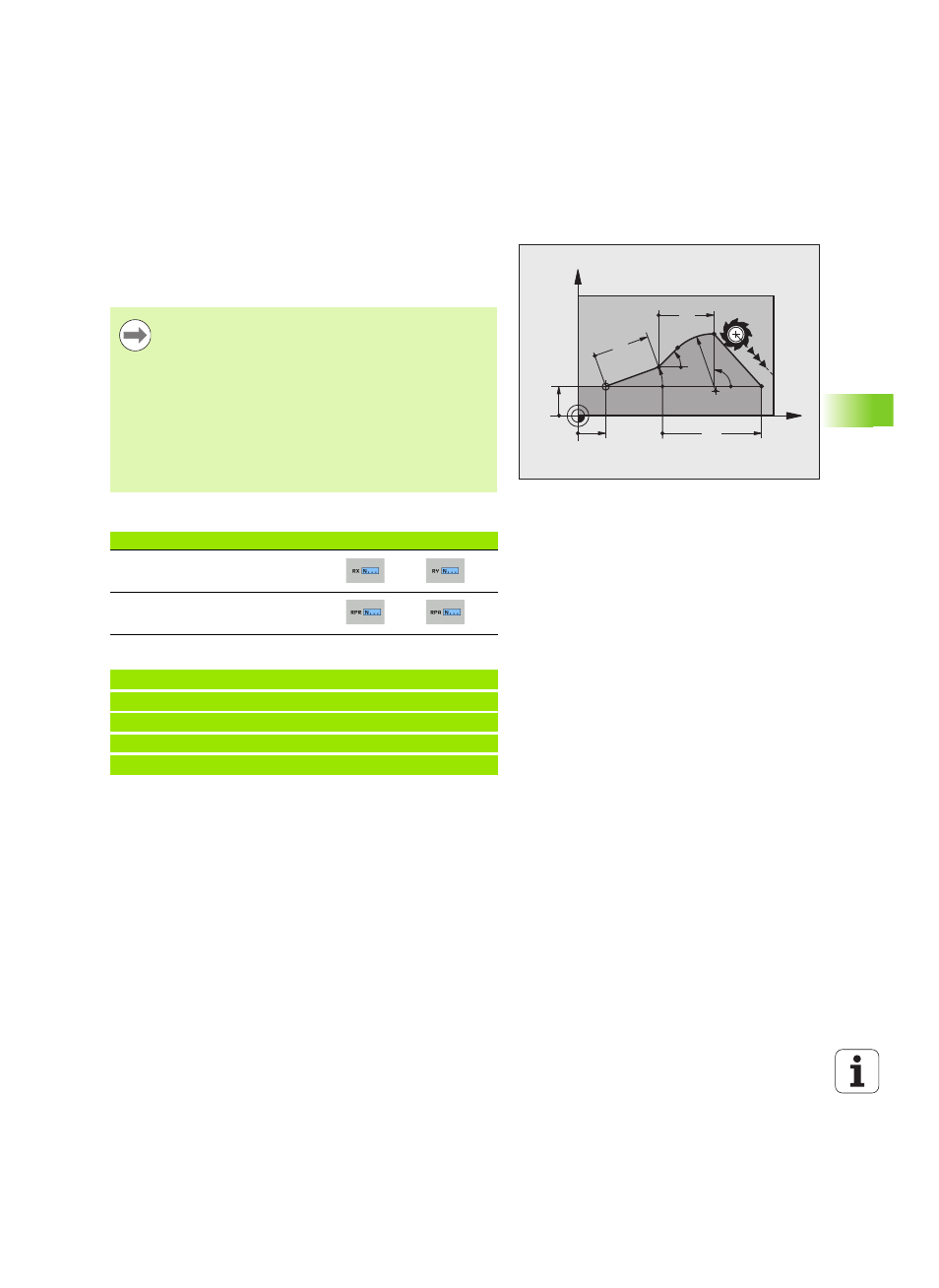

the letter R for Relative. The figure at right shows the entries that
should be programmed as relative data.
Data relative to block N: End point coordinates
Example NC blocks
X
Y
35
10
10
20° R20
20
45°
20
FPOL
90°
The coordinates and angles for relative data are always
programmed in incremental dimensions. You must also
enter the block number of the contour element on which
the data are based.
The block number of the contour element on which the
relative data are based can only be located up to 64
positioning blocks before the block in which you program
the reference.
If you delete a block on which relative data are based, the
TNC will display an error message. Change the program
first before you delete the block.
Known data Soft keys
Cartesian coordinates
relative to block N
Polar coordinates relative to block N
12 FPOL X+10 Y+10
13 FL PR+20 PA+20
14 FL AN+45
15 FCT IX+20 DR- R20 CCA+90 RX 13
16 FL IPR+35 PA+0 RPR 13
