5.1 Entering tool-related data

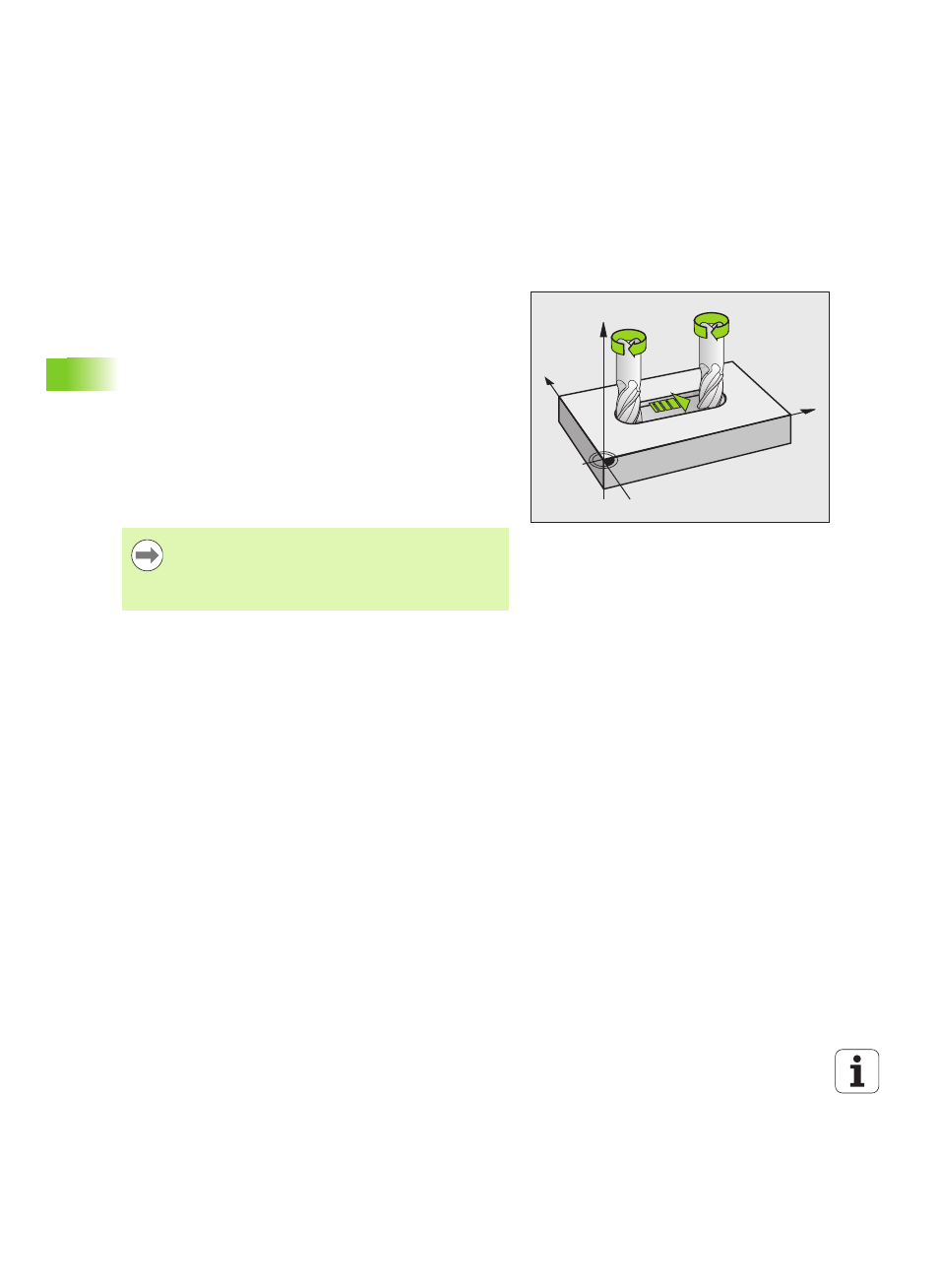

Feed rate F
The feed rate F is the speed (in millimeters per minute or inches per
minute) at which the tool center point moves. The maximum feed
rates can be different for the individual axes and are set in machine
parameters.
Input
You can enter the feed rate in the TOOL CALL block and in every
positioning block (see "Creating the program blocks with the path
function keys" on page 226). In millimeter-programs you enter the feed
rate in mm/min, and in inch-programs, for reasons of resolution, in
1/10 inch/min.
Rapid traverse
If you wish to program rapid traverse, enter F MAX. To enter FMAX,
press the ENT key or the FMAX soft key when the dialog question
FEED RATE F = ?
appears on the control's screen.
Duration of effect
A feed rate entered as a numerical value remains in effect until a block
with a different feed rate is reached. FMAX is only effective in the block
in which it is programmed. After the block with FMAX is executed, the
feed rate will return to the last feed rate entered as a numerical value.
Changing during program run
You can adjust the feed rate during program run with the feed-rate
override knob F.
X
Y
Z
S
S
F
To move your machine at rapid traverse, you can also
program the corresponding numerical value, e.g. F30000.
Unlike FMAX, this rapid traverse remains in effect not only
in the individual block but in all blocks until you program a
new feed rate.
