85 FS2 Installation and Operation Manual — OUTPUT Menu Group
OUTPUT Menu Group
This menu group selects the video and audio outputs that are routed to the rear panel
connectors.
1.1 SDI1 Video
Output This parameter selects which video processor output is sent out the SDI 1 output. The
default is to send the output of Processor 1 to SDI1 Out. The Proc1+Proc2 selection
multiplexes two separate 1.5 Gb HD video signals from both video processor outputs
into a Dual Stream 3G SDI (muxed) output as illustrated below. This selection will only
make valid video if both video processors are set to output the same HD video format
and that format is not 1080p50/60.

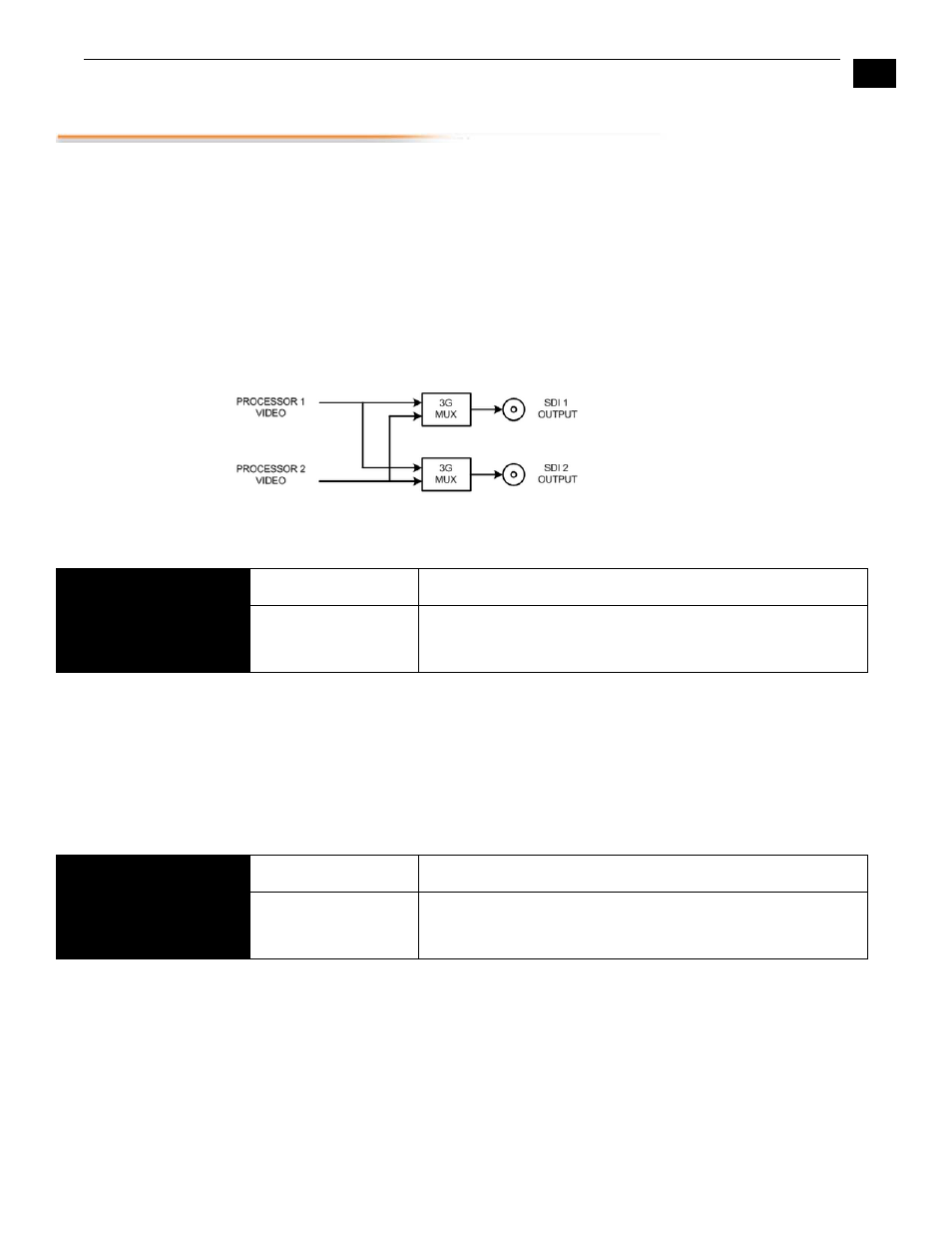

Dual Stream 3G Output
1.2 SDI2 Video
Out This parameter selects which video processor output is sent to the SDI2 output. The
default is to send the output of Processor2 to SDI2 Out. The Proc1+Proc2 selection
multiplexes two separate 1.5 Gb HD video signals from both video processor outputs
into a Dual Stream 3G SDI (muxed) output. This selection will only produce valid video
if both video processors are set to output the same HD video format and that format
is not 1080p50/60. See 1.1 SDI1 Video Output for an illustration.
1.1 SDI1 Video Out Selections Selection Descriptions
Processor1 (default)
Processor2
Proc1+Proc2
Sends the output of Processor 1 to the SDI1 output.
Sends the output of Processor 2 to the SDI1 output.
Sends multiplexed Proc1 & 2 to the SDI1 output (Dua Stream 3G).
1.2 SDI2 Video Out Selections Selection Descriptions
Processor1
Processor2 (default)
Proc1+Proc2
Sends the output of Processor 1 to the SDI2 output.
Sends the output of Processor 2 to the SDI2 output.
Sends multiplexed Proc 1 & 2 to the SDI2 output (Dual Stream 3G).
