36

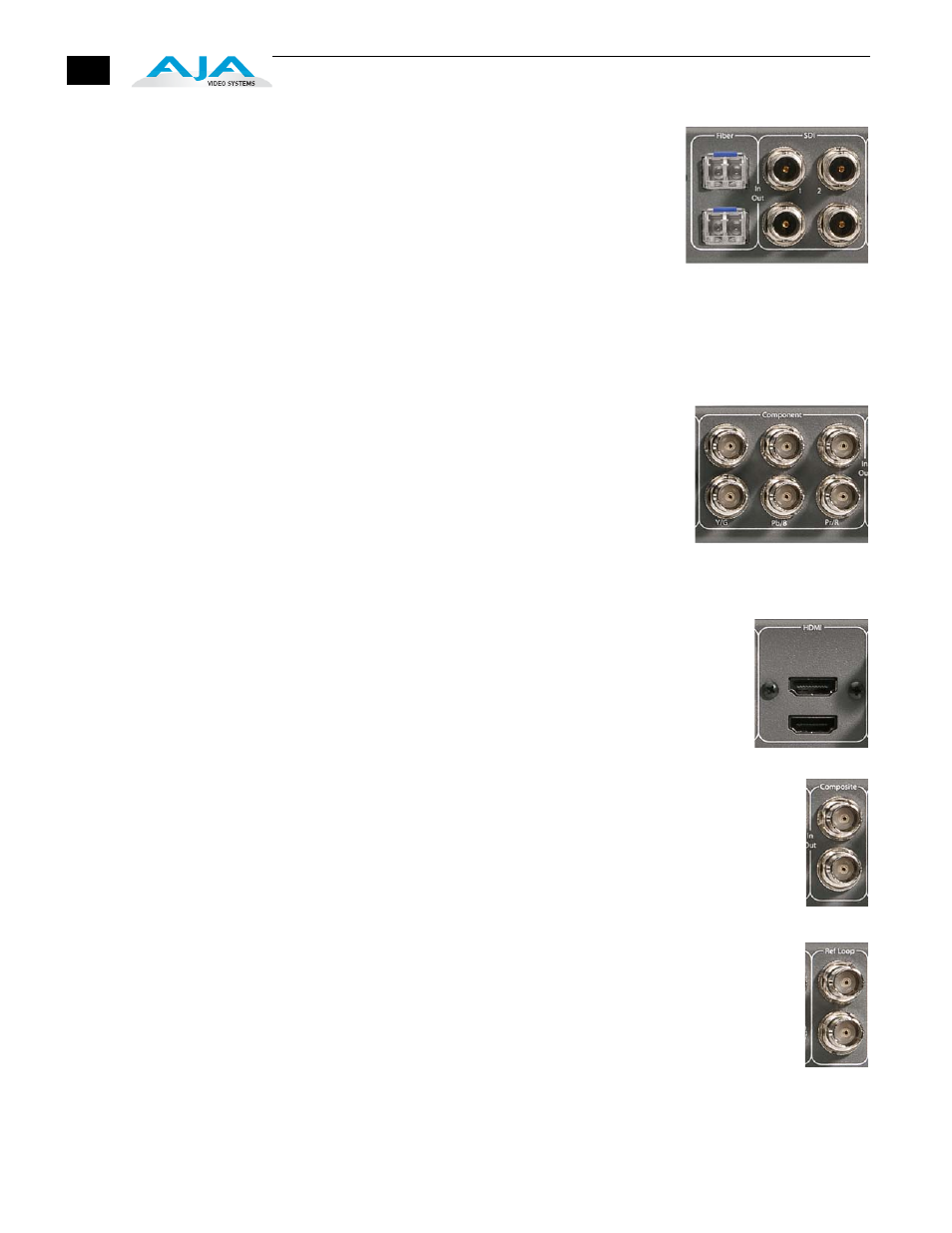

SDI In and Out
Two SDI Input and two SDI Output BNCs.
10 bit 3G/HD/SD SDI is supported.
Optical Fiber In and Out
Two optional Optical Fiber SFP modules support
single- or dual-channel Fiber Input and/or Output. 3G/
HD/SD SDI protocol is supported. Only AJA Optical
Fiber SFP modules are supported—use of other
manufacturer’s modules is not supported and may
void warranty.
Component/Composite Analog Video In and Out
Component Analog Video is supported on 3x BNCs for
Input and Output. Video A/D and D/A converters are
12-bit and support both SD and HD. YPbPr format is
supported or the outputs can be switched to RGB.
Additionally, with v 1.1 firmware composite analog
video is supported.
HDMI In and Out
HDMI In and Out is supported on HDMI connectors. Standard
SD and HD video formats are supported, including support for
8 channel embedded audio. Also supports standard computer
DVI video formats (input via a DVI to HDMI cable). HDCP (copy
protected) HDMI video is not supported.
Composite NTSC/PAL
Composite NTSC or PAL standard definition Input and Output.
Composite Video A/D and D/A converters are 12-bit.
Reference Video (looping)
The Reference Loop BNCs accept an Output timing reference signal.
The reference can be SD Blackburst or HD tri-level sync. Examples of
permissible reference video input signals:
• 525 Color Black
• 625 Color Black
• 1080i Tri-level Sync
• 720p Tri-level Sync
