Appendix C:
Analog Audio Connector Pinout
C
Analog Audio Connections
Connector Pinout

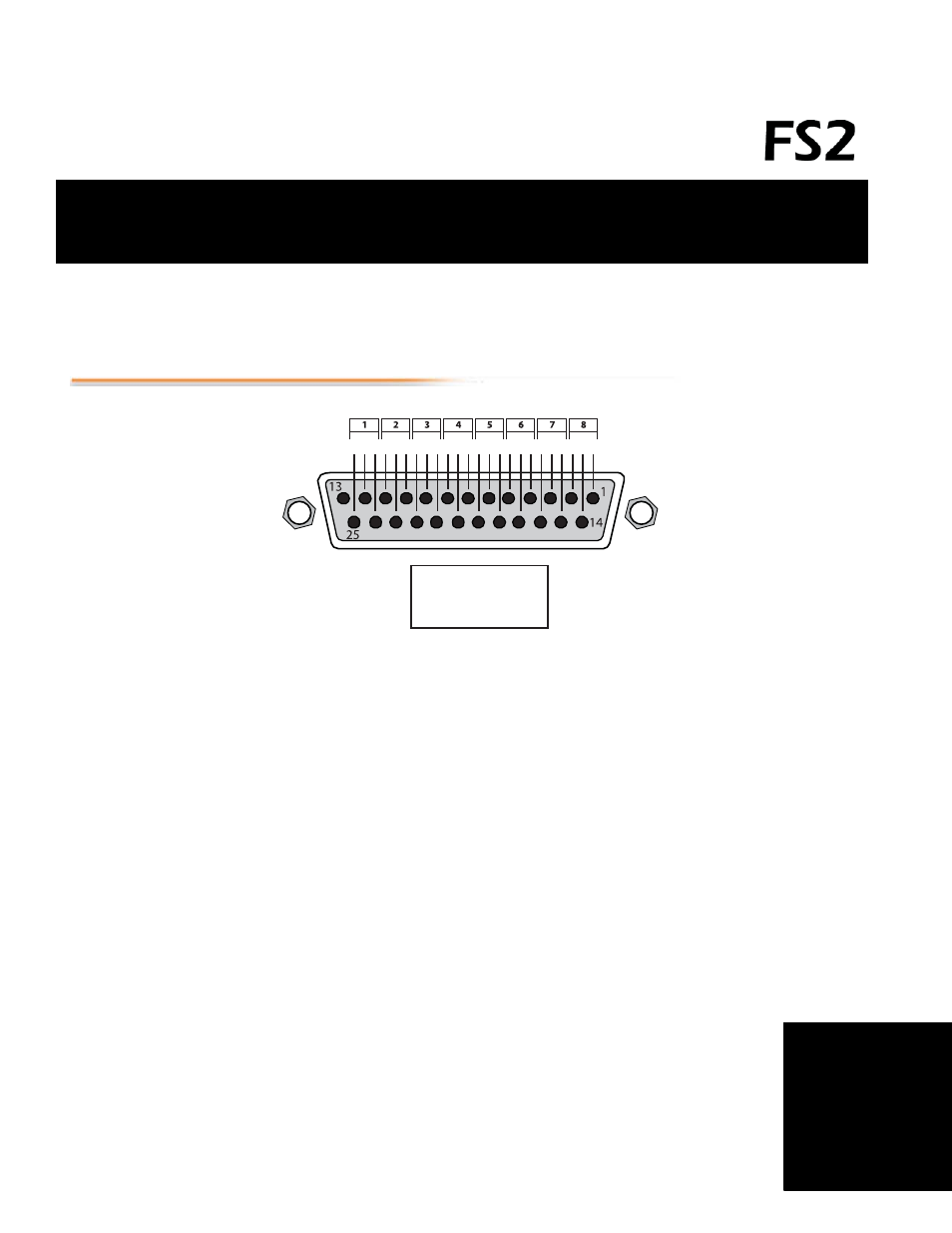

The two DB25 connectors on the FS2 rear panel support a TASCAM-style cable
snake for balanced 8-channel analog audio. The pinout is the same for both
input and output connectors, each following the TASCAM DB-25 standard
shown in the drawing above.
G - +G - +G - +G - +G - +G - +G - +G - +
G = Ground
+/- = Balanced Pair
Key
