132

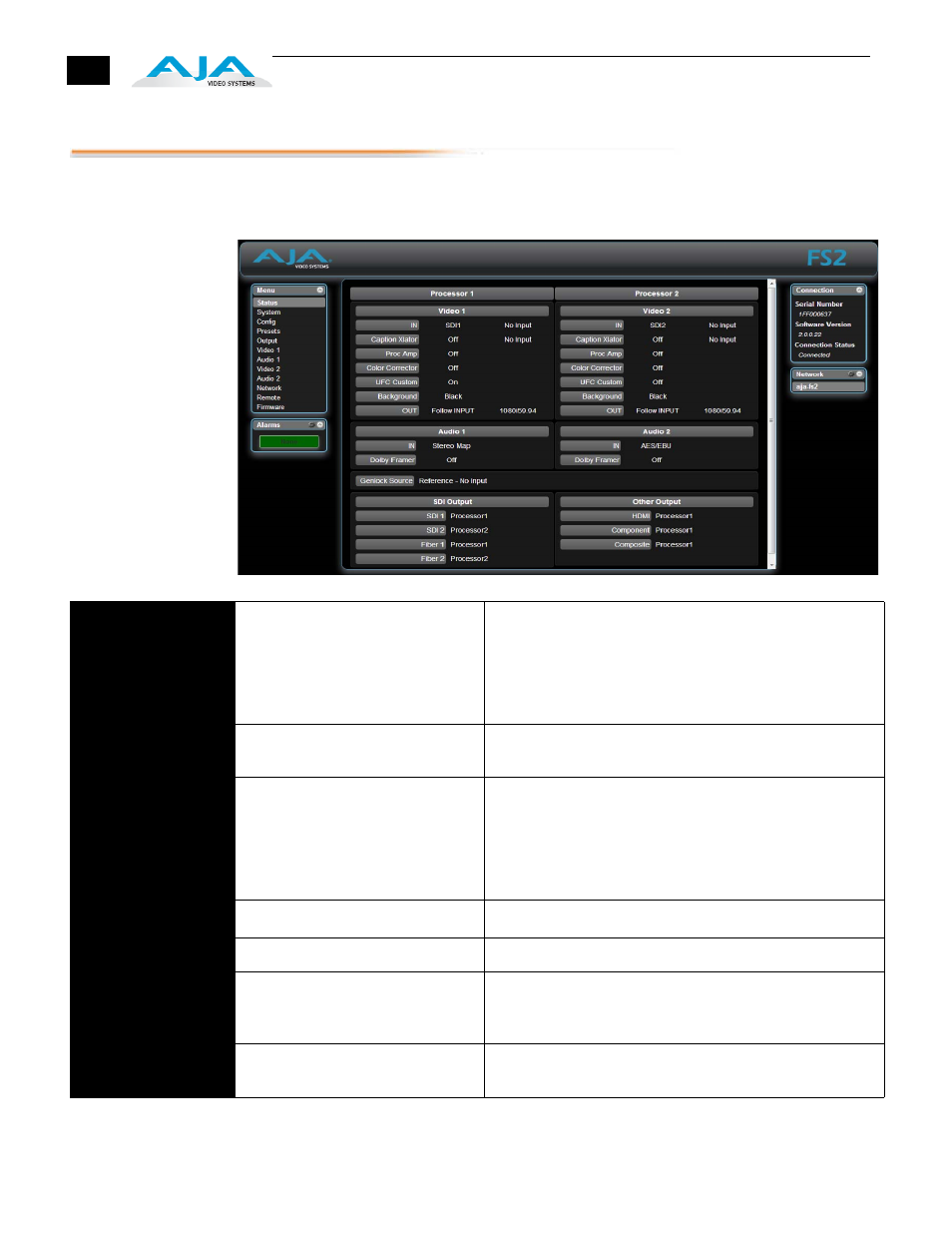

Status Screen
The Status screen displays overall FS2 operational status. You can right-click most
values to change them, allowing you to edit many parameters in one place.
Parameters with format incompatibilities or other alarms are highlighted in red.
Status Screen Processor 1 Video 1 IN
Captioning
Proc Amp
Color Corrector
UFC Custom
Background
OUT
Shows the input source and format for Video Processor 1.
Shows the caption selection and caption signal presence.
Shows whether the Proc Amp is On or Off.
Shows whether the Color Corrector (RGB) is On or Off.
Shows whether Custom conversion, AFD, and ROI are On or Off.
Shows the source and format of Background video.
Shows the output video selection and format for Video Proc 1.
Processor 1 Audio 1 IN
Framer
Shows the audio input feeding Audio Processor 1.
Shows if Dolby E Framer is On and locked to video.
Processor 2 Video 2 IN
Captioning
Proc Amp
Color Corrector
UFC Custom
Background
OUT
Shows the input source and format for Video Processor 2.
Shows the captioning selection and signal presence.
Shows whether the Proc Amp is On or Off.
Shows whether the Color Corrector (RGB) is On or Off.
Shows whether Custom conversion, AFD, and ROI are On or Off.
Shows the source and format of Background video.
Shows the output video selection and format for Video Proc 2.
Processor 2 Audio 2 IN
Dolby Framer
Shows the audio input feeding Audio Processor 2.
Shows if Dolby E Framer is On and locked to video.
Genlock Source
Reference
Shows the input providing the genlock reference.
SDI Output SDI 1
SDI 2
Fiber 1
Fiber 2
Shows the source of the SDI 1 output.
Shows the source of the SDI 2 output.
Shows the source of the Fiber 1 output.
Shows the source of the Fiber 2 output.
HDMI
Component
Composite
Shows the source of the HDMI output.
Shows the source of the Component video output.
Shows the source of the Composite video output.
