Information The main Status screen appears below. All FS2 screens have common elements:
Screen List: On the left of each screen is a navigational list of the available FS2
screens. Click any of these items to jump to that screen.
FS2 Alarms: The lower left side of the screen shows alarms that alert you to
possible problem conditions, such as disconnected or failed power supplies and
video format incompatibilities.
Status and Menu Display: In the center of each screen you’ll find the main display
showing the status and menu selections for the screen you are viewing. The content
of FS2 web screens closely mirrors the parameter menus displayed on the front
panel; if you hover the cursor over any parameter, the equivalent front panel
parameter number is displayed.
Connection: The right side of the screen lists FS2 system details, including system
serial number, installed software version, and connection status. This information is
useful if you ever have to call AJA Technical Support for help.
Systems: The right side of the screen lists systems on the network. If you right-click
any FS2 system in the list, the ID LEDs on the unit light to identify it. Another way to
identify systems is to notice which FS2 system's EXT front panel LED blinks when
you change any setting from a remote control device, such as the web browser.

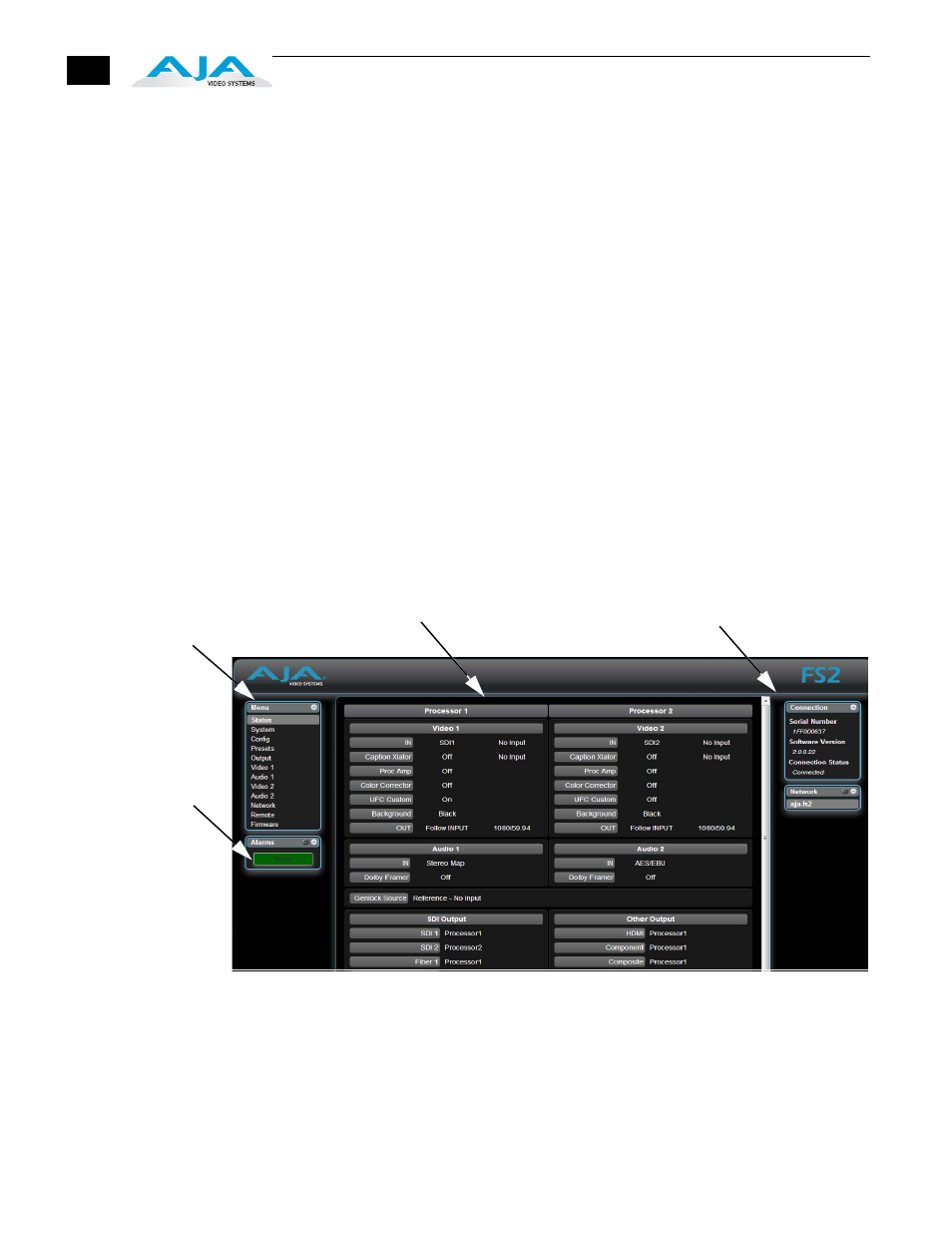

FS2 Web Interface, Main Status Screen
Menu of FS2 Screens:
Click a screen’s name
to display that screen.
FS2 Status and Menu Display Area
FS2 Alarms
System info, and FS2 Systems on the network
