28
Front Panel Description
The following topics present an overview of front panel controls and
indicators to help you get familiar with operating the FS2. For details about
using the controls with particular menus, please see Chapter 4: Menus.

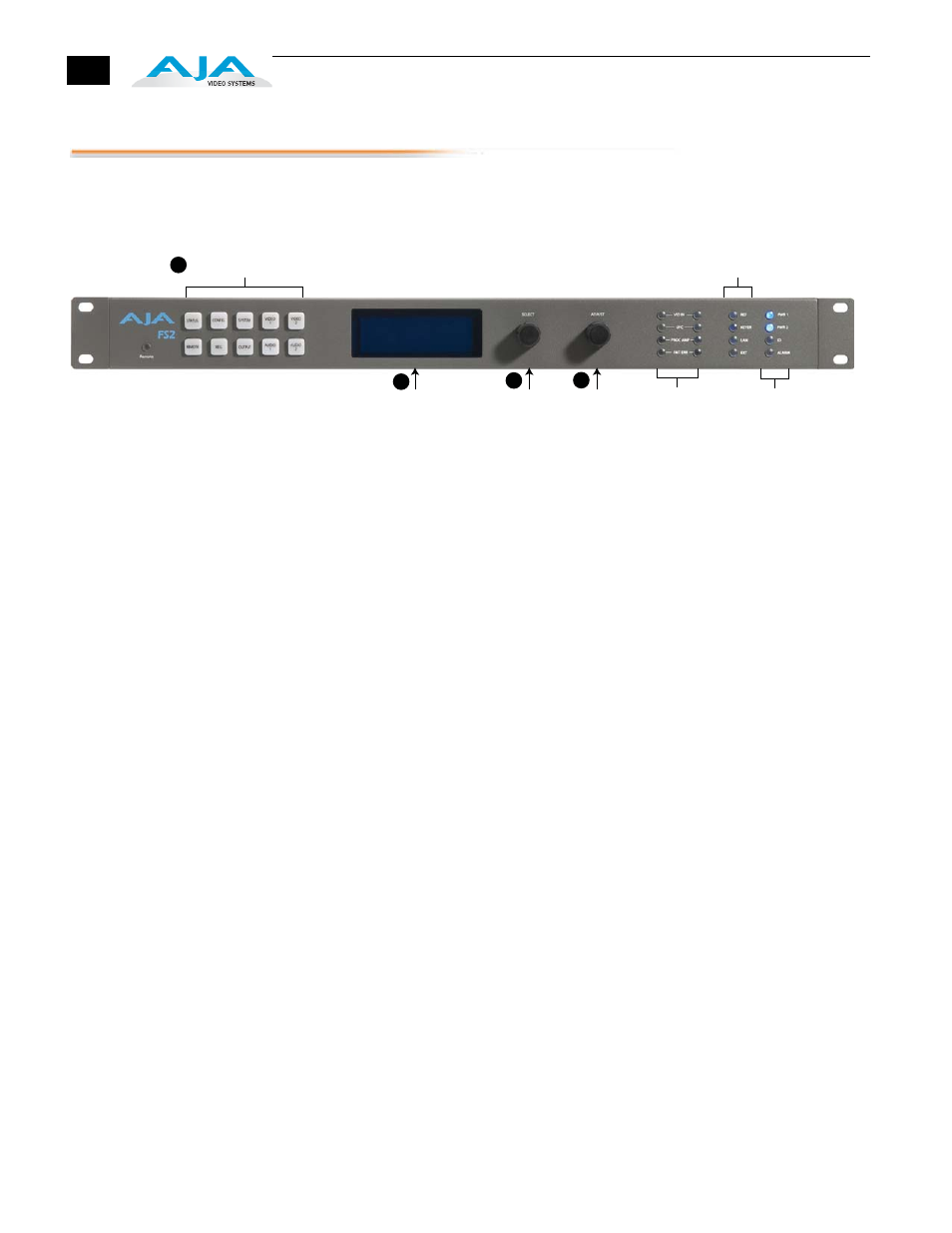

AJA FS2 Front Panel Controls and Indicators
Alphanumeric
Display The FS2's control system is designed to be quick and easy to use. The four-line
alphanumeric display shows menus that are numbered and grouped by
function. The menu groups are easily accessed using pushbuttons which
correspond one-to-one with the groups (one button per menu group). The
menu lines, which are 23 characters wide, display the following information:
• First line—parameter number and name.
• Second line—the editable value set for a parameter.
• Third line and fourth lines—current status, labels, or prompts.
When you edit a parameter containing multiple values, such as the IP address,
the value currently being edited blinks.
Operational Summary
The 10 front panel pushbuttons allow you to select display menu groups. The
two knobs allow you to change menus and set parameters within the menu
groups. These functions can be summarized as follows:
• Select a menu group: Press one of the ten pushbuttons.
• Scroll through menus in a group: Turn SELECT.
• Edit a menu parameter: Stop SELECT on the menu.
• Change a parameter value: Once the parameter is selected with SELECT,
turn ADJUST to set the value. Changes apply in a few seconds.
• To edit a multiple part parameter, such as the IP address, push the
ADJUST knob momentarily (the value blinks). To save the whole
parameter after editing, push ADJUST momentarily again.
• Coarse adjust a value: Hold down the menu group button (the button
turns blue) and turn ADJUST.
• Undo a change (restore previous setting): Push SELECT momentarily.
• Reset to factory default: Hold down ADJUST for 4 seconds.
Activity
Indicators:
VID In Ch 1/2
UFC Ch 1/2
Proc Amp Ch 1/2
FMT ERR Ch 1/2
Power and Status
Indicators:
Pwr 1
Pwr 2
ID
Alarm
Alphanumeric Display:
Line 1=Parameter
Line 2=Parameter value
Line 3=Status/Legend
Line 4=Status/Legend Select knob:
Scrolls and
selects menus;
Push to undo
changes.
Adjust knob:
Changes
selected value;
Hold down for
default value.
Menu Group Selection Buttons:
Press a button to select
a Menu Group in the display
3 4
Status Indicators:
Ref, Keyer, LAN, EXT
1
2
