Installing Optional Fiber Optic I/O Modules
The optional AJA Fiber Optic I/O modules are purchased separately from the
FS2. These AJA fiber modules work with the FS2:
• Single-channel LC connector modules
• Single-channel SC connector modules
• Dual-channel LC connector modules
Caution: ONLY AJA fiber optic I/O option modules may be inserted into
the FS2 Fiber slots. DO NOT USE fiber modules from other
manufacturers; they will damage the FS2 connectors and circuits.
Install the optional fiber I/O modules by inserting them into the rectangular
holes marked Fiber on the back panel with the electrical connectors facing
downward. Press gently but firmly until the modules seat in the inside
connectors. For additional installation and operation details, see the
instructions provided with the fiber modules.
Installing Optional Cards
Optional cards install in the two option slots on the FS2 circuit board. Access
them by removing the small top cover as explained and illustrated below:
1. Disconnect AC power.
2. Remove the four screws securing the small cover on top of the FS2.
3. Insert the cards into the card-edge connectors on the FS2 circuit board.
4. Insert the two supplied screws (with washers) through the holes in the cards
into the mounting standoffs. Tighten the screws, being careful not to
overtighten and damage the cards.
5. Replace the small cover and tighten down the screws holding it in place.

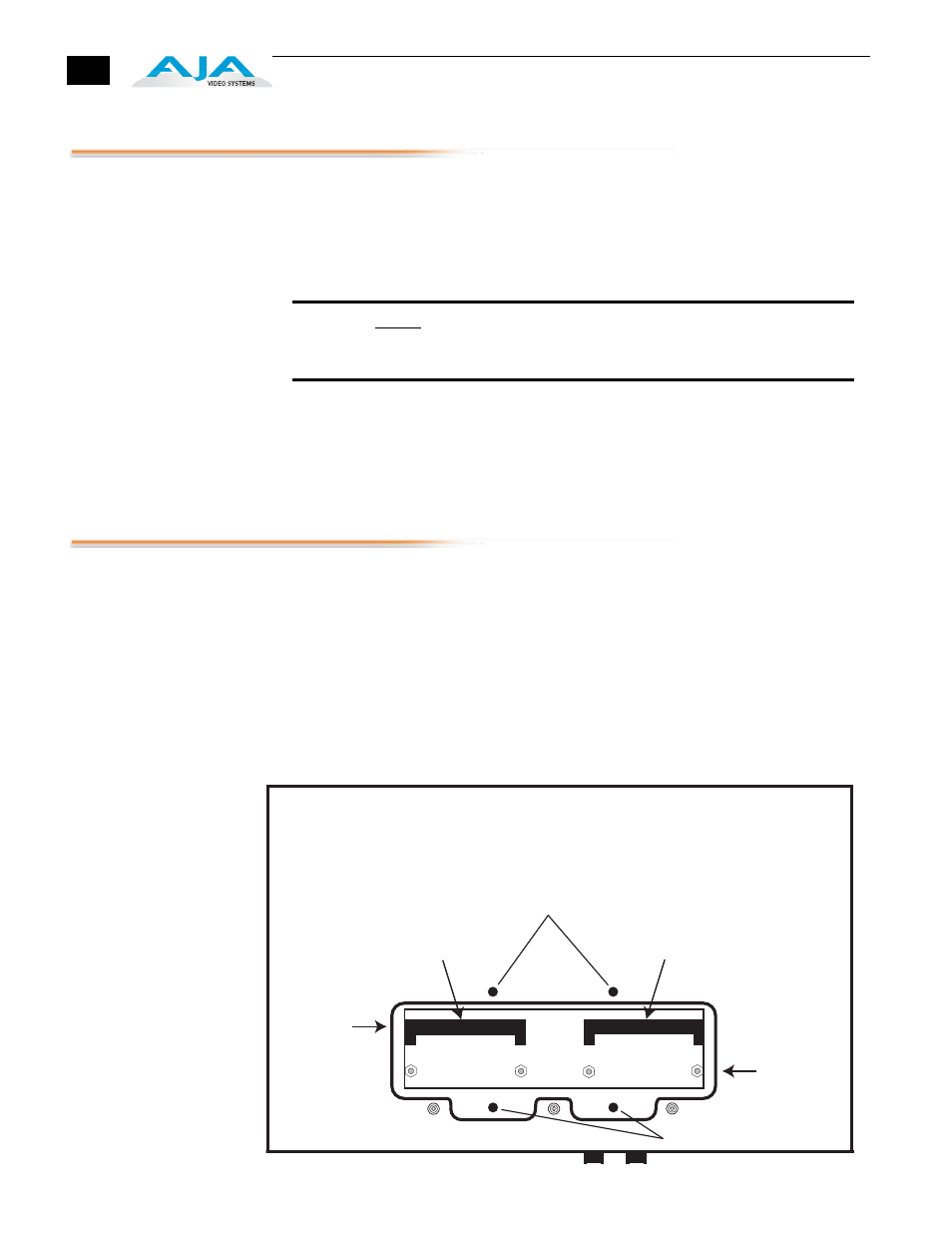

Option Card Installation
Remove cover screws
Remove cover screws
Standoffs
Connectors
FS2 Top View
Dolby E Decoder
Option Card Dolby E Encoder
(future) Option Card
