35 FS2 Installation and Operation Manual — Connector Descriptions

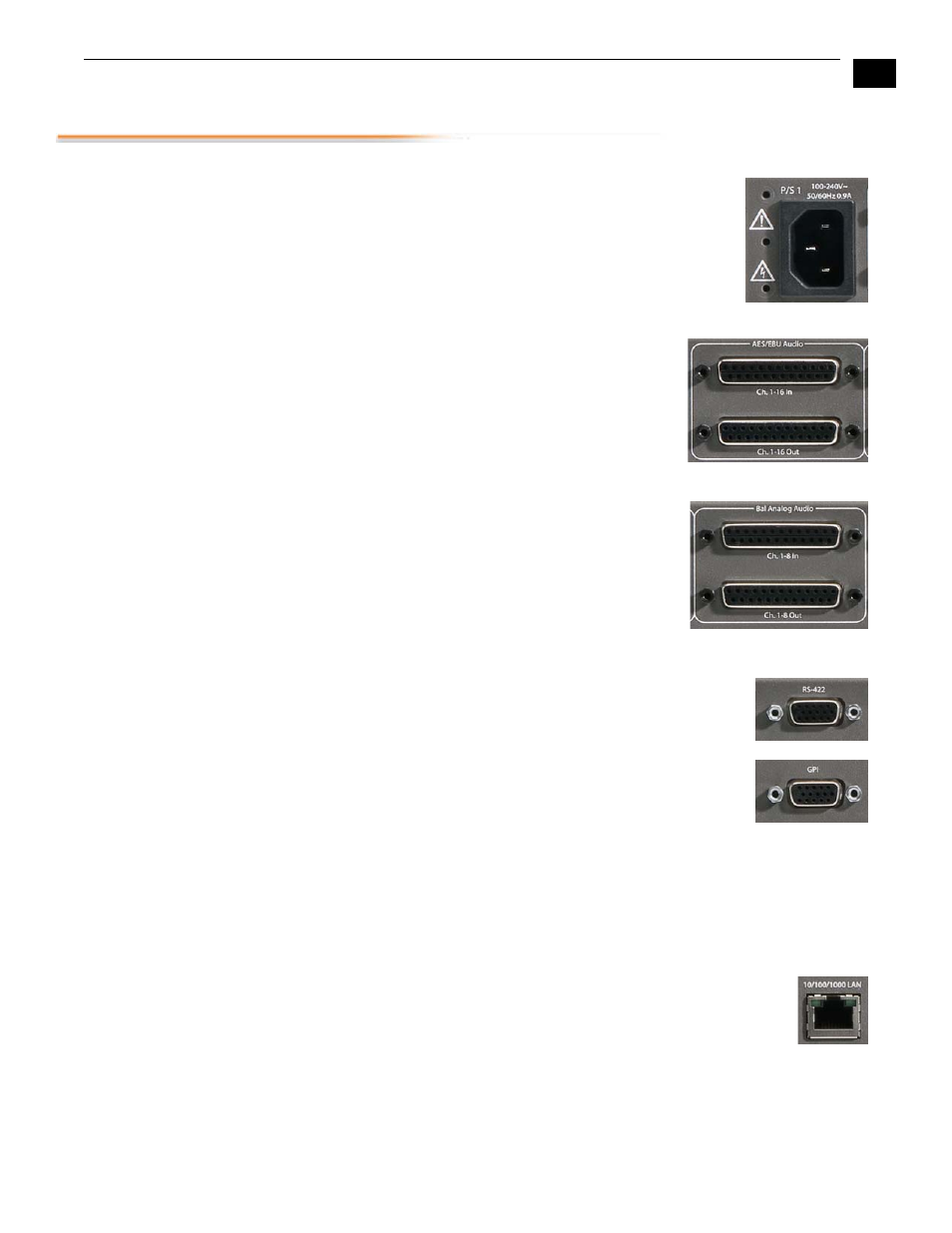

Connector Descriptions
AC Power Connectors
Two 3-pin grounded connectors provide AC power to the two
independent power supplies. The supplies are autosensing for
100–240 VAC, 50/60 Hz. Only one connection is required for
operation, but both connectors must be plugged into AC power
for redundant power protection.
AES/EBU Digital Audio In and Out
16-Channel, 24-bit AES Input and Output on separate
DB-25 connectors (Tascam pinout, see Appendix C).
Balanced Analog Audio In and Out
8 channel Balanced Analog Audio Input and Output on
separate DB-25 connectors (Tascam pinout, see
Appendix C ). Audio A/D and D/A converters are 24 bit.
RS-422 Port
This DB-15 connector is reserved for future use.
GPI Inputs and Outputs
The GPI DB-15 connector provides connection to external
equipment or circuits via an isolated TTL-compatible interface.
Four GPI inputs and four outputs are available. Appendix B
contains a pinout and specifications for the GPI connector.
Using the REMOTE menu group, you can program the actions of the GPI inputs
and outputs individually. Contact closures on the inputs can trigger a wide variety
of FS2 functions. Alarms or loss of video can trigger the GPI outputs.
LAN
An RJ45 connector provides an Ethernet 10/100/1000 port for
connection directly to a computer or to a LAN through an Ethernet hub
or switch.
