Menu Operation Examples
The following examples demonstrate typical menu operation. After this section,
each Menu Group is described in detail.
Status Pages These steps explain how to surf the STATUS menus.
1. Press the STATUS Menu Group button.
2. Turn the SELECT knob forward and backward to display the Status pages. The
display scrolls through the pages as you turn the knob. The Status displays simply
show the status of important FS2 operational parameters.

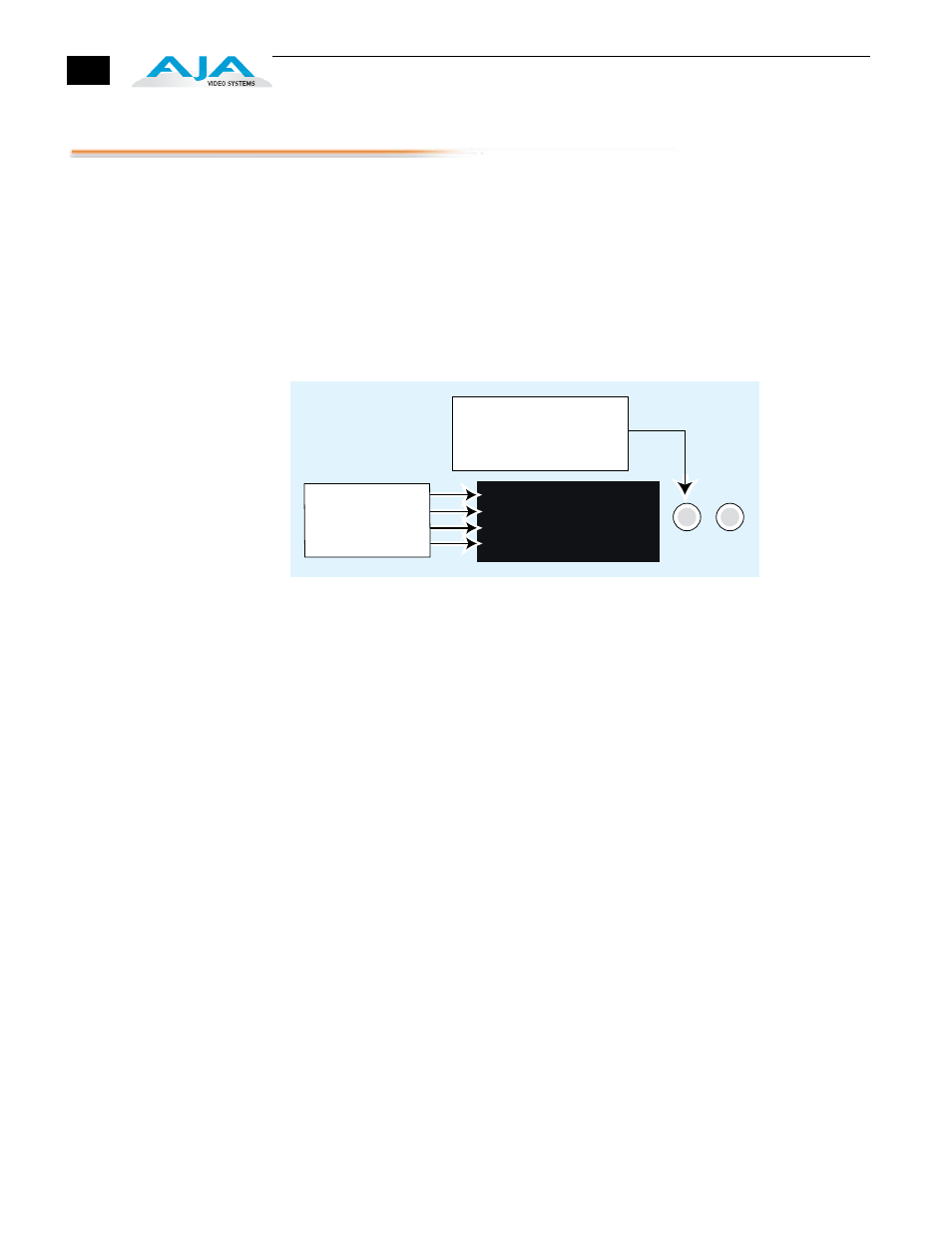

Press STATUS button and
turn SELECT knob to scroll
through Status pages.
Settings cannot be changed.
SELECT ADJUST
IN1 SDI1 1080i59
OUT1 525i59 AES/EBU
IN2 SDI2 1080i59
OUT2 525i59 AES/EBU Current Settings
Current Settings
Current Settings
Current Settings
