34

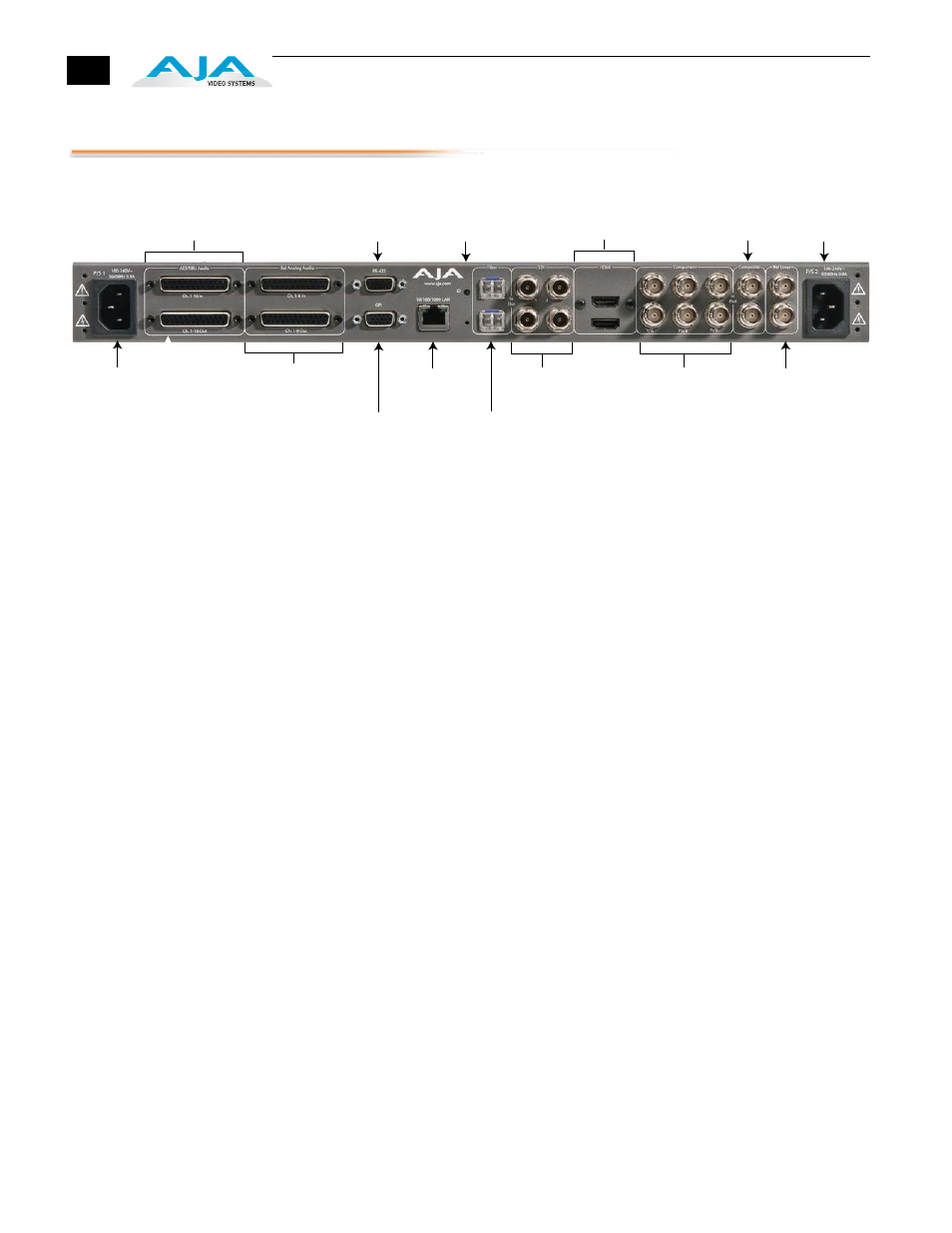

Rear Panel Description
Connectors The rear panel connectors are summarized below and described in detail in the
next section:
P/S 1 and P/S 2: AC power connectors.
AES/EBU Audio: Digital audio input/output DB-25 connectors (16 channels).
Analog Audio Ch.1-8 In/Out: Analog audio in/out via DB-25 (8 channels).
RS-422: DB-15 connector reserved for future use.
GPI: General purpose interface DB-15 connector providing dual isolated
TTL I/O.
10/100/1000 LAN: RJ45 Ethernet local area network connector.
SDI Fiber In/Out (optional): Digital video with embedded audio. Optional
fiber modules provide 1 or 2 fiber inputs and 1 or 2 fiber outputs.
SDI In/Out: Digital video with embedded audio, 2 BNC inputs/outputs.
HDMI In/Out: HDMI digital audio/video input/output. Also supports DVI
digital video computer signals with user-supplied DVI-HDMI adapters.
Component In/Out YPbPr/RGB Video: Component video (or composite with
v 1.1 firmware) input/output BNCs.
Composite In/Out: NTSC/PAL video input/output.
Ref Loop: 2 BNCs, passive loop (must be terminated if not looped).
Serial Digital
In/Out BNC
(3G/SD/HD)
Composite
In/Out BNC
10/100/1000
RJ45 Ethernet
LAN Connector
GPI 15-pin
DB-15F Connector
ID
LED
RS422 Machine
Control 15-pin
DB-15F
(Future Upgrade)
External Reference
I/O with looping
BNC connectors.
Use 75-ohm terminator
on unused connector
or downstream equipment.
AC Power
Socket #2
Autosensing
100 to 240VAC
50/60Hz
AC Power
Socket #1
Autosensing
100 to 240VAC
50/60Hz
Component
YPbPr and
RGB or
Composite (v1.1)
In/Out
BNC
Analog Audio In/Out
Channels 1 through 8
DB-25F Connectors
(uses Tascam-style
cable)
AES/EBU Digital
Audio In/Out
Channels 1 through 16
DB-25F Connectors
Serial Digital
Fiber In/Out
(3G/SD/HD)
HDMI
In/Out
