59 FS2 Installation and Operation Manual — Menu Operation Examples
Simple Menus:
Config Format
Alarm Filters These steps explain how to surf and change simple menus, such as the Power Supply
Alarm Filters.
1. Press the CONFIG Menu Group button.
2. Turn the SELECT knob to access menu 5 Pwr Supply Alarm. The default alarm setting is
Normal.
3. Turn the ADJUST knob one click clockwise to change the setting to Suppress, which
turns off the alarm so that it will never come on.
4. Turn the SELECT knob clockwise again to access menu 6.1 Vid1 Format Alarm.
Changing menus confirms the new Pwr Supply Alarm setting.
5. Now change the Vid1 setting, using the ADJUST knob.
6. Continue by turning SELECT one click to access the 6.2 Vid2 Format Alarm setting and
again one click to access the 7 Reference Alarm Alarm setting. Change the settings
using the ADJUST knob, if you wish.

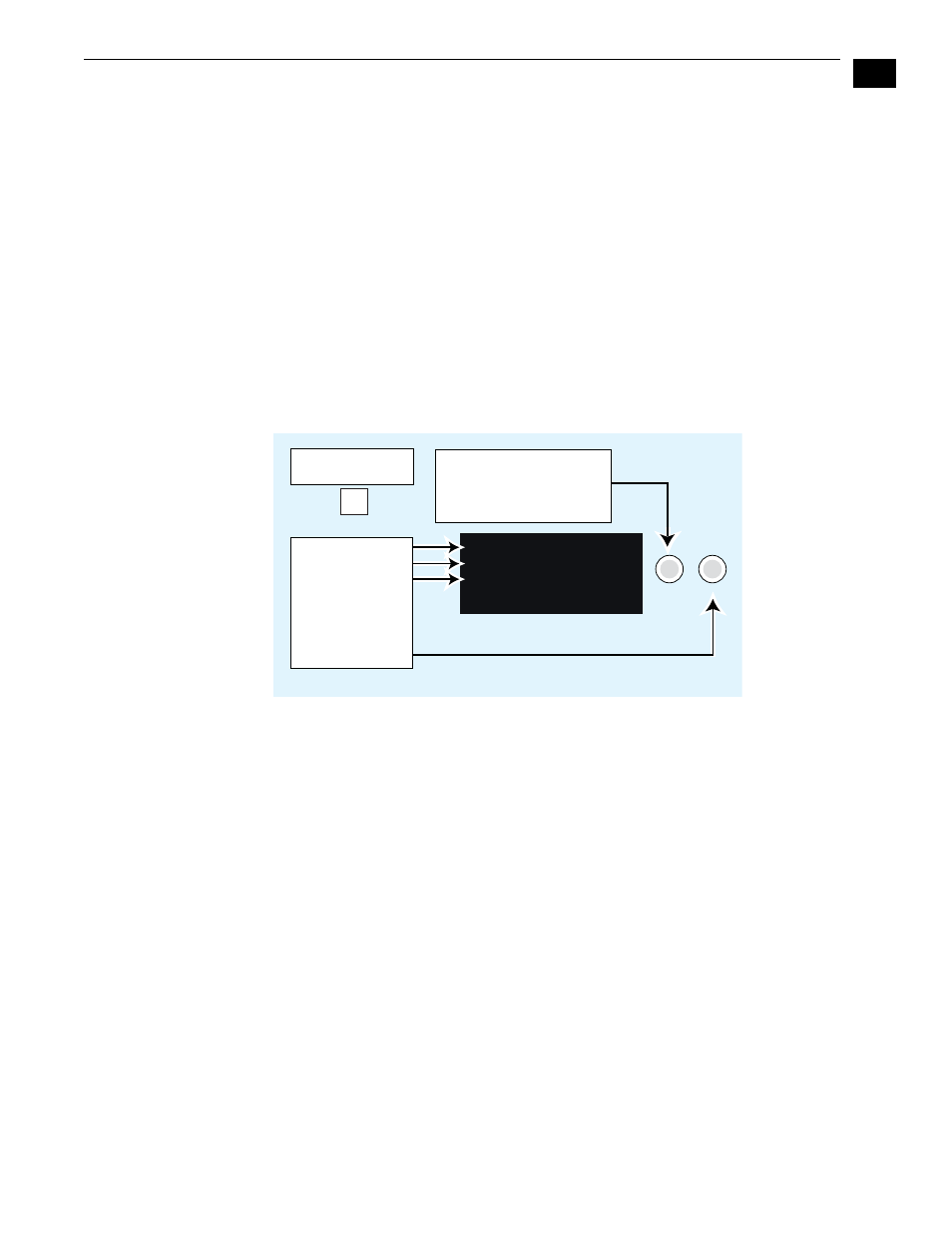

Turn the SELECT knob to
scroll through parameter
menus.
SELECT ADJUST
5 Pwr Supply Alarm
Normal
Press the
CONFIG button
PS Alarm Menu
Current Setting
Labels (none)
Turn the ADJUST
knob to change
settings.
CONFIG
