ProcAmp These steps explain how to surf and change multiple parameter menus, such as the
Vid1 ProcAmp settings.
1. Press the VIDEO 1 Menu Group button.
2. Turn the SELECT knob as necessary to display menu 11.0 ProcAmp.
3. Turn the ADJUST knob to change the value setting from OFF (default) to ON.
4. Turn the SELECT knob clockwise to access menu 11.1 ProcAmp Gain and set the
Gain as desired using the ADJUST knob.
5. Turn the SELECT knob one click clockwise to confirm the setting and advance to the
11.2 ProcAmp Black menu. Turn ADJUST to set the black level.
6. Turn the SELECT knob clockwise again one click to confirm the setting and advance
to the 11.3 ProcAmp Hue menu. Turn ADJUST to set the hue.
7. Turn the SELECT knob clockwise again one click to confirm the setting and advance
to the 11.4 ProcAmp Sat menu. Turn ADJUST to set the saturation.

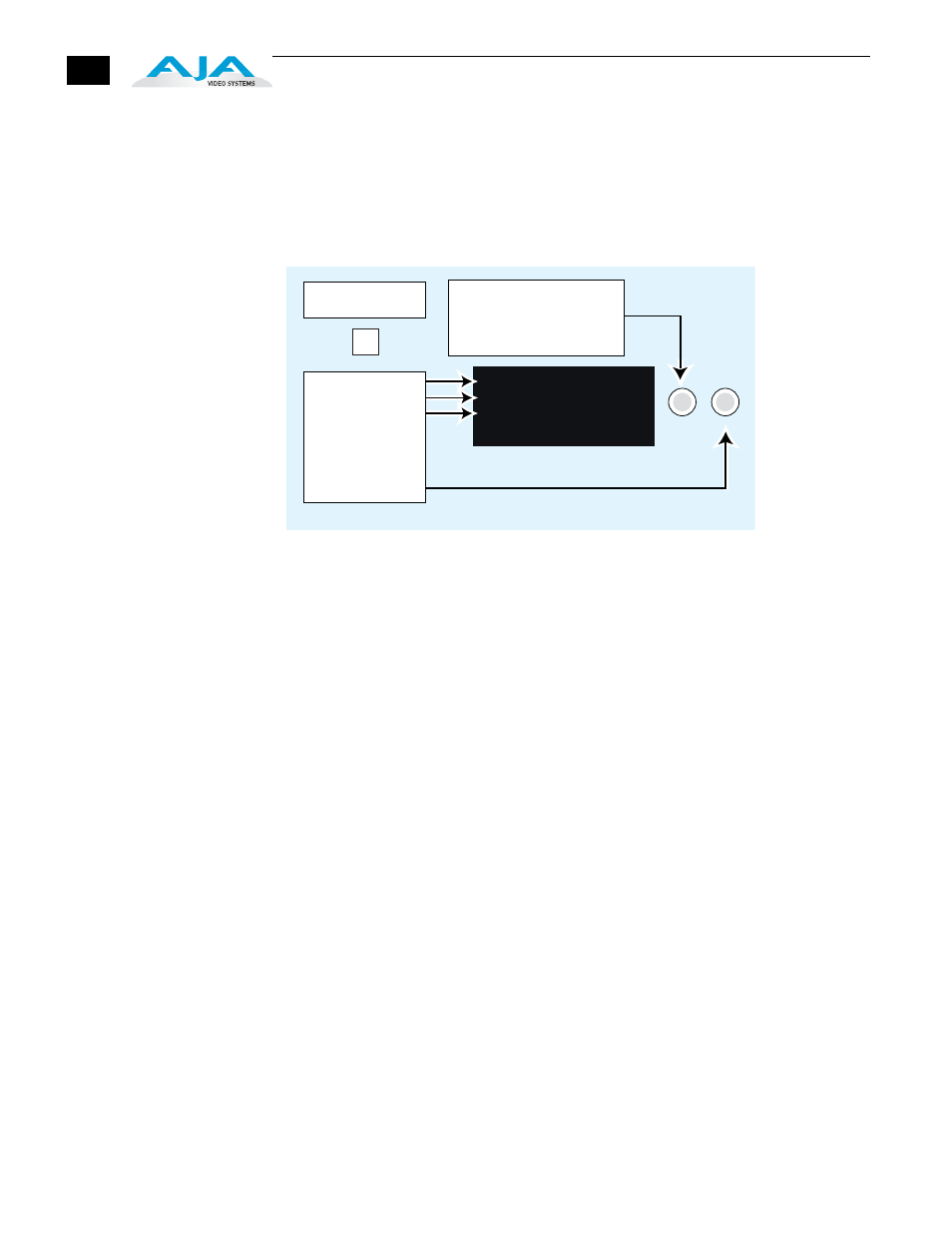

Turn SELECT knob to scroll
to menu 11.0 ProcAmp On/Off.
Use ADJUST to turn On. Turn
SELECT again to select/adjust
Gain, Black, Hue, and Sat.
SELECT ADJUST
11.0 ProcAmp
On
SDI 1 1080i59.94
Press the
VIDEO 1 button
Parameter Menu
Current Settings
Labels
Change setting
by turning the
ADJUST knob.
VIDEO
1
