149 FS2 Installation and Operation Manual — Output Screen
SDI1 Video
Output SDI1 Video Out selects which video processor output is sent out the SDI 1 output. The
default is to send the output of Processor 1 to SDI1 Out. The Proc1+Proc2 selection
multiplexes two separate 1.5 Gb HD video signals from both video processor outputs
into a Dual Stream 3G SDI output as illustrated below. This selection will only make
valid video if both video processors are set to output the same HD video format and
that format is not 1080p50/60.

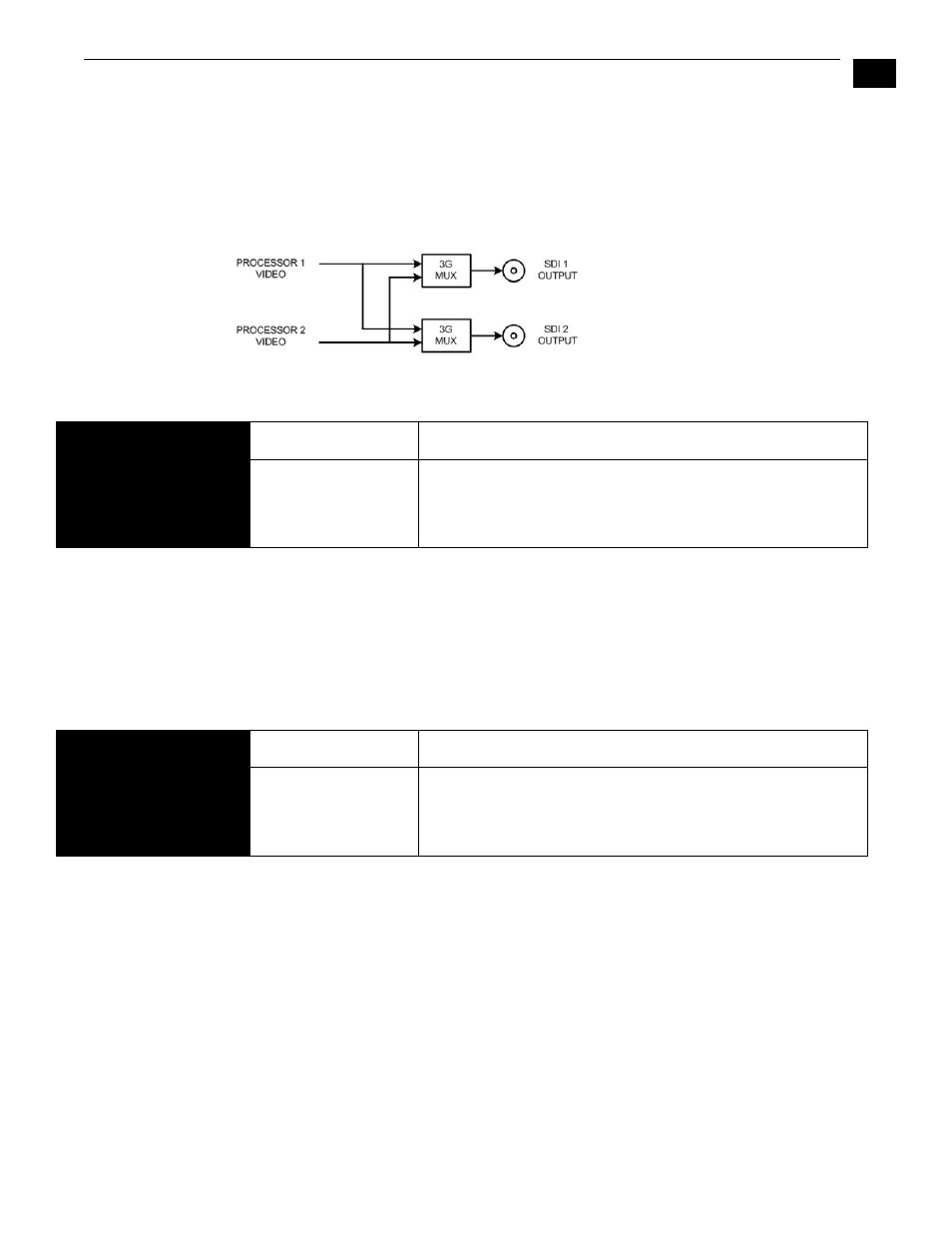

Dual Stream 3G Mode Output
SDI2 Video Out SDI2 Video Out selects which video processor output is sent to the SDI2 output. The
default is to send the output of Processor2 to SDI2 Out. The Proc1+Proc2 selection
multiplexes two separate 1.5 Gb HD video signals from both video processor outputs
into a Dual Stream 3G SDI (muxed) output. This selection will only produce valid video
if both video processors are set to output the same HD video format and that format
is not 1080p50/60. See SDI1 Video Output for an illustration.
(1.1) SDI1 Video Out Selections Selection Descriptions
Processor1 (default)
Processor2
Proc1+Proc2
Sends the output of Processor 1 to the SDI1 output.
Sends the output of Processor 2 to the SDI1 output.
Sends multiplexed Proc 1 & 2 to the SDI1 output (Dual Stream
3G).
(1.2) SDI2 Video Out Selections Selection Descriptions
Processor1
Processor2 (default)
Proc1+Proc2
Sends the output of Processor 1 to the SDI2 output.
Sends the output of Processor 2 to the SDI2 output.
Sends multiplexed Proc 1 & 2 to the SDI2 output (Dual Stream
3G).
