Video 1 & 2 Screens
The following descriptions explain the Video 1 and 2 browser screens. Because the
selections for the video processors are identical, both are described here.

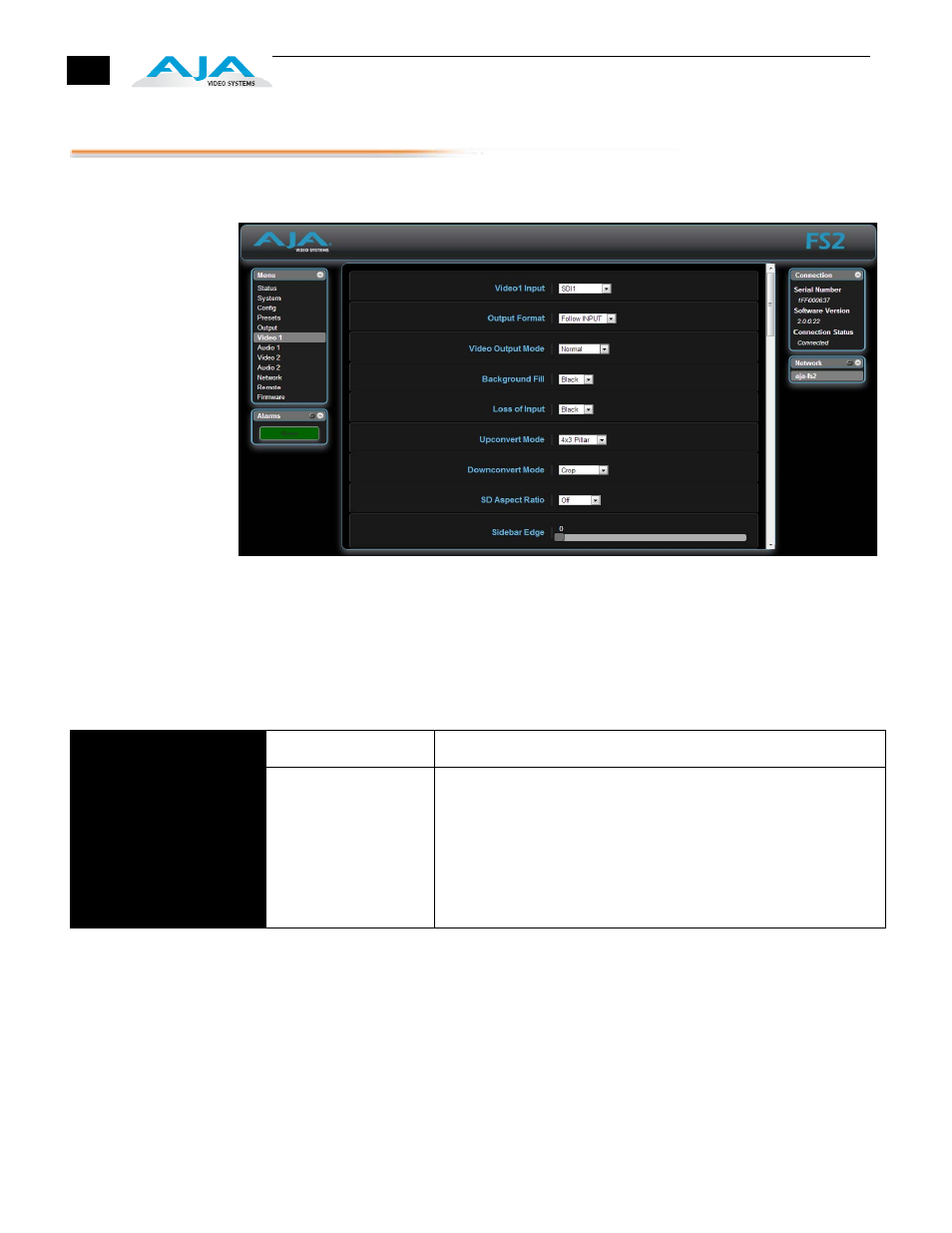

FS2 Web Interface, Video 1 & 2 Screens
Video Input The Video Input setting performs input video source selection for the selected Video
Processor (1 or 2). Multiple input sources are available at the connectors on the FS2
rear panel, but the active input source routed to the selected Video Processor is the
one you select here.
Notes:
1. Source Memory—Changing the Video Input selection automatically selects new
values for Proc Amp settings. Each video source remembers its own Proc Amp
settings. This is referred to as Source Memory.
2. Audio Source Memory— If Audio Follow Video is set to On, changing the Video
Input selection also automatically selects new values for all audio parameters
associated with Audio Follow Video (see the list in the description of Audio Follow
Video). Audio Source Memory is enabled only when Audio Follow Video is set to On.
(1) Video Input Selections Selection Descriptions
SDI1 (default)
SDI2
SDI DualLink
Fiber1
Fiber2
Fiber DualLink
HDMI
Composite
Component
Select SDI1 as the input source.
Select SDI2 as the input source.
Select SDI DualLink mode, linking both SDI inputs as the input source.
Select Fiber1 as the input source.
Select Fiber2 as the input source.
Select Fiber DualLink mode, linking both Fiber inputs as the input sources.
Select the HDMI input as the input source.
Select Composite as the input source.
Select Component as the input source.
