Alarm Configuration Screen
You can pop open the Alarm Configuration display at any time and on any screen by
clicking the display button in the upper right corner of the Alarms panel. The Alarm
Configuration display provides control over these alarm settings: Power Supply
Alarm, Vid 1 Format Alarm, Vid 2 Format Alarm, and Reference Alarm. To close the
window, press the ESC key, or click the X in the upper right corner.

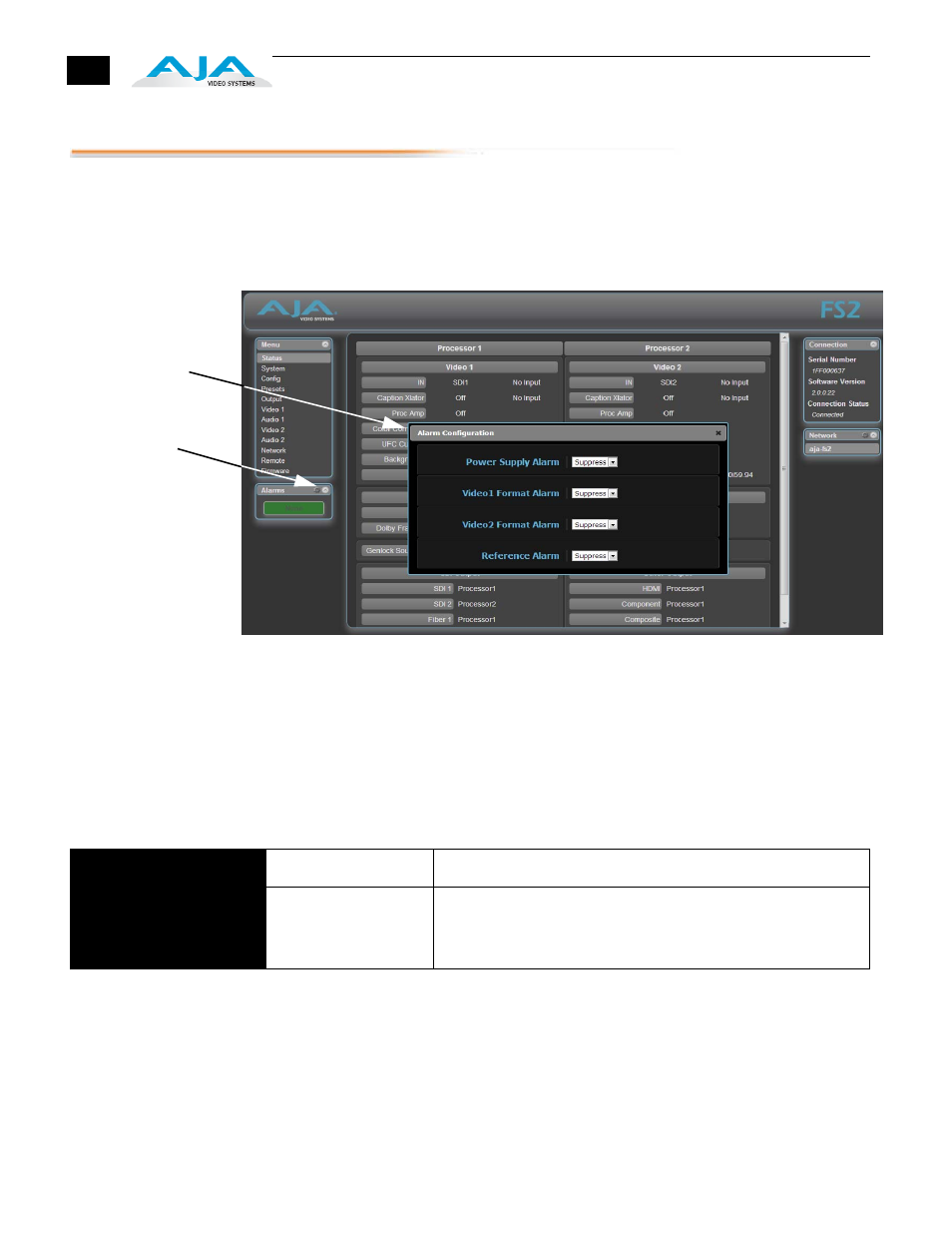

FS2 Web Interface, Alarm Configuration Screen
Power Supply
Alarm Power Supply Alarm controls how the FS2 alarm responds to power supply
disconnection or failure. By default (Normal) the alarm is triggered anytime either of
the two internal power supplies fails or is disconnected from a power source
(becomes unplugged). If the FS2 will be connected using only one power cord and
supply, you can suppress the alarm. The ADJUST knob changes the setting, and the
change is automatically saved.
Vid1 Format
Alarm Vid1 Format Alarm indicates incompatible input/output formats in the Video 1
Processor. When set to Normal (default), an alarm is triggered whenever the
selected input video signal format of Video Proc 1 is incompatible with the selected
output format (refer to the matrix of inputs and compatibilities presented in Chapter
2). If you want the FS2 alarm to only trigger on hardware failures, you can suppress
FS2 Alarms
Alarm Configuration
popup display
display button
(gear icon)
(5) Power Supply Alarm Selections Selection Descriptions
Normal (default)
Suppress
Alarm triggers if either internal power supply experiences a failure or is
disconnected from mains power.
Alarm will not be triggered by a power supply failure or disconnection
from power.
