61 FS2 Installation and Operation Manual — Menu Operation Examples
Multiple Field
Parameters: IP
Address These steps explain how to surf and change multiple field parameter menus, such as
the IP Address settings, where there are multiple fields to set within the value.
1. Press the CONFIG Menu Group button. The Config menus appear.
2. Turn the SELECT knob clockwise to access the 2.1 IP Config menu. Turn the ADJUST
knob to change the setting to Static Addr. This setting allows you to manually set the
IP address in the following steps.
3. Turn the SELECT knob clockwise one click to access menu 2.2 IP Address. The current
IP address appears on the second line. For example: 10.2.42.8
4. Push the ADJUST knob momentarily to highlight the first field, which is the octet
(group of numbers) to the left of the first period. The numbers blink to indicate they
are ready for editing.
5. Turn the ADJUST knob to change the blinking field value.
6. Turn the SELECT knob to highlight the next field, a group of numbers to the right of
the first period. The field will blink when they are ready for editing.
7. Turn the ADJUST knob to change the blinking field value. For coarse adjustment of
wide-ranging values, hold down CONFIG and turn ADJUST.
8. Repeat this process of selecting fields and changing them until all fields have been
changed as desired.
9. Push the ADJUST knob quickly to confirm all settings. Alternatively, you can scroll
counterclockwise back through the fields, stopping on any of them to change them.
They must be blinking before they can be changed.
Notes:
• To begin editing the first field in the parameter, push ADJUST momentarily.
• To confirm (save) edits, push the ADJUST knob momentarily again. This saves
the edits and exits the edit mode.
• To undo edits to all of the fields before the changes are confirmed, push the
SELECT knob. This returns all fields to their previous settings.
• To reset the entire parameter to the factory default value, push in and hold
down the ADJUST knob for at least 4 seconds.
Next, all menus in the Menu Groups are described in detail.

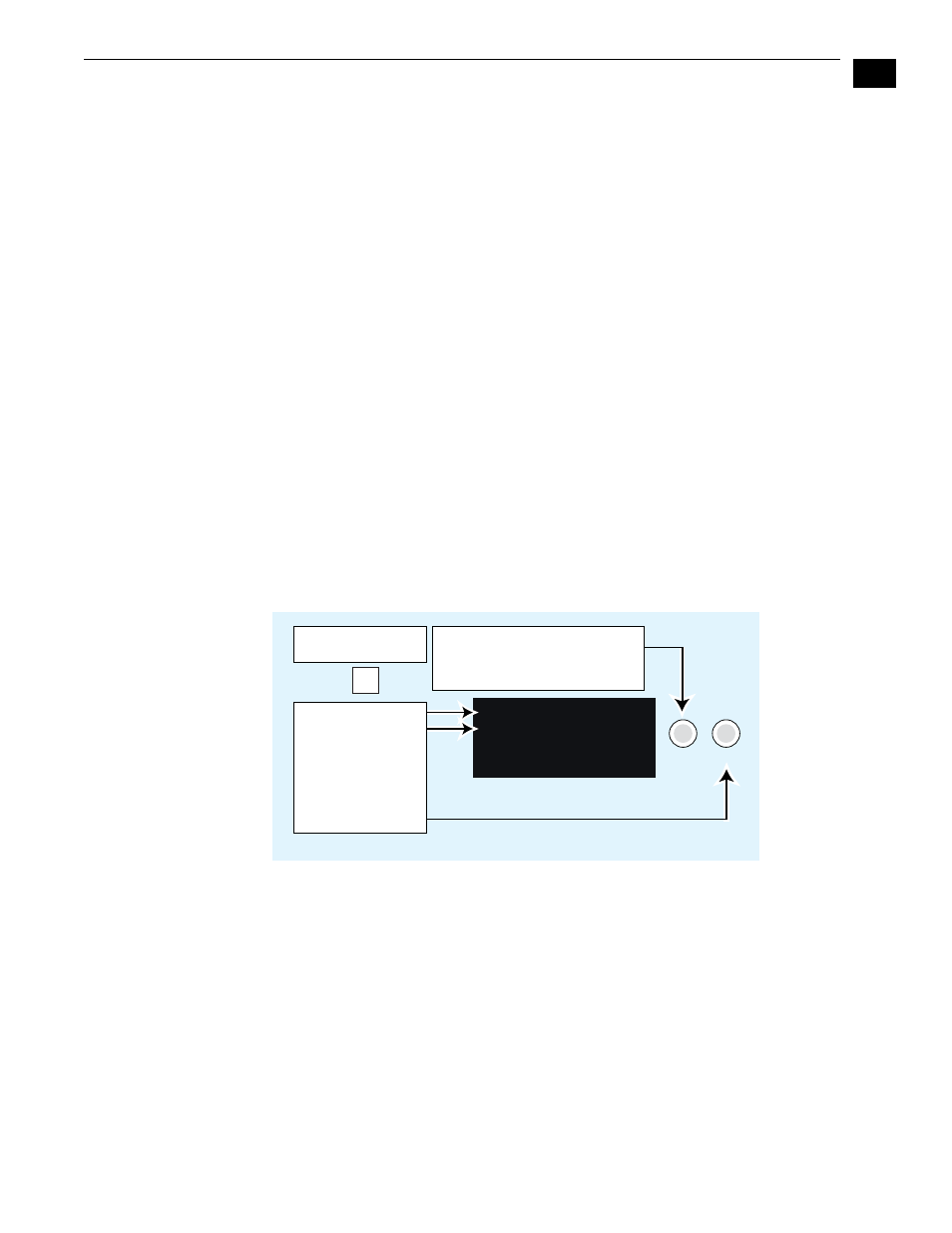

Turn SELECT to scroll to parameter
menu 50.2 IP Address.
When editing params, turn SELECT
to advance fields.
SELECT ADJUST
2.2 IP Address
192.168.0.2 Parameter Menu
Current Setting
Push ADJUST to
edit the first field.
Turn ADJUST
to change values.
Push again to save.
Select the CONFIG
Menu Group button
CONFIG
