Chapter 6
Integrated Motion on the EtherNet/IP Network Applications for PowerFlex 755 AC Drives
Using an Incremental
Encoder with an MPx Motor
The PowerFlex 755 drive supports incremental encoder feedback when using a
Rockwell Automation MP

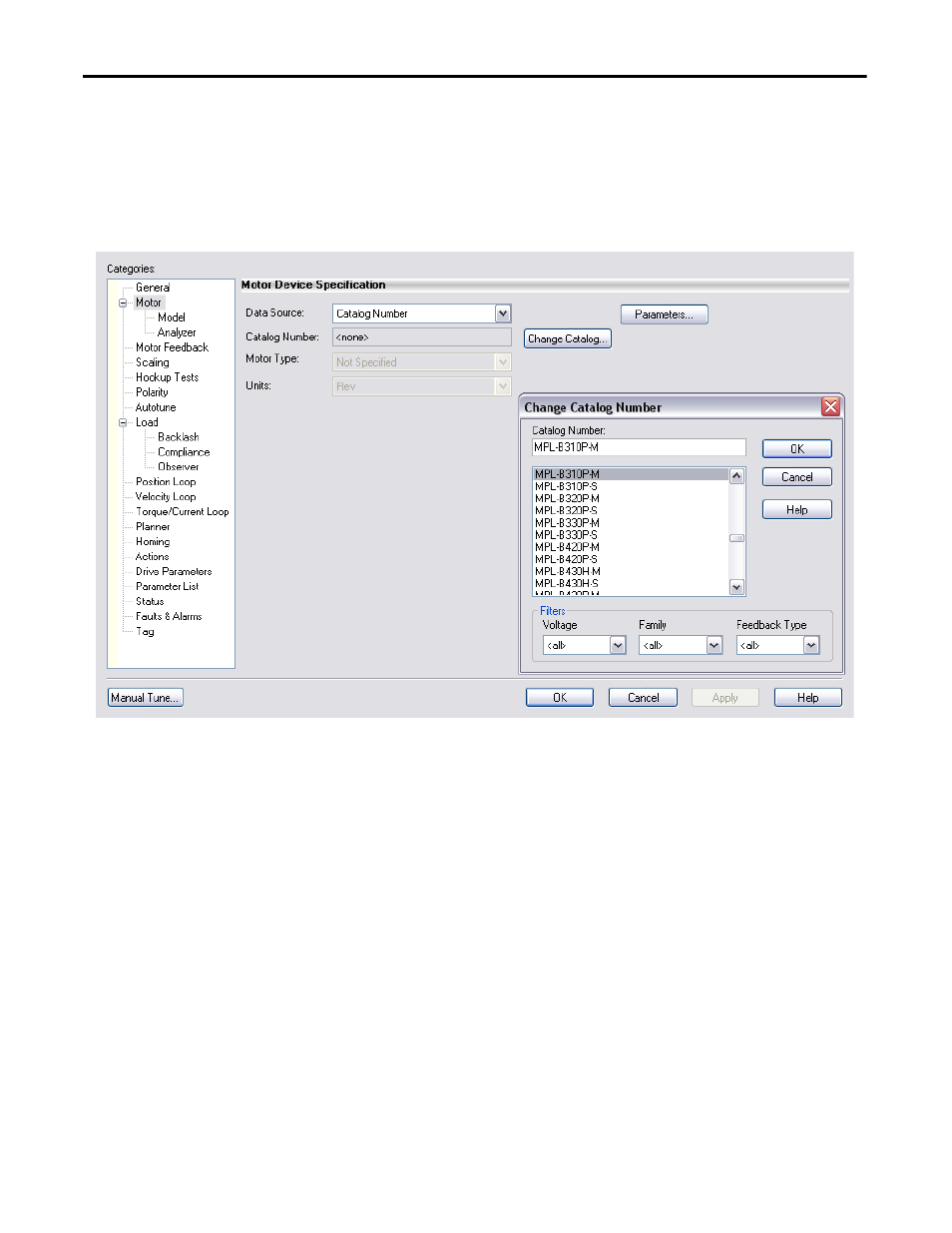

x motor. However, the Motor Device Specification
category in the Axis Properties configuration for the Logix Designer application
does not currently support MP-Series™ motors with incremental feedback catalog
numbers, as shown below. Only MP-Series motors with the suffix –M (Stegmann
Multi-turn Absolute), or –S (Single Turn Absolute) motors are supported.
