Chapter 2 Feedback and I/O
Example
For parameters that are not configurable through the parameter properties’
“Value” tab pull-down graphic user interface (GUI), you can utilize the “Numeric
Edit” tab to alternatively configure the digital output for a desired function.
Below is an example of a PowerFlex 755 drive utilizing a PowerFlex 750-Series
option module’s digital output “Sel” parameter being configured such that the
output energizes when an alarm is present on one of the drive’s inverter section.

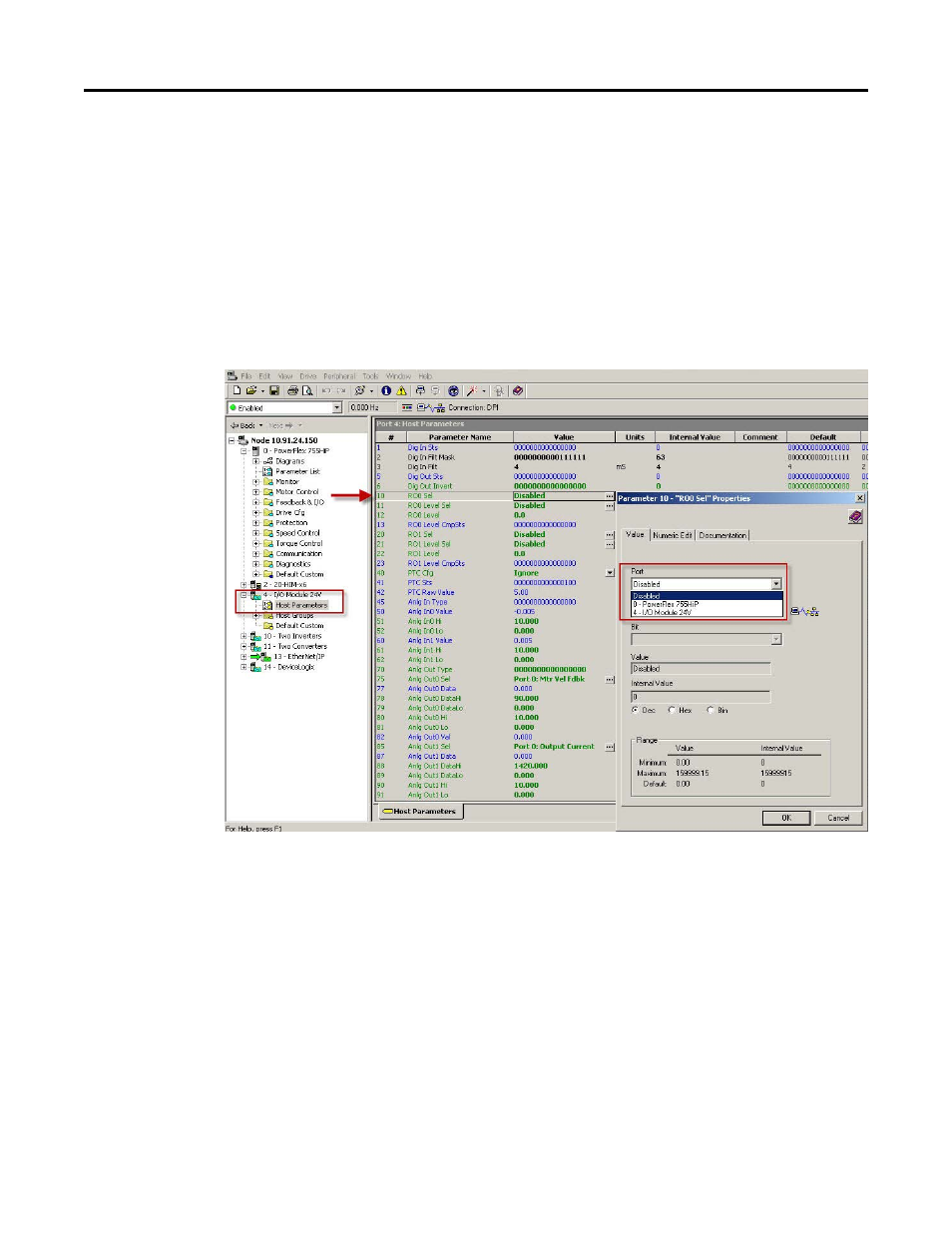

You can see below that you cannot select Port 10, Inverter section in the Value tab
pull-down GUI.
